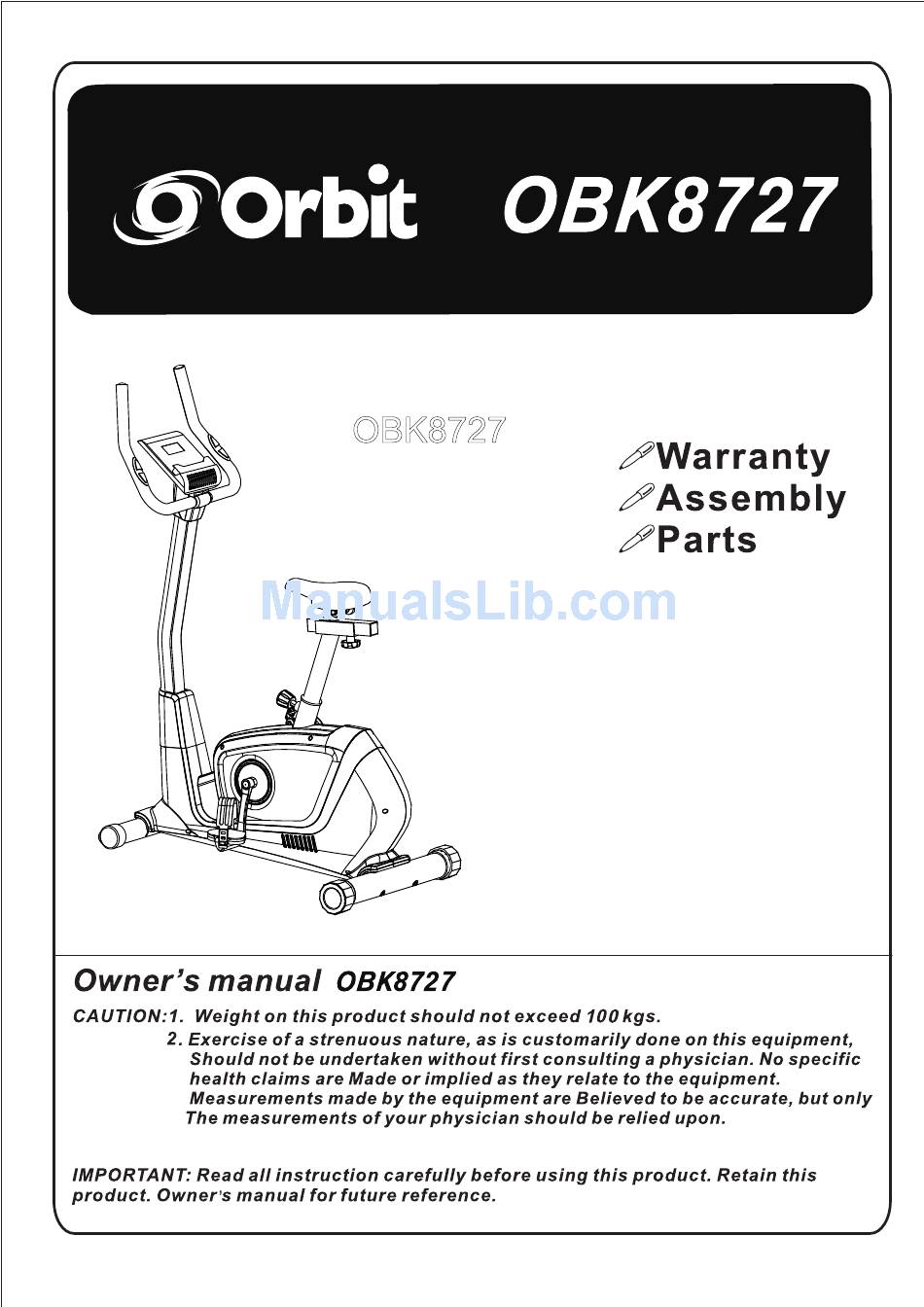

- Page 1 OBK8727...
-
Page 2: Before You Start
Before You Start Thank you for purchasing this Magnetic Bike! For your safety and benefit, read this manual carefully before using the machine. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. Assembly instructions are described in the following steps and illustrations. IMPORTANT SAFETY NOTICE PRECAUTIONS BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE... -
Page 3: Exploded Diagram
EXPLODED DIAGRAM... -
Page 4: Parts List
PARTS LIST Parts Parts Description Description ntity ntity Main Frame Allen Bolt M8XL72 Round End Cap 21L/R Pedal (L/R) Handlebar Foam Grip 22L/R Crank(L/R) Computer Rear End Cap Handlebar Rear Stabilizer Front Handlebar Cover Allen Bolt M8XL90 Arc Washer Allen Bolt d8X2 XΦ25 XR39 M8X15 Pop-pin Knob... -
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 1. Attach the front Stabilizer (18) to the Main frame (1) with the Allen bolts (20) and Arc washers (19) 2. Fix the rear Stabilizer (24) to the Main frame (1) with the Allen bolts (25) and Arc washers (26) as shown. - Page 6 STEP 3 Attach the Pedals (21L/R) to the Cranks (22L/R) respectively, viewed from the rider’s exercising position. Always make sure the Pedals are securely tightened before any exercise. Note: Both pedals are labeled L for left and R for right. To tighten turn the Left pedal counterclockwise and the Right pedal clockwise.
- Page 7 STEP 5 Feed the Pulse sensor wires (8) out of the Handlebar post (11) through the computer bracket on the top. Attach the Handlebar (5) to the Handlebar post (11), secured with the Allen bolts (7) and Spring washers (36) as shown. Finally, attach the front Handlebar cover (6) to the Handlebar.
-
Page 8: Warm-Up And Cool-Down
WARM-UP and COOL-DOWN A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week. WARM-UP The purpose of warming up is to prepare your body for exercise and to minimize injuries.
