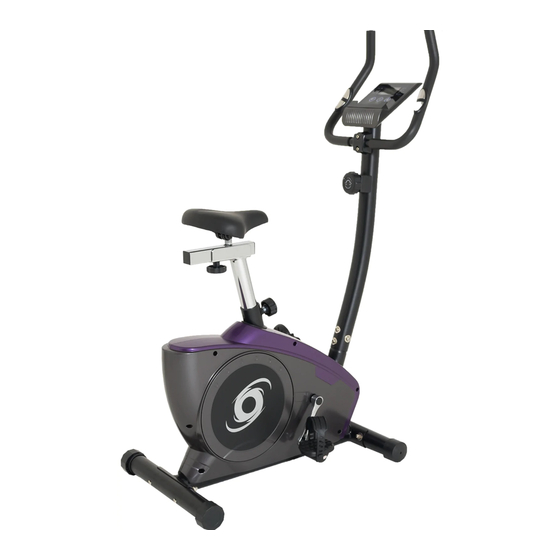

Owner's Manual OBKB612
CA UTION:1. Weight on this product should not exceed 100 kgs.
2.
Exercise of
Should not be undertaken without first consulting
health claims are Made or implied as they relate to the equipment.
Measurements made by the equipment are Believed to be accurate, but only
The measurements of your physician should be relied upon.
IMPORTANT: Read all instruction carefully before using this product. Retain this
product. Owners manual for future reference.
OBK8612
a
strenuous nature, as is customarily done on this equipment,
#Warranty
#Assembly
#Parts
a
physician. No specific
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Orbit OBK8612
Summary of Contents for Orbit OBK8612
- Page 1 OBK8612 #Warranty #Assembly #Parts Owner's Manual OBKB612 CA UTION:1. Weight on this product should not exceed 100 kgs. Exercise of strenuous nature, as is customarily done on this equipment, Should not be undertaken without first consulting physician. No specific health claims are Made or implied as they relate to the equipment.
-
Page 2: Assembly Advice
ASSEMBLY ADVICE Dear Customer, Congratulations on your purchase. Please read this instruction manual very carefully before using this item. You will find important information regarding safety of your UPRIGHT BIKE. Note the following precautions before assembling or operating the machine. ASSEMBLY ADVICE Carefully read and understand the Assembly Instructions: •... - Page 3 WARNINGS READ BEFORE USE Before using this Equipment, Obey the following warnings: • Keep children and pets away from the UPRIGHT BIKE at all times Children should be supervised to ensure that they do not play with the appliance. DO NOT leave unattended children in the same room with the machine. •...
-
Page 4: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do the necessary tasks. Equipment must be regularly examined for damage and wear. The owner is responsible to make sure that regular maintenance is done. Worn or damaged components must be repaired or replaced immediately. - Page 5 MAINTENANCE INSTRUCTIONS TROUBLESHOOTING No Display / Partial Display / Unit will not Turn On: • Check batteries in Console, replace if required, ensure connection to speed sensor is good. • Connection should be secure and undamaged. Replace adapter or connection at unit if either are damaged.
- Page 6 • Frame, Covers, Seat, Seat Post, Seat Slider, Crank Arms, Pedals (with Foot Strap), Handlebar, Adjustment Handles, Belt(or Chain), Axle, Flywheel, Console, Data Cable, Brake or Magnet. See Owners Manual for Part Names and Numbers. Contact the Orbit Fitness Customer Service Department at: Email: service@orbitfitness.com.au Phone: (08) 6241 3050 Address: 28 Fellowship Road Gnangara, Western Australia 6077 Website: www.orbitfitness.com.au...
- Page 7 Before You Start Thank you for purchasing this Magnetic Bike. For your safety and benefit, read this manual carefully before using the machine. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. Assembly instructions are described in the following steps and illustrations.
-
Page 8: Exploded Diagram
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. Maximum user’s weight: 100KG EXPLODED DIAGRAM... -
Page 9: Parts List
PARTS LIST Description Description Main Frame Chuck Cover Front Stabiliser Inner Hex Bolt Roller End Cap Spring Washer Rear Stabiliser Flat Washer Adjustable End Cap Handlebar Carriage Bolt Handlebar Wire Screw Foam Grip Arc Washer Screw Acorn Nut End Cap 10L/R Crank Pr 1... - Page 10 ASSEMBLY INSTRUCTIONS PREPARATION: Before assembling, make sure that you will have enough space around the item. Use the present tooling for assembling. Before assembling, please check whether all needed parts are available. It is strongly recommended that this machine to be assembled by two or more people to avoid possible injury.
- Page 11 STEP 3 While another person holds the u pright post (17) near the main frame (1), connect the extension wire (15) to the sensor wire (13). Next, connect the tension controller (14) to the tension control cable (12) (See drawing A). Do not pinch the wires and cables. Insert the upright post (17) into the main frame (1). Attach the upright post with four screws (16) and four arc washer (8).
- Page 12 STEP 5 Connect the handlebar wire (25) and the extended wire (15) to the wires of the computer (29), then attach the computer (29) onto the computer bracket of the upright post (17) with the screw (27). STEP 6 Assemble the horizontal post (36) to the saddle post (31), and fasten it by the flat washer (33) & knob nut (32), and then insert the saddle (37) to the post of the horizontal post (36) and fasten it .
- Page 13 WARM UP and COOL DOWN A successful exercise program consists of a warm-up, aerobic exercise, and a cool down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week. WARM UP The purpose of warming up is to prepare your body for exercise and to minimize injuries.
