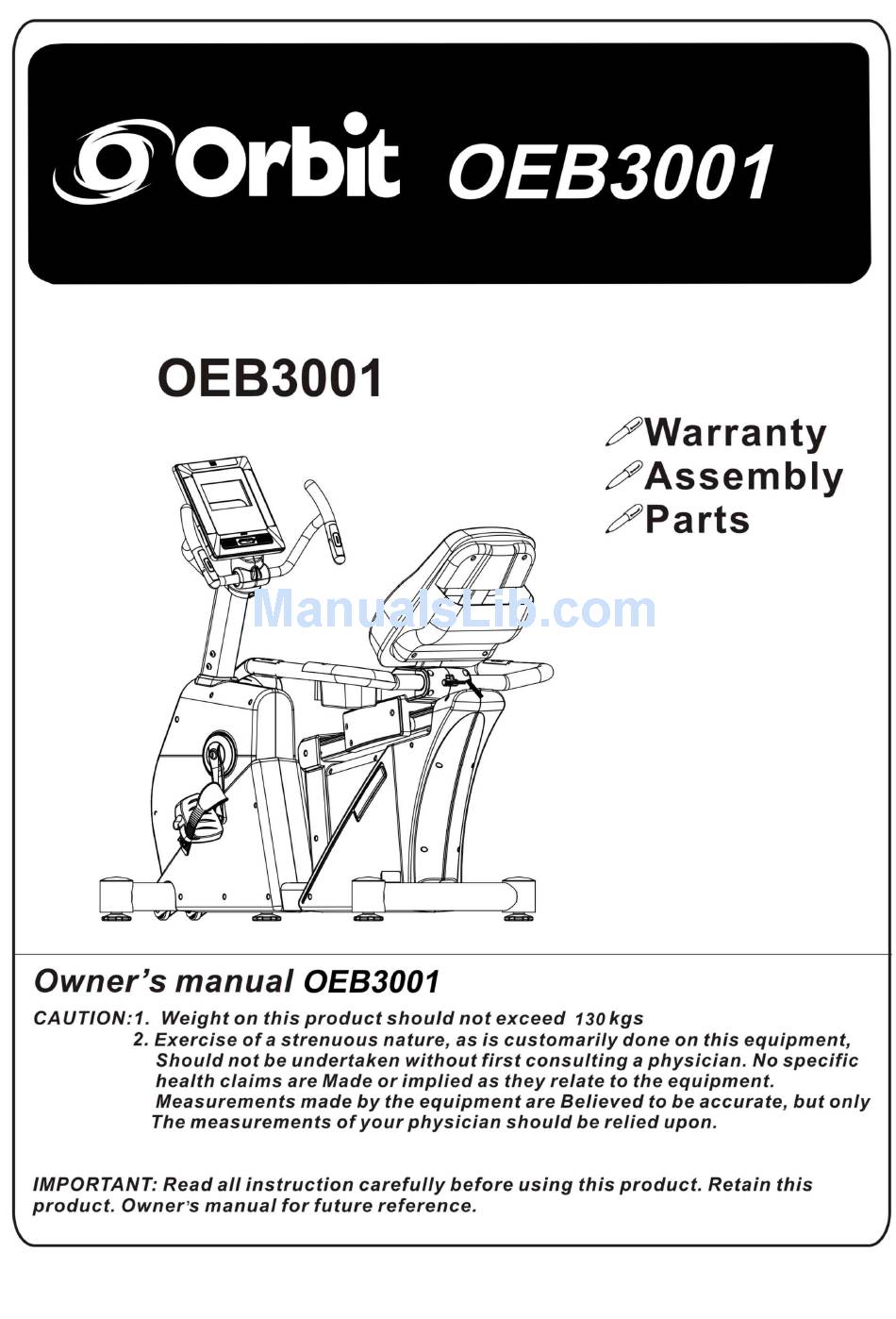

Orbit OEB3001 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OEB3001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orbit OEB3001

Summary of Contents for Orbit OEB3001

  • Page 2: Replacement Parts

    Assembly Your bike will require a small amount of assembly. You will find everything you need included in the box. Get to know your bike Take time to get to know your new bike – it will help you Replacement parts Thank you for purchasing our product.

  • Page 3: Gather Your Tools

    Assembly PRECAUTIONS WARNING: This bicycle has been designed and constructed to provide maximum safety. Nevertheless, certain precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the bicycle. The following safety precautions should also be observed: 1.
  • Page 4 Hardware chart S p rin g W a sh e r S C R E W S M 5 *P 0 .8 *1 0 L (1 1 ) *2 T (2 ) Φ 7 S c re w d riv e r (1 ) A lle n K e y -6 m m (1 ) F la t W a s h er ? 8* ? 19 *2 T (4) A lle n B o lt M 8x P 1 .25 x1 6 L (4 )

  • Page 5: Part List

    Assembly Part list BOM NUMBRE DESCRIPTION COMPUTER PE-SG76810027102 ADJUSTABLE COMPUTER BRACKET PH-T-PB-326-1000 SCREW M5x10L PD-SWM60510-1042 H SHAPE HANDLEBAR PH-T-PB-425-1000 HAND PULSE WIRE WITH BODY FAT PE-B23-0750-1002 HAND PULSE SENSOR FOR BODY FAT(UPPER) PL-T-PB-445-1080 HAND PULSE SENSOR (LOWER) PL-T-PB-447-1080 HAND PULSE HOLDER PH-T-PB-242C1000 SCREW M3xP0.5x12L PD-SGM20312-1041...
  • Page 6 Part list BOM NUMBRE DESCRIPTION D-22 SENSOR BOX PE-P-PB3715-1000 D-23 SENSOR HOLDER PE-P-PB4310-1000 D-24 SCREW PD-SDM20410-1041 D-25 CLAMP PH-T-PB-274C1000 D-26 UPPER COVER FOR BATTERY PL-P-PB4201-10R1 D-27 BATTERY PE-T-PB-453C1000 D-28 LOWER COVER FOR BATTERY PL-P-PB4200-10R1 HOLDER FOR SLIDER POST PH-T-PB-243-1000 BACK REST PS-T-PB-272-1002 SEAT PS-T-PB-416-1002...
  • Page 7 Part list BOM NUMBRE DESCRIPTION SEAT HAND PULSE WIRE WITHOUT BODY FAT E-35 PE-B11-0750-1002 SEAT COVER LEFT E-36 PLEB3000-18-1080 SEAT COVER RIGHT E-37 PLEB3000-19-1080 HAND PULSE SENSOR (UPPER) E-38 PL-T-PB-446-1080 HAND PULSE SENSOR (BELLOW) E-39 PL-T-PB-447-1080 SCREW M3xP0.5x12L E-40 PD-SGM20312-1041 E-41 PL-P-PB1711-1002 CARRIER...
  • Page 8 Part list BOM NUMBRE DESCRIPTION SPRING WASHER Φ7X2t PD-WS410700C1002 CROSS SCREW M3x30L PD-SGM40330C1002 CONE CROSS SCREW M5x10L PD-SWM40510C1002 HEXANGULAR CONE CROSS SCREW M8*P1.25*16L PD-SRM60816C1042 FLAT WASHER φ8xφ19x2t PD-WN260819C1042 drawing for assembly...
  • Page 9 Exploration drawing...
  • Page 10 STEP 1 – – – – Install Pedals STEP 1 STEP 1 STEP 1 Insert the Right Pedal (D-10R) into the right arm of the Crank assembly and finger tighten in a clockwise direction until the thread is fully inserted in the crank. Repeat for the Left Pedal (D-10L) and finger tighten in an anticlockwise direction.
  • Page 11 STEP 4 - Insert Computer Take off computer back cover and four screws (A-2) from adjustable computer bracket (A-1). Then fix the computer plate( A-1) by screw. Through four computer cables out of computer back cover. Connect four cables with computer, and then secure computer back cover with screw ( A-2).
  • Page 12 Step 6 – Install Seat and Carrier Take off hexangular screw (E-49) from holder for slider post (E). Keep seat support frame (E-3) erect and secure it with screw(E-49). Apart screw (E-43) from handlebar (E-5) . Fixing carrier (E-42) on the handlebar with screw (E-43). Take off four hexangular screws (E-26) and four cross screws (E-43) from back rest.
  • Page 13 Step 7 – Install Seat Cover Through two cables (E-35) out of handlebar cover (E-7). Secure handlebar cover onto handlebar with screws (K-3). Attach left and right seat cover (E-36/E-37) to handlebar. Step 8 – Insert Cables Insert the cable in the back of seat.

  • Page 14: Step 9 - Seat Adjustment

    Step 9 – Seat Adjustment You can move seat(E-2) forward and backward by handle for slider(E-21). Also, you can adjust the angle of back rest (E-1) by knob (E-16). Well done ! Your bike is now ready for use. Please go to the computer operation section in this manual for instructions on how to operate your console.

  • Page 15: Button Functions

    INSTRUCTION MANUAL OF SG7681-71 【 【 【 【 B UTTON FUNCTIONS 】 】 】 】 To make upward adjustment to each function data or increase training resistance. DOWN To make downward adjustment to each function data or decrease training resistance. MODE To confirm all setting.

  • Page 16: Display Functions

    【 【 【 【 D ISPLAY FUNCTIONS 】 】 】 】 TIME Count up - No preset target, Time will count up from 00:00 to maximum 99:59 with each increment is 1 minute. Count down - If training with preset Time, Time will count down from preset to 00:00.

  • Page 17: Program Select

    (4) MANUAL – 4-1 Use ▲ or ▼ key to adjust the LEVEL; press the MODE key for confirmation. Manual value also can be adjusted under the START mode; LEVEL text and number will be displaying on LCD. LCD will switch to display the WATT value if no adjustment is accrued after 3 seconds.

  • Page 18: User Program

    (7) USER PROGRAM – Users can use ▲ or ▼ key to set PROGRAM graphic. Press the MODE key for confirmation. Press the MODE key for 2 seconds to stop setting. Use ▲ or ▼ key to set TIME; press the START key to start exercise. (8) WATT –...
  • Page 19 【 【 【 【 N OTE 】 】 】 】 1. Stop pedaling for 90 seconds, computer will turn off. 2. Start pedaling and input 15RPM or above, computer will wake up. 3. Within 90 seconds, user may press RECOVERY button to test hear rate recover status. 4.
