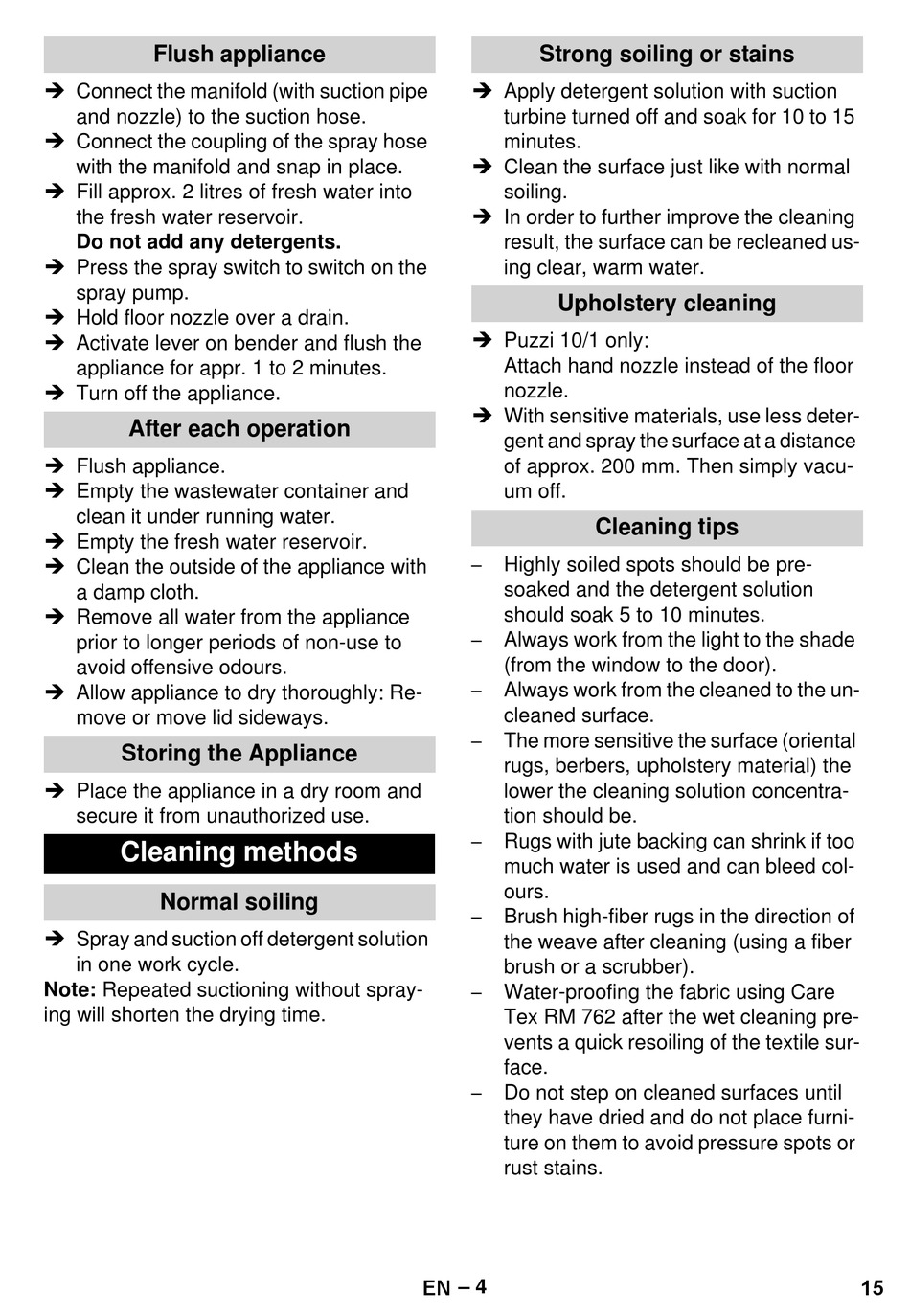

Flush appliance
 Connect the manifold (with suction pipe
and nozzle) to the suction hose.
 Connect the coupling of the spray hose
with the manifold and snap in place.
 Fill approx. 2 litres of fresh water into
the fresh water reservoir.
Do not add any detergents.
 Press the spray switch to switch on the
spray pump.
 Hold floor nozzle over a drain.
 Activate lever on bender and flush the
appliance for appr. 1 to 2 minutes.
 Turn off the appliance.
After each operation
 Flush appliance.
 Empty the wastewater container and
clean it under running water.
 Empty the fresh water reservoir.
 Clean the outside of the appliance with
a damp cloth.
 Remove all water from the appliance
prior to longer periods of non-use to
avoid offensive odours.
 Allow appliance to dry thoroughly: Re-
move or move lid sideways.
Storing the Appliance
 Place the appliance in a dry room and
secure it from unauthorized use.

Cleaning methods

Normal soiling
 Spray and suction off detergent solution
in one work cycle.
Note: Repeated suctioning without spray-
ing will shorten the drying time.
Strong soiling or stains
 Apply detergent solution with suction
turbine turned off and soak for 10 to 15
 Clean the surface just like with normal
 In order to further improve the cleaning
result, the surface can be recleaned us-
ing clear, warm water.
Upholstery cleaning
 Puzzi 10/1 only:
Attach hand nozzle instead of the floor
 With sensitive materials, use less deter-
gent and spray the surface at a distance
of approx. 200 mm. Then simply vacu-
um off.
Highly soiled spots should be pre-
soaked and the detergent solution
should soak 5 to 10 minutes.
Always work from the light to the shade
(from the window to the door).
Always work from the cleaned to the un-
cleaned surface.
The more sensitive the surface (oriental
rugs, berbers, upholstery material) the
lower the cleaning solution concentra-
tion should be.
Rugs with jute backing can shrink if too
much water is used and can bleed col-
Brush high-fiber rugs in the direction of
the weave after cleaning (using a fiber
brush or a scrubber).
Water-proofing the fabric using Care
Tex RM 762 after the wet cleaning pre-
vents a quick resoiling of the textile sur-
Do not step on cleaned surfaces until
they have dried and do not place furni-
ture on them to avoid pressure spots or
rust stains.
– 4
Cleaning tips
