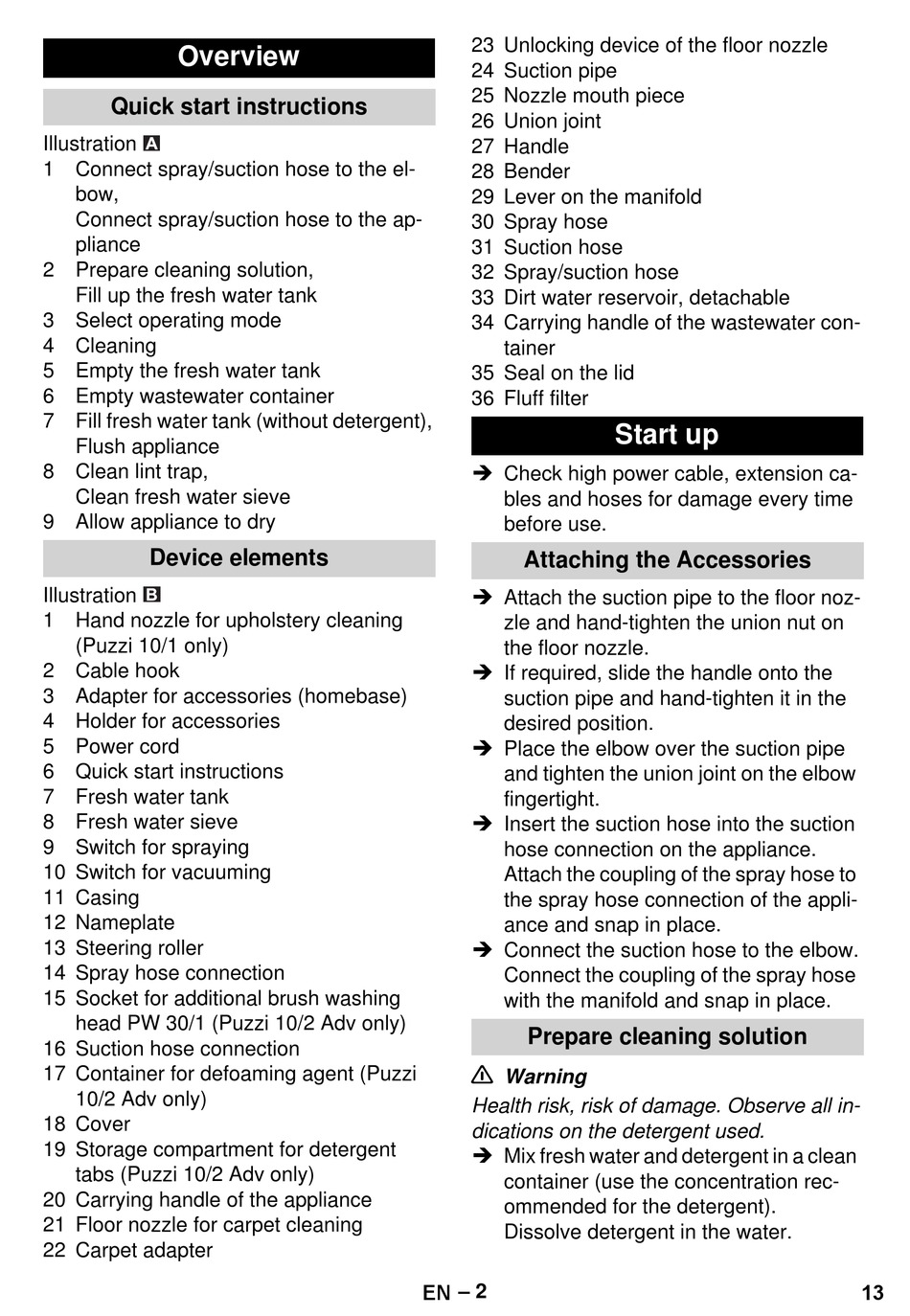

Quick start instructions
1 Connect spray/suction hose to the el-
Connect spray/suction hose to the ap-
2 Prepare cleaning solution,
Fill up the fresh water tank
3 Select operating mode
4 Cleaning
5 Empty the fresh water tank
6 Empty wastewater container
7 Fill fresh water tank (without detergent),
Flush appliance
8 Clean lint trap,
Clean fresh water sieve
9 Allow appliance to dry
Device elements
1 Hand nozzle for upholstery cleaning
(Puzzi 10/1 only)
2 Cable hook
3 Adapter for accessories (homebase)
4 Holder for accessories
5 Power cord
6 Quick start instructions
7 Fresh water tank
8 Fresh water sieve
9 Switch for spraying
10 Switch for vacuuming
11 Casing
12 Nameplate
13 Steering roller
14 Spray hose connection
15 Socket for additional brush washing
head PW 30/1 (Puzzi 10/2 Adv only)
16 Suction hose connection
17 Container for defoaming agent (Puzzi
10/2 Adv only)
18 Cover
19 Storage compartment for detergent
tabs (Puzzi 10/2 Adv only)
20 Carrying handle of the appliance
21 Floor nozzle for carpet cleaning
22 Carpet adapter
23 Unlocking device of the floor nozzle
24 Suction pipe
25 Nozzle mouth piece
26 Union joint
27 Handle
28 Bender
29 Lever on the manifold
30 Spray hose
31 Suction hose
32 Spray/suction hose
33 Dirt water reservoir, detachable
34 Carrying handle of the wastewater con-
35 Seal on the lid
36 Fluff filter
 Check high power cable, extension ca-
bles and hoses for damage every time
before use.
Attaching the Accessories
 Attach the suction pipe to the floor noz-
zle and hand-tighten the union nut on
the floor nozzle.
 If required, slide the handle onto the
suction pipe and hand-tighten it in the
desired position.
 Place the elbow over the suction pipe
and tighten the union joint on the elbow
 Insert the suction hose into the suction
hose connection on the appliance.
Attach the coupling of the spray hose to
the spray hose connection of the appli-
ance and snap in place.
 Connect the suction hose to the elbow.
Connect the coupling of the spray hose
with the manifold and snap in place.
Prepare cleaning solution
Health risk, risk of damage. Observe all in-
dications on the detergent used.
 Mix fresh water and detergent in a clean
container (use the concentration rec-
ommended for the detergent).
Dissolve detergent in the water.
– 2
