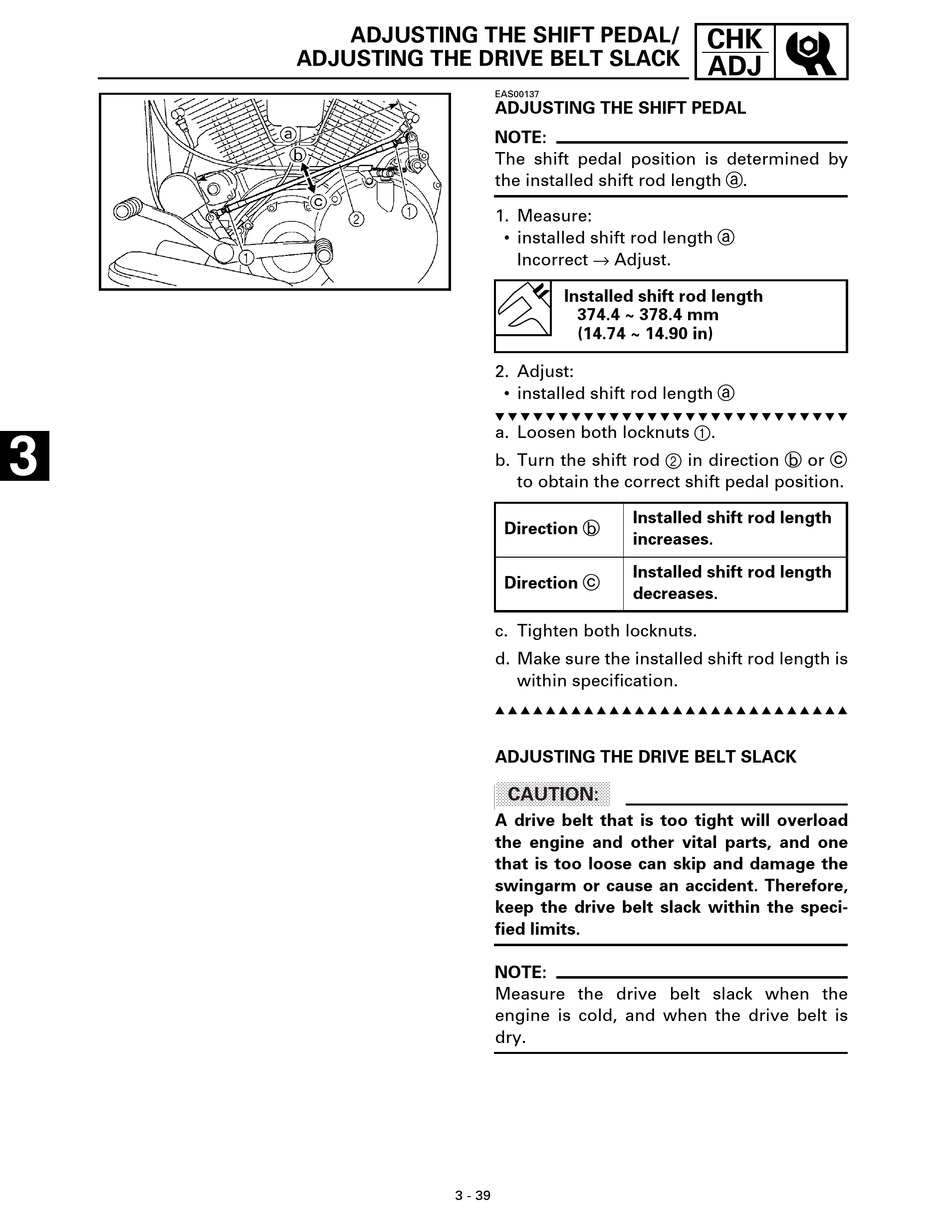

ADJUSTING THE SHIFT PEDAL/

ADJUSTING THE DRIVE BELT SLACK

3 - 39
EAS00137
ADJUSTING THE SHIFT PEDAL
NOTE:
The shift pedal position is determined by
the installed shift rod length a.
1. Measure:
• installed shift rod length a
Incorrect → Adjust.
Installed shift rod length
374.4 ~ 378.4 mm
(14.74 ~ 14.90 in)
2. Adjust:
• installed shift rod length a
▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼
a. Loosen both locknuts 1.
b. Turn the shift rod 2 in direction b or c
to obtain the correct shift pedal position.
Installed shift rod length
Direction b
increases.
Installed shift rod length
Direction c
decreases.
c. Tighten both locknuts.
d. Make sure the installed shift rod length is
within specification.
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
ADJUSTING THE DRIVE BELT SLACK
CAUTION:
ACHTUNG:
A drive belt that is too tight will overload
the engine and other vital parts, and one
that is too loose can skip and damage the
swingarm or cause an accident. Therefore,
keep the drive belt slack within the speci-
fied limits.
NOTE:
Measure the drive belt slack when the
engine is cold, and when the drive belt is
dry.
