Yamaha XV16AL Service Manual page 235

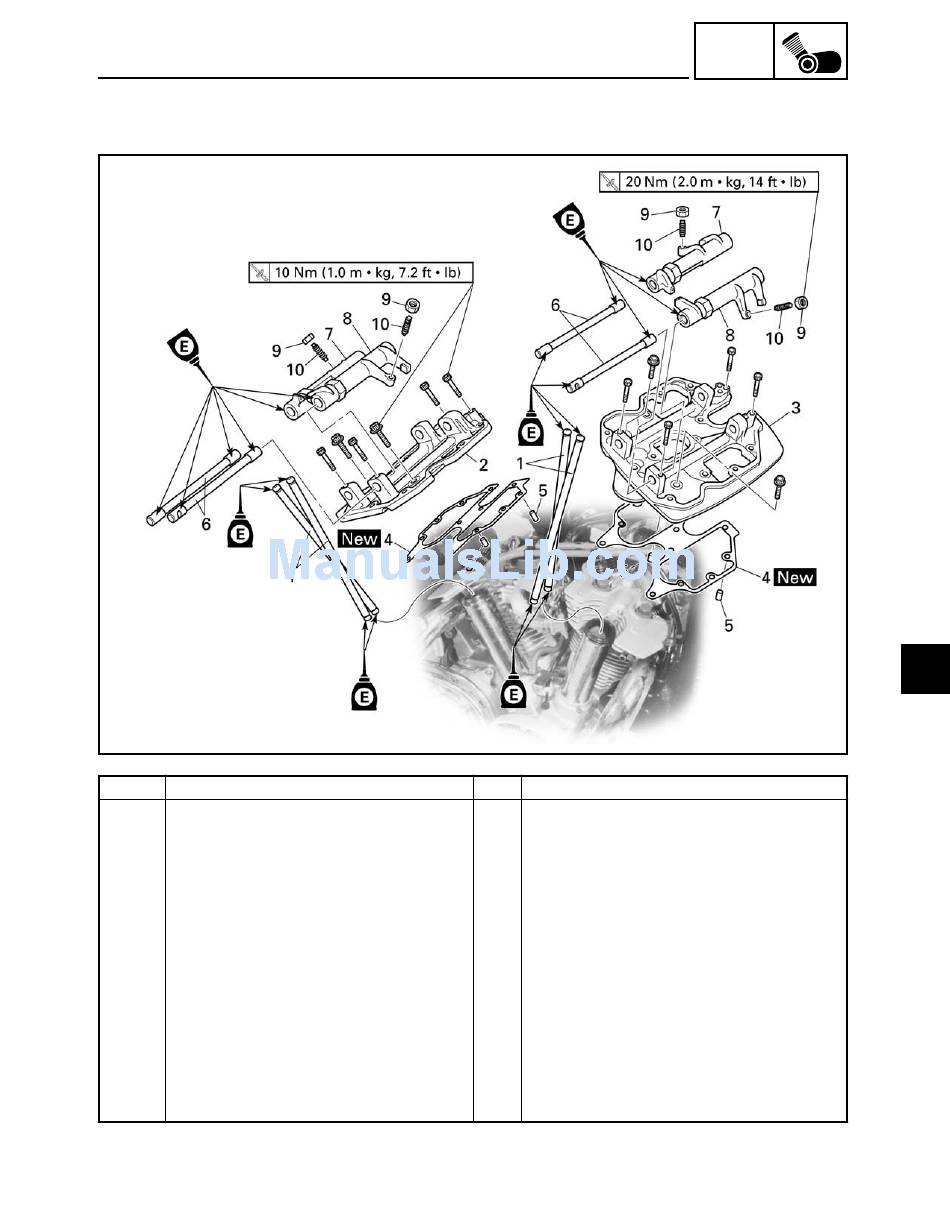

ROCKER ARMS, PUSH RODS AND VALVE LIFTERS
Order Job/Part
Removing the push rods and rocker
arms
1 Push rod
2 Rear rocker arm base
3 Front rocker arm base
4 Rocker arm base gasket
5 Dowel pin
6 Rocker arm shaft
7 Rocker arm 1
8 Rocker arm 2
9 Locknut
10 Adjusting screw
Q'ty
Remove the parts in the order listed.
4
1
1
2
4
4
2
2
2
2
For installation, reverse the removal
procedure.
5 - 16
ENG
Remarks
5
