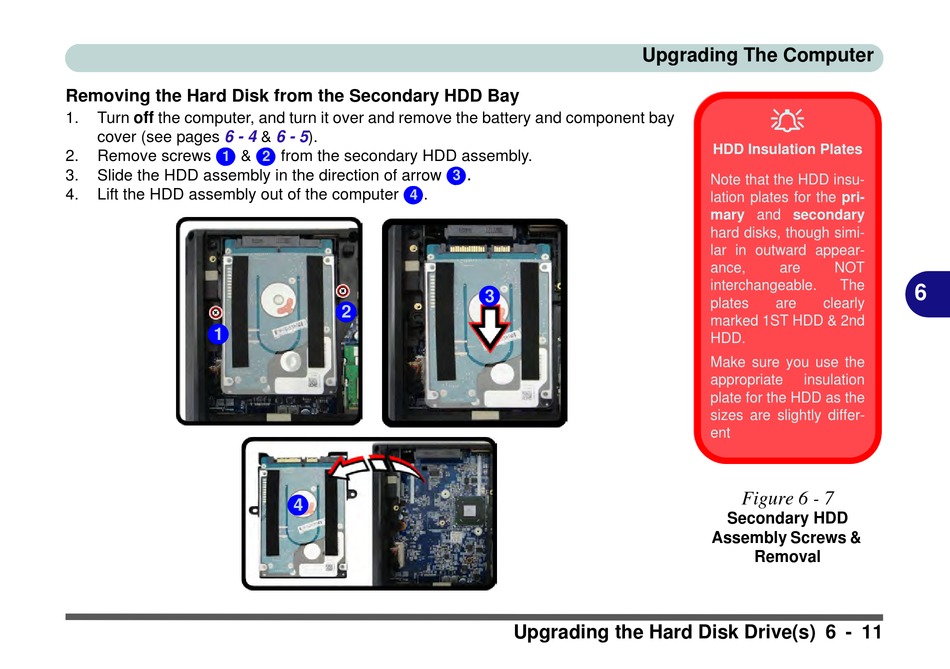

Removing the Hard Disk from the Secondary HDD Bay
1.
Turn off the computer, and turn it over and remove the battery and component bay
cover (see pages
6 - 4
2.
Remove screws
&
1
3.
Slide the HDD assembly in the direction of arrow
4.
Lift the HDD assembly out of the computer
1
&
6 -
5).
from the secondary HDD assembly.
2
4
.
2
4
.
3
3
Upgrading the Hard Disk Drive(s) 6 - 11
Upgrading The Computer
HDD Insulation Plates
Note that the HDD insu-
lation plates for the pri-
mary and secondary
hard disks, though simi-
lar in outward appear-
ance,
are
interchangeable.
plates
are
marked 1ST HDD & 2nd
HDD.
Make sure you use the
appropriate
insulation
plate for the HDD as the
sizes are slightly differ-
ent
Figure 6 - 7
Secondary HDD
Assembly Screws &
Removal
