Load Ribbon Continued
The ribbon loading process is the same for all sizes of ribbon for Steps 6 - 12 of section
"Load Ribbon Continued". Pages 7-9, Fig. 6, 7, 8, 11, 12, 13, & 14 illustrate 4.3" ribbon
supply.

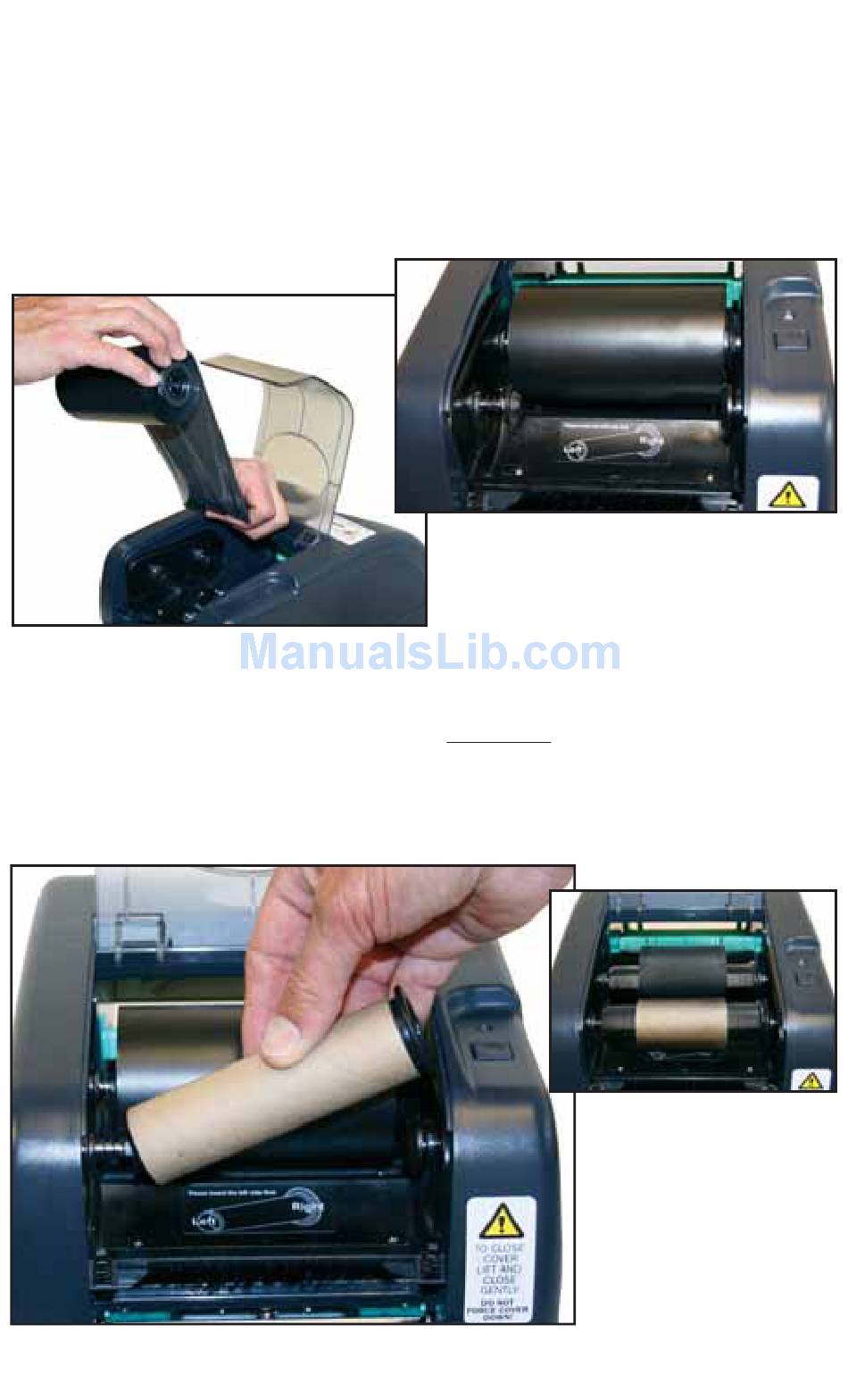

6. Apply the Ribbon Supply Spindle to the Rear Hub, with the Ribbon Supply leader
dropped down.
Fig. 6
Ribbon Supply (4.3") spindle being inserted at Rear Hubs
7. Place the Ribbon Rewind Spindle with the paper core on the Front Hubs, by
inserting the left side of the Spindle first, fitting it onto the Front Spring-Loaded
Hub. Then fit the right side of spindle which has the flange onto the right Hub.
Fig. 8
Ribbon Rewind Spindle with paper core (4.3") being applied to the Front
Spring-loaded Hub
- For All Ribbon Supply Sizes
Fig. 7
Ribbon Supply (4.3") Spindle inserted at
Rear Hubs
Fig. 9
Ribbon
Supply (2.5")
Spindles loaded
and aligned with
each other
