Load Label Stock

IMPORTANT!
Always turn OFF the printer when loading supplies. Always wait at
least 5 seconds before turning ON the power.
Turn printer power OFF first!
1. With the Ribbon Mechanism still in upright position. Load Label Stock onto Label
Supply Spindle and center it using the Fixing Tabs on each end to secure supply.
2. Place loaded Label Supply Spindle in the Label Roll Mount slots with the Label
Stock extending over the top of the roll and towards the front of the printer.

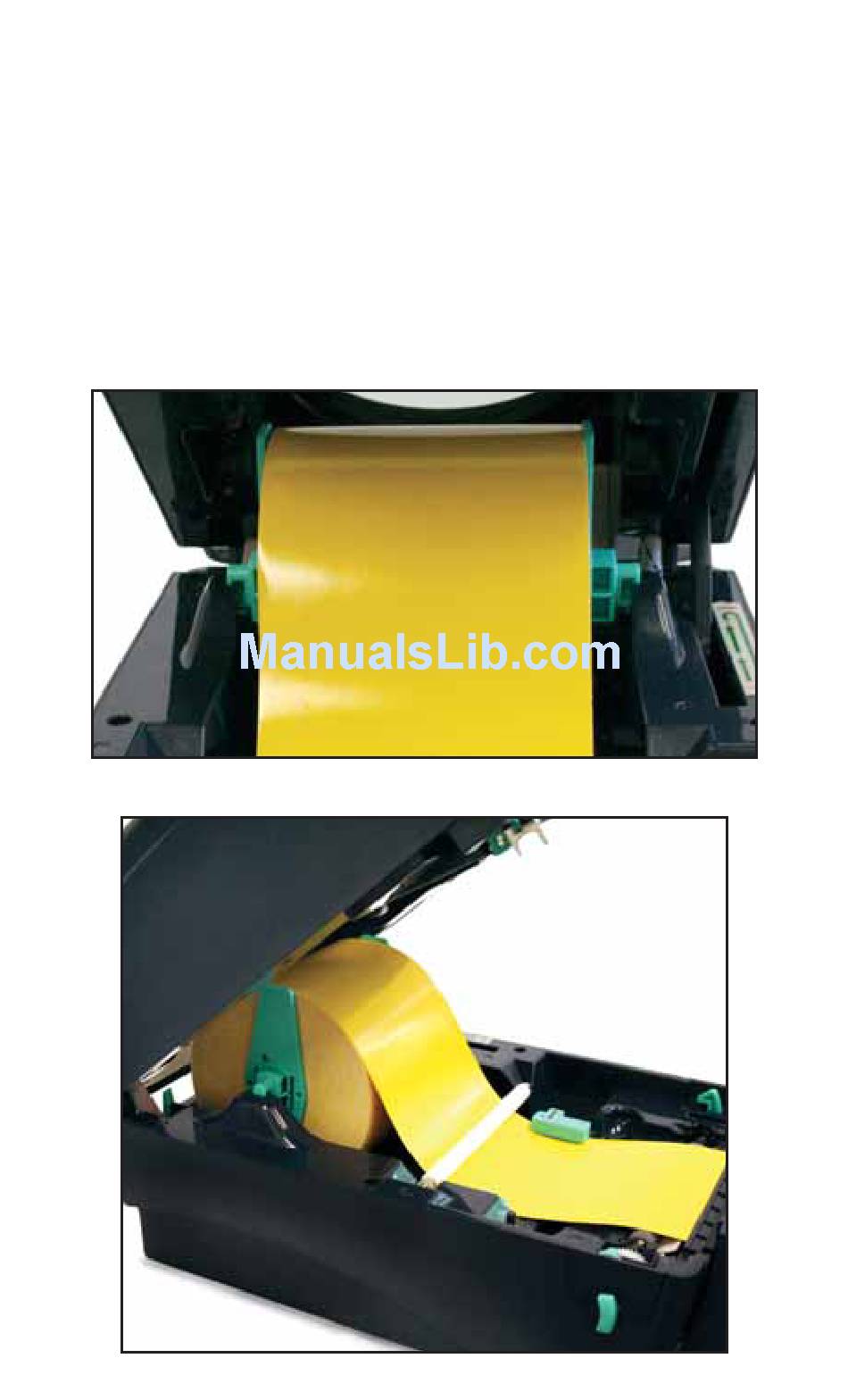

Fig. 2
Loaded Label Supply Spindle set in Label Roll Mount slots
Fig. 3
Label Stock loaded in the correct direction
-11-
