TAPE GUIDE INSTALL INSTRUCTIONS

To Use Tape Guides

The following are instructions on how to install Tape Guides. Tape Guides are
required for 1/2" label stock and shrink tube sizes 3/8" and smaller. Larger vinyl
and shrink tube are adequately held in place by the Adjustable Label Guides.
1. Load shrink tube or 1/2" label stock into the DuraLabel
through the cutter. (See pages 11-13 of the User's Guide, section "Load Label
Stock")

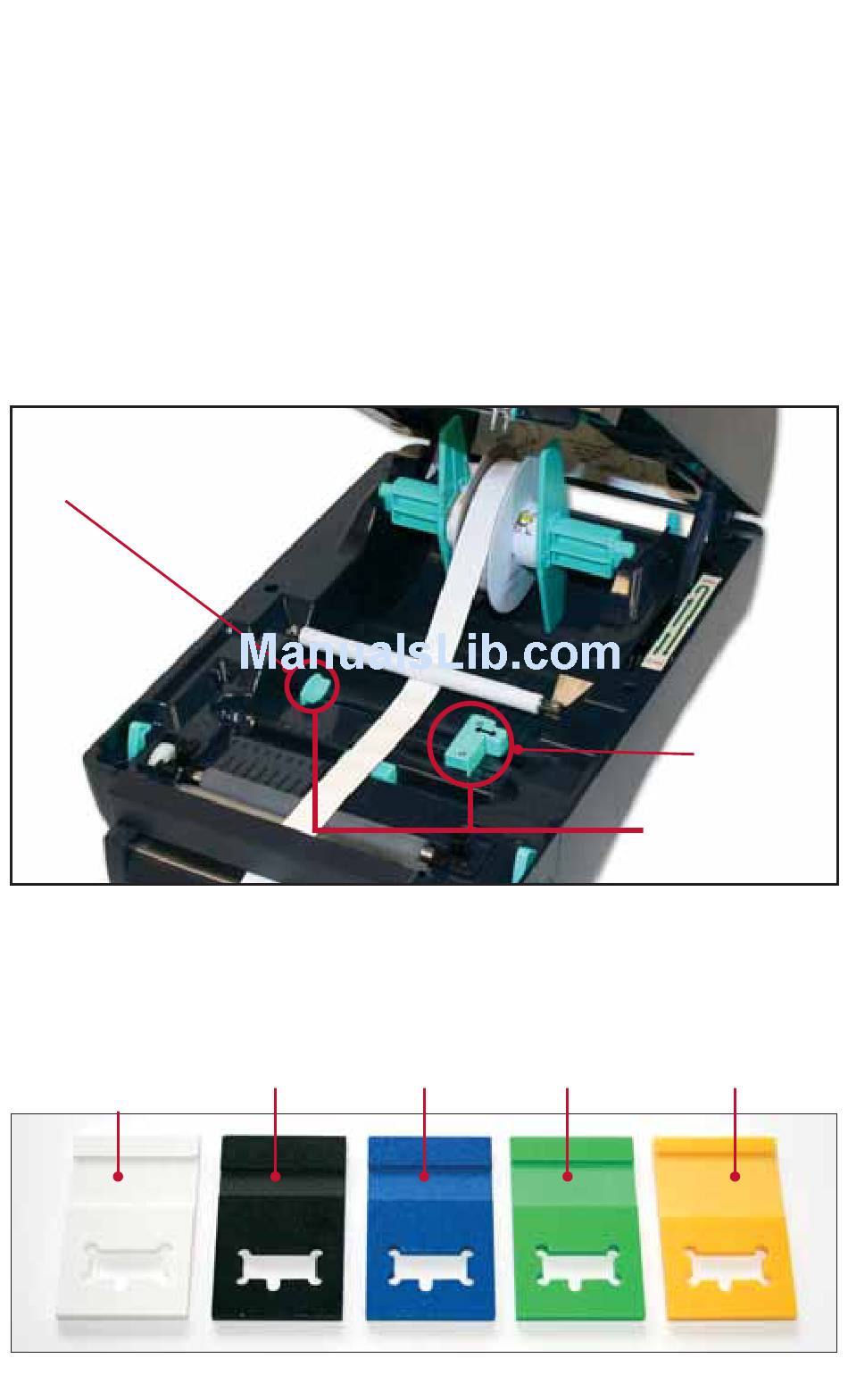

Left Adjustable Label Guide
Fig. 1
Shrink tube supply (3/8" size) loaded
2. Find the corresponding Tape Guide to match the size of shrink tube or label stock
which is loaded.
White - 1/2"
(for vinyl only)
-14-
Black - 1/8" Blue - 3/16"
LabPRO and thread it
®
Adjustable
Label Guides
Green - 1/4"
Right Adjustable
Label Guide
Yellow - 3/8"
