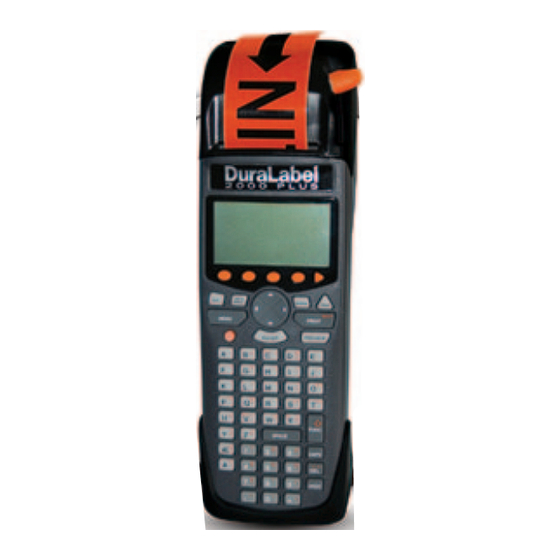

  • Page 1 DuraLabel ® 2000 PLUS QuickStart Guide 1-800-788-5572 International: +1 503-644-5572 info@GraphicProducts.com www.GraphicProducts.com www.DuraLabel.com...

  • Page 2: Charging The Battery

    1. The BATTERY CHARGING THE BATTERY IMPORTANT: For optimal performance the battery must be charged before use. LED STATUS BATTERY Battery On ...........Charging Blinking every 2 seconds ....Fully Charged Blinking every 1/2 second ...Error Power Jack Battery Charge Indicator LED INSERTING THE BATTERY 1.

  • Page 3: Removing The Battery

    REMOVING THE BATTERY IMPORTANT: Always power down the printer before removing the battery to prevent damage to the LCD. 1. To remove the battery, first open the battery compartment flap. Pull Tab 2. Pull gently on the pull tab. uNOTE: Do not remove the pull tab.

  • Page 4: Installing The Ribbon Cartridge

    2. The RIBBON CARTRIDGE INSTALLING THE RIBBON CARTRIDGE IMPORTANT: The printer should be off prior to installing the ribbon cartridge. Ribbon Cartridge Ribbon Printer 1. Open the printer Cover cover by pulling the cover release lever. Cover Release Lever Locking LCD Screen 2.

  • Page 5: Loading The Supply Spindle

    3. The SUPPLY SPINDLE LOADING THE SUPPLY SPINDLE Spindle 1. With the printer cover open, remove the supply spindle Shaft from the printer. 2. Grasping the three parts of the supply spindle, gently pull off the left spindle cap. Left Spindle Cap 3.

  • Page 6: Installing The Supply Spindle In The Printer

    3. The SUPPLY SPINDLE INSTALLING THE SUPPLY SPINDLE IN THE PRINTER IMPORTANT: The printer should be off prior to installing the supply spindle. Gently push while closing Slotted Round Bar Guide Plate 2” 1” ½” Platen Roller Spindle Shaft Spindle Slot 1.

  • Page 7: The Printer Interface

    4. The PRINTER INTERFACE Your DuraLabel 2000 PLUS printer is now fully loaded and ready to power on. Press the power key to get started! The printer interface image below highlights the main navigational tools needed to help you get started.

  • Page 8: Making Labels

    5. MAKING LABELS Finished Label Red 2" Premium Vinyl Tape and White Ribbon Cartridge 1. From the main menu ............MENU 2. Enable the bold setting ........... TEXT BOLD NOTE: When enabled, a small box appears to the right of the menu option. 3.
  • Page 9 9. Return to the edit screen ..........MENU 10. Type the label text ............FIRE SYSTEM 7A 11. Preview the label ............PREVIEW 12. Print the label ..............PRINT uNOTE: After printing, cut the label by pulling the red cutter lever. Cutter Lever...

  • Page 10: Saving Labels

    6. SAVING LABELS 1. From the main menu ............MENU FILE NEW 2. Save the label by creating a new label ......SAVED LA BELS 1/32 EDIT HALON Save current file? SAVE DELETE SAVE 3. Save the label..............4. Type the label name ............HALON ENTER uNOTE: The label is saved and a blank edit screen appears.

  • Page 11: The Edit Screen

    7. The EDIT SCREEN See the explanation of the numbered items below the image. 3 45 6 7 8 11 12  A 182 AP B HALON FILE TEXT IMAGE ALIGN 1. Red key definitions active ........2. CAPS lock ............. A (on) a (off) 3.

  • Page 12: Troubleshooting Tips

    8. TROUBLESHOOTING TIPS SYMPTOMS & SOLUTIONS Hard Reset - A hard reset may be performed to return the printer to a known state if it is functioning “out of character.” To perform a hard reset, first pull out and reinsert the battery and then follow the steps below. 1.
  • Page 13 • Clean the print head (see User’s Guide, page 45). • If line continues this indicates the print head pixels have been damaged in this area. The DuraLabel 2000 PLUS prints in landscape mode, so the missing line shows up throughout the entire label. Contact Graphic Products.

  • Page 14: The Image Library

    9. The IMAGE LIBRARY -13-...
  • Page 15 -14-...
  • Page 16 To get the most out of your DuraLabel 2000 PLUS, optional accessories may be ordered upon request. Call Graphic Products at 1-800-788-5572 for details or visit www.DuraLabel.com DL2000 PLUS Soft Case DL2000 PLUS Hard Case Supply Spindle Rechargeable Battery Cleaning Cards and Pen Battery Charger ½...
