DuraLabel Bronco User Manual
Hide thumbs
Also See for Bronco:
- User manual (24 pages) ,
- Quick start manual (8 pages) ,
- User manual (16 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DuraLabel Bronco
Summary of Contents for DuraLabel Bronco

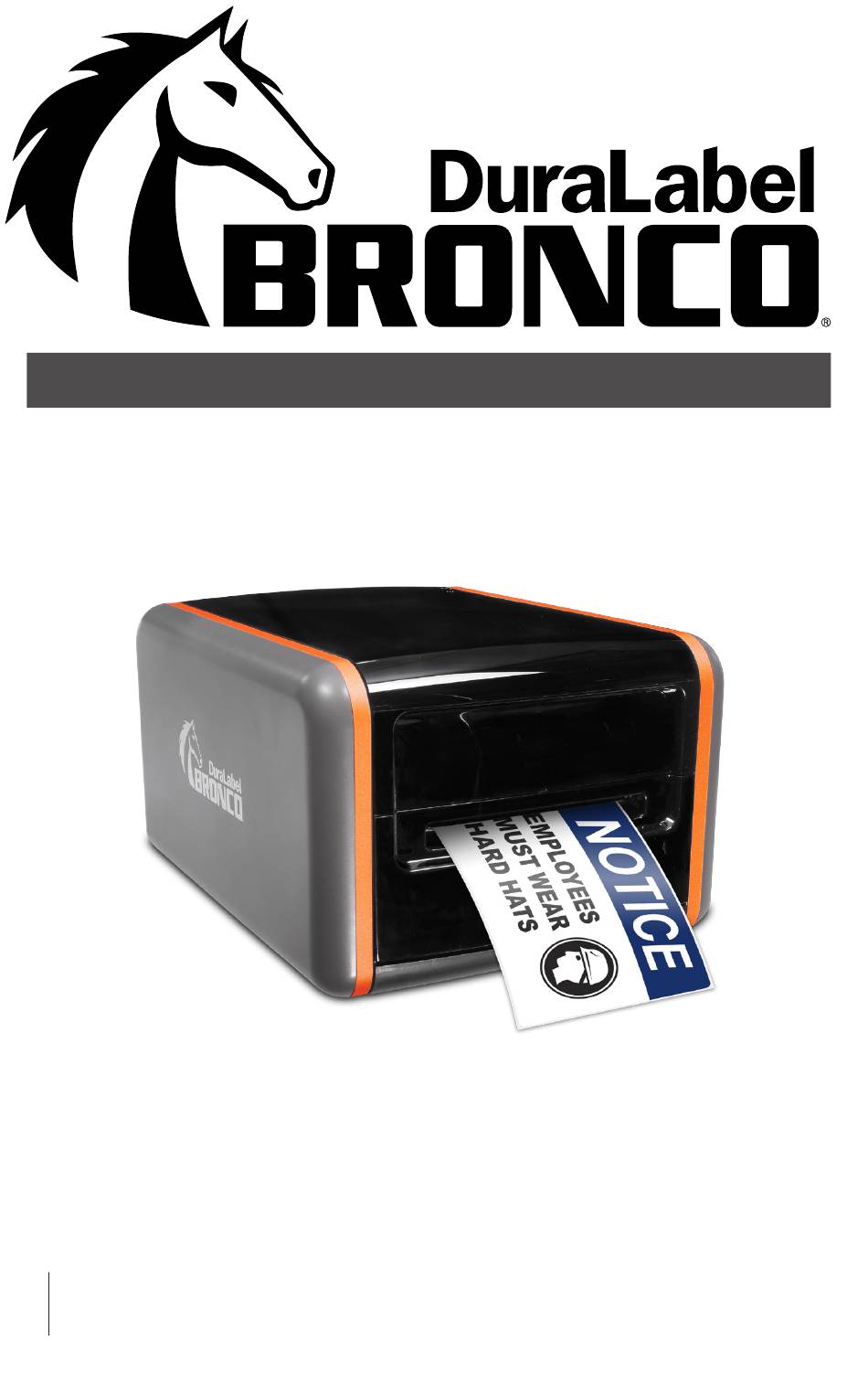

- Page 1 USER GUIDE 800.788.5572 GraphicProducts.com...
- Page 2 DuraLabel supplies and DuraLabel Bronco printers have been optimized for ® compatibility and print quality. Use only DuraLabel supplies from Graphic Products with your DuraLabel Bronco printer. Copyright Information This manual is copyrighted with all rights reserved. No portion of this manual may be copied or reproduced by any means without the prior consent of Graphic Products, Inc.
- Page 3 Safety Warnings Before connecting Bronco to a power outlet, check the voltage of the power source. Bronco needs a power supply between 100 and 240 volts. Ensure that the power switch on the printer is in the OFF position. Only use the included power supply with the Bronco (rated for 24V/2.5A output, model WDS060240).
-
Page 4: Table Of Contents
6. Installing Labeling Software Installing DuraSuite Labeling Software Installing LabelForge Labeling Software 7. Maintenance and Troubleshooting Cleaning Your Bronco Troubleshooting 7.2.1 Recalibrating Bronco’s Sensors 7.2.2 Checking Supply Loading 8. Warranty and Certifications 5-Year DuraLabel Printer Warranty 8.1.1 Repairs 8.1.2 Warranty Details... -
Page 5: Introduction
Congratulations! Now that you have your DuraLabel Bronco sign and label printer, you’ll be creating custom labels in no time. In addition to helping you set up and use Bronco, this User Guide will serve as a reference document for maintaining the system, and for using its more advanced features. -
Page 6: Getting Started
• Bronco Software CD • AC Power Adapter • USB Cord • Supply Spindle and Fixing Tabs • Ribbon Take-Up Core If any of these items are missing, please contact your DuraLabel representative. | 2. Getting Started GraphicProducts.com | 800.788.5572... -
Page 7: Know Your Bronco
GETTING STARTED Know Your Bronco 2.2.1 EXTERIOR Feed/Cancel Button and Indicator Light Cutter Slot 2.2.2 CONNECTION PANEL Power Switch Power Supply Connection USB Connection 2.2 Know Your Bronco | GraphicProducts.com | 800.788.5572... -
Page 8: Interior - Print Head Carriage Locked
INTERIOR – PRINT HEAD CARRIAGE LOCKED Ribbon Take-Up Holders Carriage Release Tabs Print Head Carriage 2.2.4 INTERIOR – PRINT HEAD CARRIAGE RELEASED Print Head Ribbon Supply Holders Adjustable Supply Guides Platen Roller Cutter Slot (Down position) | 2. Getting Started DuraLabel.com | 800.788.5572... -
Page 9: Loading Supplies
3. Loading Supplies To open your Bronco and load supplies, start by raising Bronco’s lid, lifting at the front edge, above the cutter opening. You can also gently pull the cutter mechanism forward to lower it out of the way. -
Page 10: Loading Label Stock
Fresh label stock comes in a roll with plastic end caps on each side. The material typically has a glossy print surface on one side, and a disposable paper backing on the other side. When printing, Bronco will feed some of the label stock from its roll and cut off the printed label. -
Page 11: Connecting The Printer
NOTE: You may need IT administrator privileges to install a driver. Connect the power supply from the DuraLabel Bronco printer to an electrical outlet. Next, connect the USB cable from the DuraLabel Bronco to your PC. Turn on your Bronco using the power switch on the back of the printer. - Page 12 Finish. When the Driver Wizard starts, the program should automatically detect your Bronco. Select the entry for your Bronco (in the list under “Install a driver for a Plug and Play printer”) and click Next. Choose a name for your Bronco; by default, this will be “Graphic Products DuraLabel Bronco...
-
Page 13: Choosing Driver Settings
5. Choosing Driver Settings We recommend checking your Bronco’s settings before beginning any print job. Changes to these settings may not take effect correctly if your label design software is already running; we recommend closing any open programs, making the necessary changes, and then opening your label design. -
Page 14: Stock
5.3.4 OCCURRENCE If you want Bronco to cut your labels, you can also set when the cutter runs: after every label, after identical copies, after a set number of labels, or after each complete print job. -
Page 15: Options
Options When needed for troubleshooting, you can adjust the print speed and darkness settings for your Bronco here. The darkness setting controls how much heat is used during the printing process; some printing supplies require different amounts of heat to print with the best quality. -
Page 16: Installing Labeling Software
DuraSuite Labeling Software lets you create professional-quality pipe markers, arc flash, NFPA Diamond, RTK, GHS, and custom labels, quickly and easily. To install, from the DuraLabel Bronco startup screen, click on DuraSuite Label Software and follow the directions that appear. Refer to the DuraSuite Labeling Software User Guide for additional information. -
Page 17: Maintenance And Troubleshooting
We recommend that you clean the Bronco when you change supplies, as this may be the most convenient time. Cleaning will take less than five minutes. Before cleaning your Bronco, turn it off using the power switch in the back of the printer, near the black power cord. -
Page 18: Checking Supply Loading
7.2.2 CHECKING SUPPLY LOADING Most of the errors that will prevent Bronco from printing are simply the result of a mis- feed of the supplies in the printer. If a problem occurs and the indicator light blinks red or yellow, follow these steps to check the supply loading. - Page 19 MAINTENANCE & TROUBLSHOOTING After checking the supplies, press the print head carriage back down until it latches securely on each side. Close the lid, and turn the printer on again. Your label may print out correctly as the printer restarts. If you have any further questions, please contact us for help at 800.788.5572.
-
Page 20: Warranty And Certifications
8. Warranty and Certifications 5-Year DuraLabel Printer Warranty Graphic Products’ DuraLabel printers are warrantied to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase. Within this period, Graphic Products, Inc. will, at its sole option, repair or replace any components which fail in normal use. Such repairs or replacement will be made at no charge to the purchaser for parts or labor, provided that the purchaser shall be responsible for any transportation cost. This warranty does not cover loss, damages from accident, or equipment or parts which have been misused, altered, neglected, carelessly handled, used for purpose other than those for which the printer was manufactured, or damages resulting from unauthorized service. 8.1.1 REPAIRS Repairs are warrantied for 90 days. If the original warranty is still in effect, repaired units will remain under their original warranty or for 90 days from the date of service, whichever is longer. 8.1.2 WARRANTY DETAILS The warranties and remedies contained herein are exclusive and in lieu of all other warranties whether express, implied, or statutory, including any liability arising under any warranty of merchantability or fitness for a particular purpose, statutory or otherwise. This warranty gives the purchaser specific legal rights, which may vary from state to state. In no event shall Graphic Products be liable for any incidental, special, indirect, or consequential damages, whether resulting from the use, misuse, or inability to use the product for any reason including defect. Some states do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply in all areas. Graphic Products retains the exclusive right within all warranty periods to repair, replace, or offer a full refund of the purchase price at its sole discretion. Such remedy shall be the purchaser’s sole and exclusive remedy for any breach of warranty. General maintenance and cleaning of the DuraLabel printer is the purchaser’s responsibility and is not covered by the warranty. Expendable items or parts such as label supply and ribbon are not covered by this warranty. NOTE: Specific preparation may be required before shipping. Please contact your Graphic Products representative to ensure correct return procedure: please call ... -
Page 21: 5-Year Duralabel Premium Vinyl Warranty
MAINTENANCE & TROUBLSHOOTING 5-Year DuraLabel Premium Vinyl Warranty DuraLabel supplies are tested for durability under various conditions, including UV exposure, moisture, heating and cooling cycles, abrasion, and chemical exposures. Graphic Products warranties labels made from its Premium vinyl supplies for a period of five (5) years. Within five years of purchase and after proper application, Graphic Products will replace labels made with DuraLabel Premium Vinyl which become unreadable or fail to maintain adhesion with the labeled surface. In such instance, Graphic Products, Inc. will provide a one-time replacement roll of the same supply. FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To comply with the FCC RF exposure requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void the user’s authority to operate the device. US, Canadian and European EMC and EMI standards This equipment has been tested and passed with the requirements relating to ... - Page 22 9. Specifications PRINTER • Type: Thermal Transfer • Print Speed: up to 3" per second (76.2 mm/s) • Resolution: 300 dots/inch (12 dots/mm) • Max. Print Width: 4.16" (105.7 mm) • Max. Print Length: 30" (762 mm) • Agency Approvals: CE , FCC Class A, IC INDICATORS & BUTTONS • Indicators: x1 tri-color LED: Power (green, orange, and red) • Buttons: Feed COMMUNICATION AND DATA STORAGE • Communication(s): USB 2.0 • Data Storage: 4 GB Flash, 8MB SDRAM POWER REQUIREMENTS • Input Voltage: 24 VDC, 2.5A • Different AC adapters available for worldwide usage ENVIRONMENT •...
-
Page 23: Contact Us
10. Contact Us Graphic Products, Inc. has been a leader in custom labeling, signage, and visual communication solutions since 1970. Our commitment to providing world-class service is at the heart of everything we do. If you have any further questions, or if any problems arise that are not addressed in this User Guide, please let us know. Graphic Products proudly offers free support to all of our customers. Call us at: 800.788.5572 (U.S.A. and Canada only) 1.503.644.5572 (International) Visit our website at GraphicProducts.com Email us at info@graphicproducts.com 10. Contact Us | GraphicProducts.com | 800.788.5572 ... - Page 24 800.788.5572 | DuraLabel.com ©2018 Graphic Products, Inc. All Rights Reserved 10/17/18...
