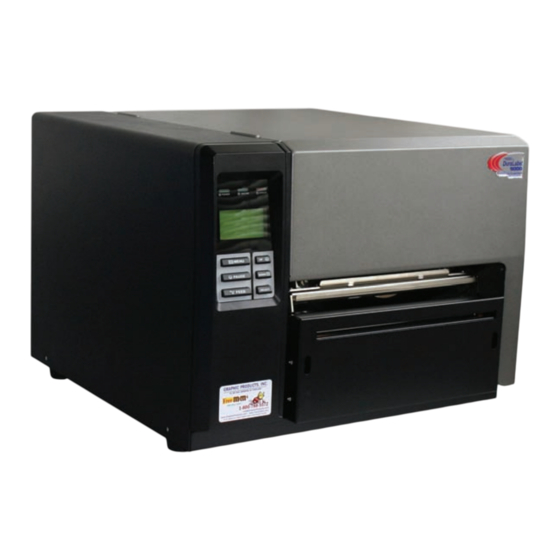

DuraLabel 9000 Quick Start Manual
Hide thumbs
Also See for 9000:
- User manual (56 pages) ,
- Manual (53 pages) ,
- Quick start manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for DuraLabel 9000
Summary of Contents for DuraLabel 9000
- Page 1 DuraLabel 9000 ® QuickStart Guide Read Me Graphic Products, Inc. 1-800-788-5572 First! 503-644-5572 Local: www.DuraLabel.com www.GraphicProducts.com info GraphicProducts.com E-mail:...
- Page 2 **IMPORTANT** For Upgrading from an existing DuraLabel driver installation! Upgrade Drivers In order to upgrade DuraLabel printer drivers the previous driver will need to be uninstalled. Please follow these steps: 1. Press the “Uninstall Driver” button on the installation screen.
-
Page 3: Table Of Contents
This guide provides steps to help you set up your printer, load supplies, and print custom signs and labels immediately. The ribbon and various print media for the DuraLabel 9000 have been optimized for compatibility and print quality. Only authorized supplies from Graphic Products will print correctly with the DuraLabel 9000. -
Page 4: Unpack Printer & Supplies
Check that all equipment and supplies are present and undamaged before proceeding. Equipment Checklist • DuraLabel 9000 printer unit with cutter built-in • DuraLabel 9000 CD with printer driver, label templates and symbols • DuraLabel 9000 User’s Guide • DuraLabel 9000 QuickStart Guide •... -
Page 5: Connect Printer, Install & Configure Driver
4. A Found New Hardware dialogue window may appear. If so, select “No, not this time.” Install Software & Driver 1. Insert the DuraLabel 9000 CD into the CD-ROM drive. 2. At the prompt, select “Install the software automatically” and click “Next.” 3. Follow the on-screen prompts to install drivers. -
Page 6: Load Supplies
Load Supplies **IMPORTANT** Always turn OFF the power first! The ribbon and various printer media for the DuraLabel 9000 have been optimized for compatibility and print quality. Only authorized supplies from Graphic Products will print correctly in the Duralabel 9000. - Page 7 4. Remove outside supply guide from the supply bar. Printer Cover Supply Guide Supply Bar Figure 2 5. Adjust the inside supply guide to cover the number corresponding to the size of vinyl being loaded. (see Figure 3 & 4) Figure 3 Figure 4 The inside supply guide is...
- Page 8 8. Pull the leading edge of the vinyl supply and thread the vinyl supply under the media guide bar and through the adjustable media guides. Supply Print Head Guides Mechanism Adjustable Media Guides Platen Roller Supply Bar Printed Label Opening Media Guide Bar Figure 6...
-
Page 9: Load Ribbon Supply
Load Ribbon Supply 1. Set the ribbon guides based on the size of ribbon loaded. a. For 4.33" ribbon, move each ribbon guide to the line indicated on the label on the ribbon spindles and tighten the screws on the top of the ribbon guide. - Page 10 5. Tape the ribbon supply to the front of the empty ribbon supply core. 6. Roll the ribbon rewind spindle clockwise a few times, towards the (front spindle) back of the printer to tighten the ribbon and remove fl aws and fi ngerprints. Ribbon Rewind Spindle Ribbon Spindle...
-
Page 11: Creating & Printing Signs & Labels
Microsoft Word and other common word processors. In addition, a ® variety of Word templates are included on the DuraLabel 9000 CD. 1. Open Microsoft Word or another word processor. 2. Select the DuraLabel 9000 as the active printer. - Page 12 P.O. Box 4030 www.DuraLabel.com 1-800-788-5572 Beaverton, OR 97076 © 2009, Graphic Products, Inc. All Rights Reserved v. 1.0 - 7/7/09...
