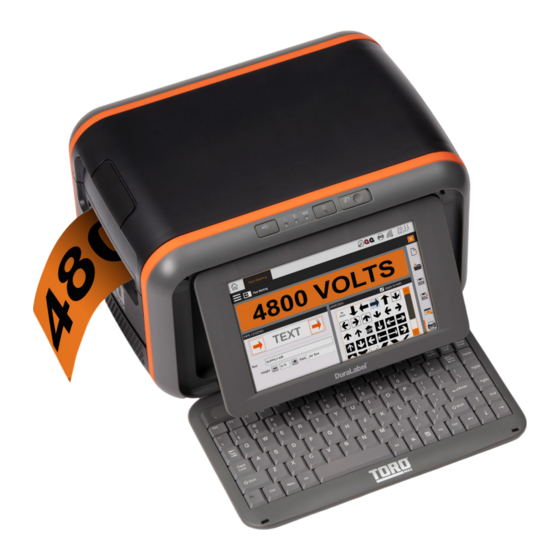

DuraLabel TORO MAX User Manual

Industrial label & sign print system
Hide thumbs Also See for TORO MAX:

Advertisement

Quick Links

Download this manual
INDUSTRIAL LABEL & SIGN PRINT SYSTEM
USER GUIDE
NEXT
800-788-5572 l DuraLabel.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TORO MAX and is the answer not in the manual?

Questions and answers

Related Manuals for DuraLabel TORO MAX

Summary of Contents for DuraLabel TORO MAX

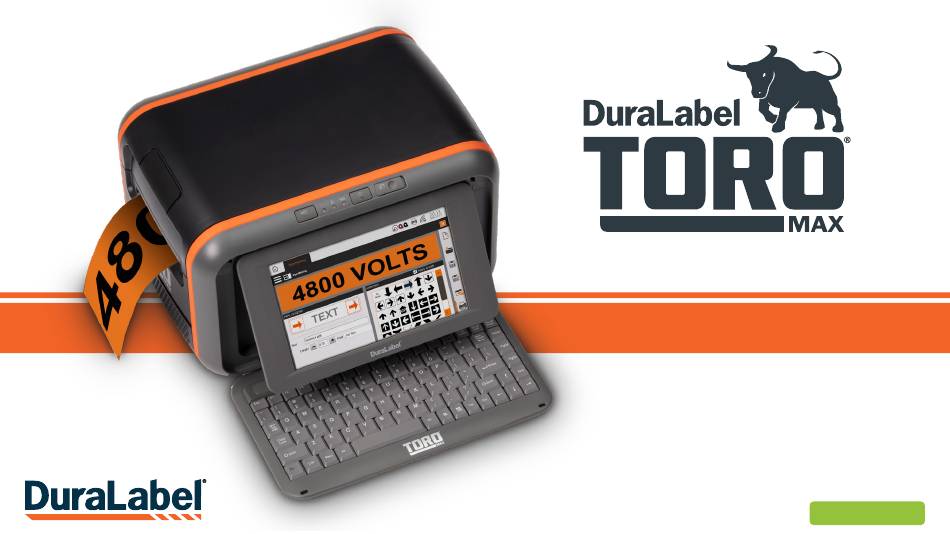

  • Page 1 INDUSTRIAL LABEL & SIGN PRINT SYSTEM USER GUIDE NEXT 800-788-5572 l DuraLabel.com...
  • Page 2  Page 11  Page 12 6. Network Settings .................  Page 13 7. Battery (Optional) ............... toro Max 8. Using Toro Max on a PC (Optional) ..........  Page 14 Interactive User Guide  Page 16 9. Cleaning Toro Max ..............
  • Page 3 This versatile, go-anywhere printer comes with a built-in keyboard and touchscreen for your convenience. Because your Toro Max is a standalone system, you can take it to a remote site, or place it on a cart and use it anywhere in your facility. An...
  • Page 4 • Toro Max supply may build a small static charge during loading or use. Do not operate Toro Max near flammable materials. • Do not attempt to use a Toro (original) battery in your Toro Max; a battery specifically made for the Toro Max is available as an optional accessory. Please contact your DuraLabel representative for more information.
  • Page 5 Toro Max; only manufacturer-supplied updates can be installed. If you would like to USB DRIVE use other software for label design, you can use Toro Max as a desktop with PC Software, FIXING User Guide, and NOTCHED...
  • Page 6 IMPORTANT: To unplug connector, grasp power plug release slider, pull UsB-a Ports (4): Connect away from printer. Do not pull wire. devices (e.g. mouse, flash drive) PREVIOUS NEXT 800-788-5572 DuraLabel.com GettInG to Know yoUr toro Max Page 6...
  • Page 7 Output (I/O) Panel of your Toro Max. The mouse uses a single AA battery and includes ribbon rails its own power switch. If Toro Max does not respond when you use the mouse, make sure that: • USB receiver is still firmly connected to your...
  • Page 8 TORO MAX HOME SCREEN Toro Max home screen appears when you turn the system on, and you can return to it by clicking the Home button. The main menu on the right of the screen lists the general options that are available: Label, Learn, Utilities, Tools, and Settings.
  • Page 9 Updater: View the current software version and easily check for an nfPa/rtK: Create supplemental chemical labels with the NFPA 704 available update (if your Toro Max is connected to the Internet). Updates hazard ratings, using an editable database of chemical details.
  • Page 10 TOOLS SETTINGS Direct access to specific applications on Toro Max. This menu is for your Toro Max system settings. General: Allows the user to change the unit of measure Calculator: Perform basic math functions. (inches or mm), display settings, and privacy settings.
  • Page 11 LOADING RIBBON AND SUPPLY To load your Toro Max with printing ribbon (“ink”) and label stock, you will need to fully raise the hinged cover. Your Toro Max will recognize the supplies you have loaded and automatically adjust its print settings for the best quality. Now you’re ready to design and print custom labels! 1.
  • Page 12 NETWORK SETTINGS Toro Max can be connected to a local network, either wired (Ethernet) or wireless. This will allow the printer to communicate over the network, and to receive print jobs from PCs on the network through the PC version of LabelForge PRO. See LabelForge PRO User Guide for additional information. Toro Max’s RADIUS WIFI network settings can be easily managed with the on-screen controls.
  • Page 13 OLDER BATTERIES If you have a battery for the original DuraLabel Toro system, do not use it in the Toro Max, as the older battery Push the battery in until it locks into place, and was designed to use a separate charging system. Contact return the battery cover door to its position.
  • Page 14 (die-cut supply), or stock with marks CONNECTING THE PRINTER VIA USB (default 2" per second) (black-mark supply). When connecting your Toro Max to a PC for the first time, • 180 Degrees Rotation: choose to rotate all print jobs by 180 follow these steps: The remaining options are for degrees for troubleshooting.
  • Page 15 PC’s list of available printers. PC will need both the printer driver and the LabelForge PRO label design Before continuing, you will need to install the Toro Max driver and the LabelForge PRO software installed.
  • Page 16 IMPORTANT! Always turn power off and disconnect Toro Max from all power sources (including battery) before cleaning or performing maintenance. Wait 5 seconds after cleaning before turning on. Be careful when performing this advanced 1.
  • Page 17 PRINTER BODY • Power to AC Adapter: 100-240 VAC, 50-60 Hz, 2.8A (max) • Dimensions: 13.5”W x 10.25”D x 8.5”H • 12.5 lbs (5.67 kg), excluding supplies/battery Toro Max specifications are subject to change without notice. PREVIOUS NEXT 800-788-5572 DuraLabel.com...
  • Page 18 To obtain a La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es copy please call or email; (800) 788-5572 or info@duralabel.com. posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este...
  • Page 19 This is a comprehensive list of third-party software and libraries used by Toro Max, organized by their license type. The licenses can be found in the Licenses file in Toro Max’s Manuals folder. While the provided software can be updated through the built-in Update utility or through software provided by Graphic Products, no additional user software can be installed on Toro Max.
  • Page 20 DuraLabel representative to ensure correct return procedure: please call 800-788-5572 for details. Graphic Products, Inc. The optional battery packs for the DuraLabel Toro Max, Toro shall not be responsible for any loss or damages incurred during shipping. (original), and Lobo portable systems are warrantied for three years from the date of purchase.
  • Page 21 800-788-5572 DuraLabel.com COPYRIGHT INFORMATION No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of Graphic Products, Inc.
