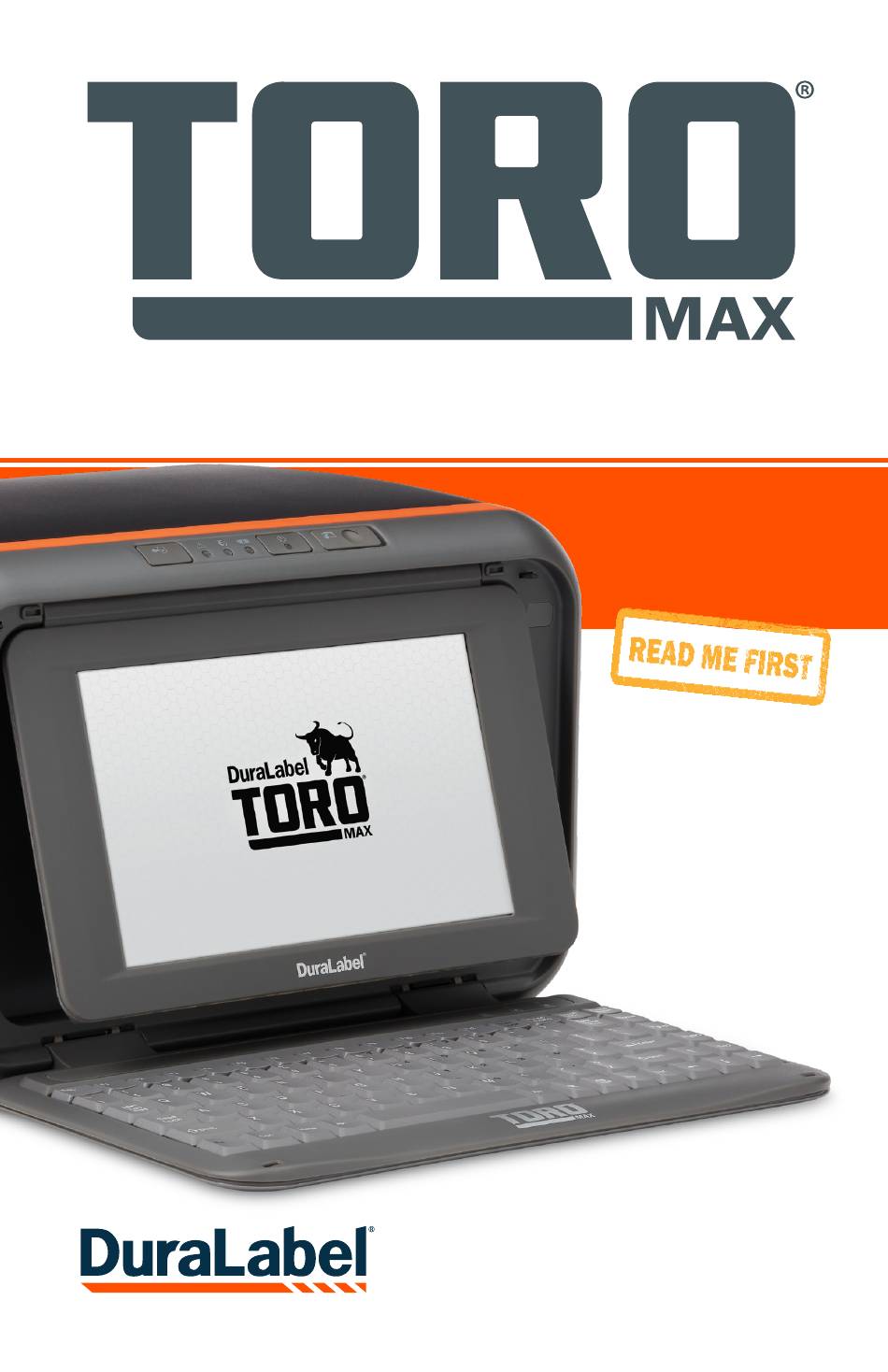

- Page 1 I N D U ST R I A L L A B E L P R I N T E R QUICK START GUIDE 800-788-5572 DuraLabel.com...
-
Page 2: Safety Instructions
• Only qualified service personnel should attempt to repair the printer. • Toro Max supply may build a small static charge during loading or use. Do not operate Toro Max near flammable materials. • Do not attempt to use a Toro (original) battery in your Toro Max; a battery specifically made for the Toro Max is available as an optional accessory. -
Page 3: Getting Started
Toro Max battery (sold separately) shipped in separate box. Initial Setup 1. Place Toro Max printer on a secure, flat surface, with the Control Panel facing you. 2. Plug the AC Adapter into a standard, grounded three-prong wall outlet. Then, plug the other end of the power cord into your Toro Max power socket, ensuring the flat side of the connector is facing up. -
Page 4: Installing The Battery
The screen will pop forward, and you can lift the screen to the desired angle. 5. Press the Power button (on the Control Panel) to turn on your Toro Max. Once the system powers up, use a finger or included stylus to navigate with the touchscreen. -
Page 5: Loading Supplies
LOADING SUPPLIES Learn how to load your Toro Max with printing ribbon (“ink”) and label stock. 1. Lift the cover release 2. Slide the ribbon 3. Slide the movable gray latch and raise the cartridge into the guides apart (A). For cover of the printer;... - Page 6 Periodic cleaning of the print head, cutter blade, movable guides, and black rubber roller will extend the life of the printer and help maintain optimal printing quality. IMPORTANT! Always turn the power off and disconnect Toro Max from all power sources (including the battery, if present) before cleaning or performing maintenance.
-
Page 7: Network Setup
Settings menu from the main screen and choose Networking. 2. To use a wired Ethernet connection, simply connect your Toro Max to the network with an Ethernet cable, and make sure the Ethernet option is switched on (with the slider showing orange). - Page 8 To download the full Toro Max User Guide, visit DuraLabel.info/tm-guide 800-788-5572 DuraLabel.com ©2025 Graphic Products, Inc. All Rights Reserved 01/25...
