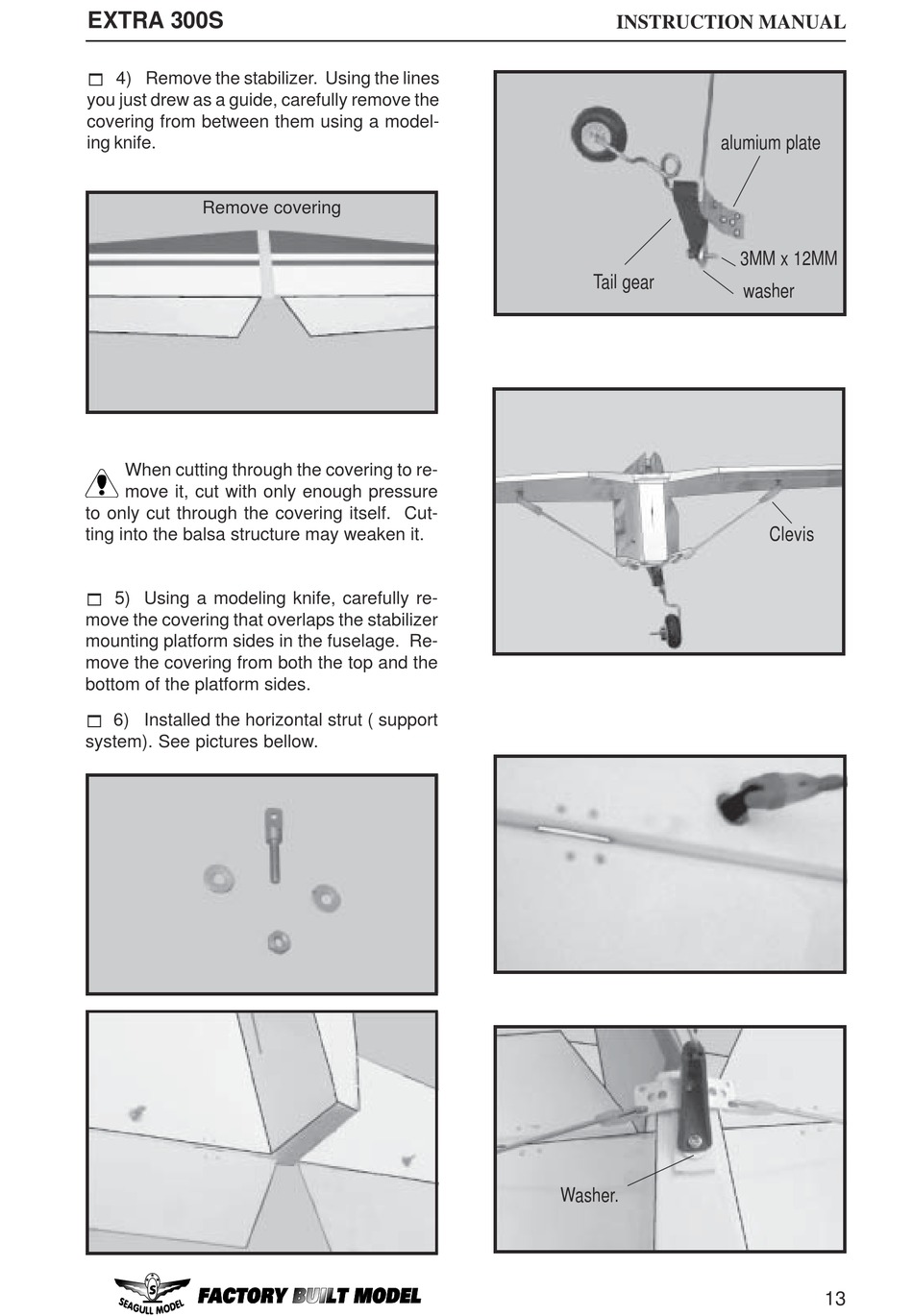

Seagull Models Extra 300S Assembly Manual page 13

EXTRA 300S
! 4) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
Remove covering
When cutting through the covering to re-
move it, cut with only enough pressure
to only cut through the covering itself. Cut-
ting into the balsa structure may weaken it.
! 5) Using a modeling knife, carefully re-
move the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Re-
move the covering from both the top and the
bottom of the platform sides.
! 6) Installed the horizontal strut ( support
system). See pictures bellow.
INSTRUCTION MANUAL
alumium plate
Tail gear
Washer.
3MM x 12MM
washer
Clevis
