Accessories - Icom IC-F60 Instruction Manual

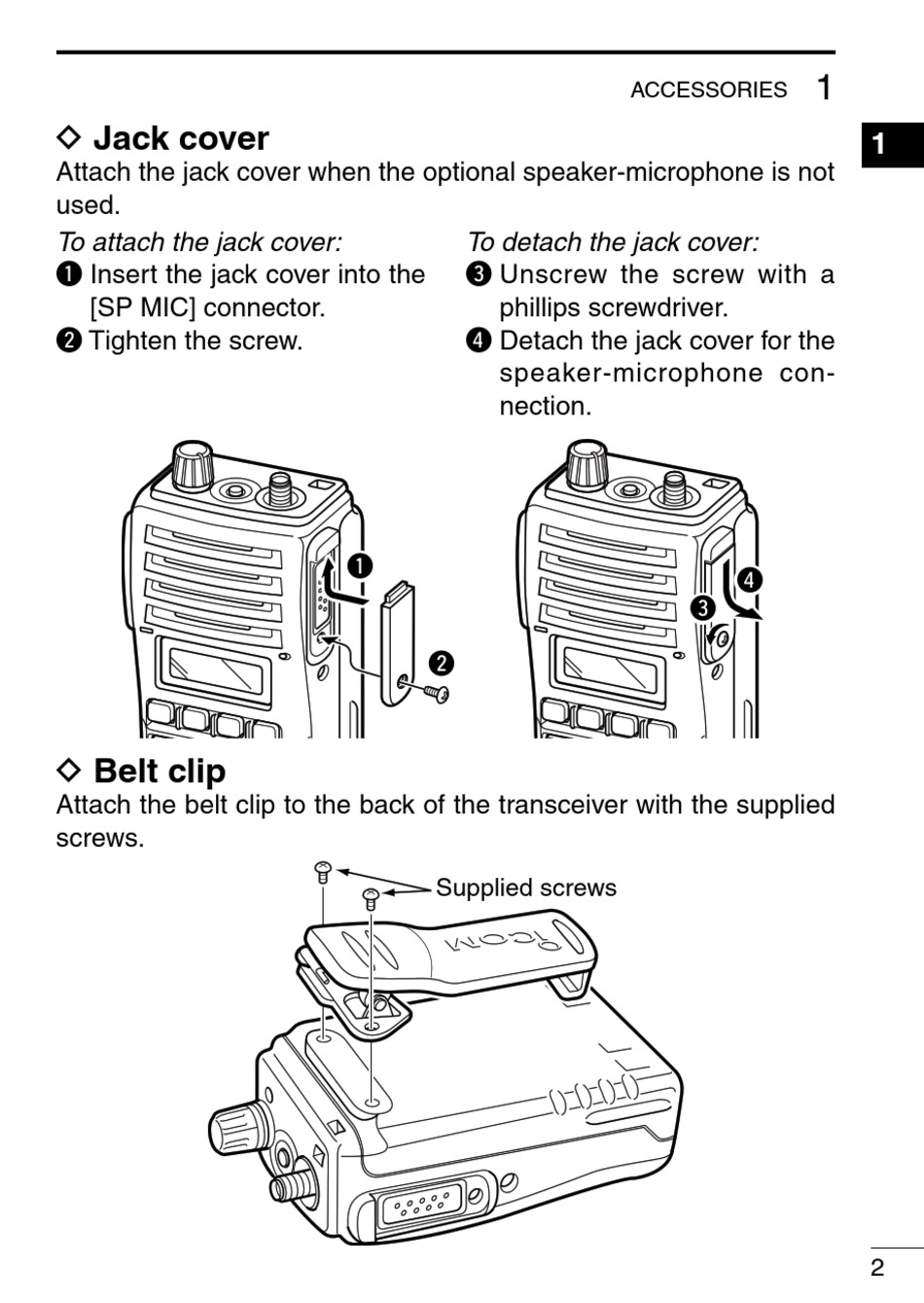

D Jack cover
Attach the jack cover when the optional speaker-microphone is not
used.
To attach the jack cover:
q Insert the jack cover into the
[SP MIC] connector.
w Tighten the screw.
D Belt clip
Attach the belt clip to the back of the transceiver with the supplied
screws.
To detach the jack cover:
e Unscrew the screw with a
phillips screwdriver.
r Detach the jack cover for the
speaker-microphone con-
nection.
q
w
Supplied screws

ACCESSORIES

r
e
1
1
2
