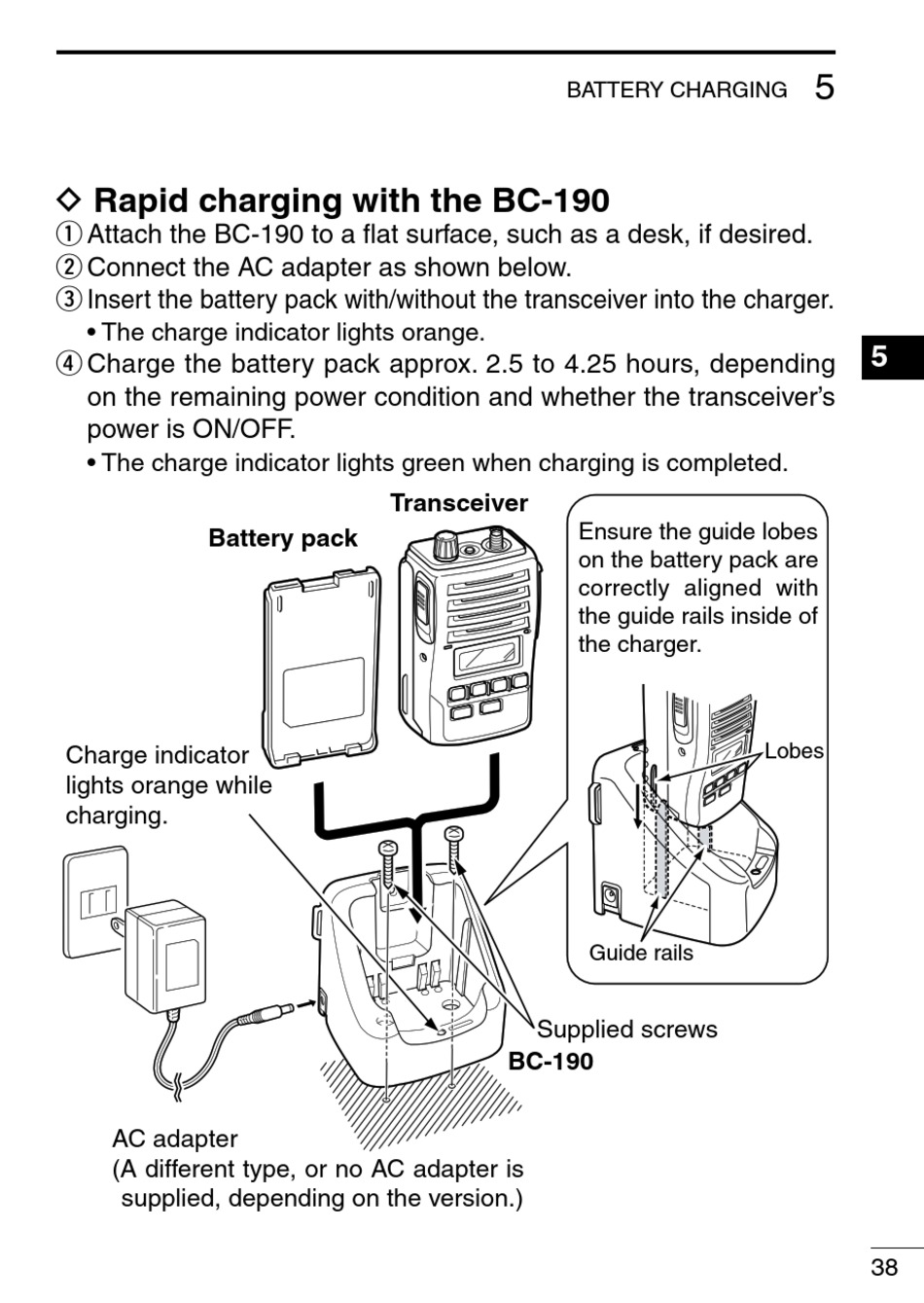

Icom IC-F60 Instruction Manual page 45

D Rapid charging with the BC-190
q Attach the BC-190 to a flat surface, such as a desk, if desired.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the charger.
• The charge indicator lights orange.
r Charge the battery pack approx. 2.5 to 4.25 hours, depending
on the remaining power condition and whether the transceiver's
power is ON/OFF.
• The charge indicator lights green when charging is completed.
Battery pack
Charge indicator
lights orange while
charging.
AC adapter
(A different type, or no AC adapter is
supplied, depending on the version.)
Transceiver
Supplied screws
BC-190
BATTERY CHARGING
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside of
the charger.
Guide rails
5
5
Lobes
