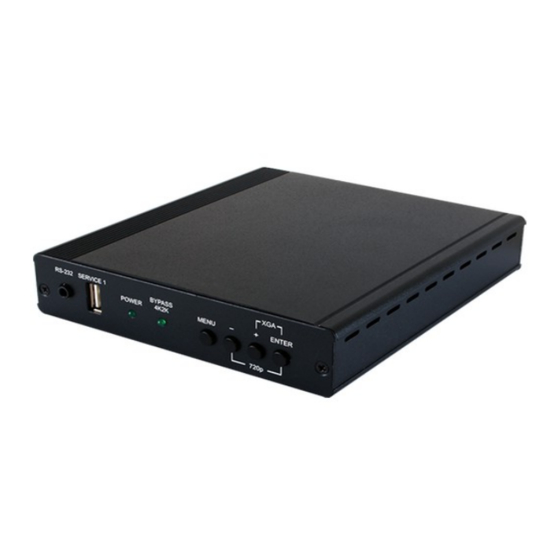

- Page 1 HDMI 4K2K 1x2 SD-HD Scaler - ID# 15338 Operation Manual...
- Page 2 Introduction The 1 by 2 HDMI Scaler is designed to scale both 4K2K and non-4K2K HDMI signal into 1080p and also, bypass 4K2K signal out on to 4K2K display. Allowing all types of HDMI source signal to be display on HDTV/ Monitor.
- Page 3 Input Source Scaler Output Bypass Output 1080p 1080P 1080P 4K2K 1080P 4K2K Note: Displaying HDMI 4Kx2K contents, equivalent source signal and HDMI cable are required on BYPASS output connection. 3. HDMI IN: Connect from HDMI source equipment such as Blu-ray/DVD player with or without 4K2K signal.
- Page 4 OSD Menu Layer Layer Layer Layer Picture Setting Contrast Brightness Fine Tune 0~100 Saturation 0~100 Sharpness 0~100 Off/High/ Middle/ Exit Colour 0~100 Green 0~100 Blue 0~100 Exit Output Setting Size Full/Over Scan/Under Scan/Letter Box/Pan Scan/Best Fit Resolution 640x480/60,800x600/60,1 024x768/60,1280x1024/6 0,1600x1200/60,1366x76 8/60,1680x1050/60,1920x 1200/60,1280x800/60,144 0x900/60,1400x1050/60,1...
- Page 5 Exit Information Input ...x... Output ...x... Version x.xx Exit Connection Diagram...
- Page 6 HDMI Supported Resolutions Input Output 640x480@60 √ √ 640x480@72 √ 640x480@75 √ 720x480@60 √ 720x480i@60 √ 720x576i@50 √ √ 720x576p@50 √ √ 800x600@56 √ 800x600@60 √ √ 800x600@72 √ 800x600@75 √ 1024x768@60 √ √ 1024x768@70 √ 1024x768@75 √ 1280x720@60 √ 1280x720p@60 √...
- Page 7 Specifications Video Frequency 300MHz/9Gbps Input Ports 1 x HDMI, 2 x USB (Service only), 1 x RS-232 (Service only) Output Ports 2 x HDMI HDMI Cable Distance In 15M, Out 15M@1080p/8bit, In 10M, Out 10M@1080p/12bit, In 5M, Out 10M@4K2K Power Supply 5V / 2.6A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection...
