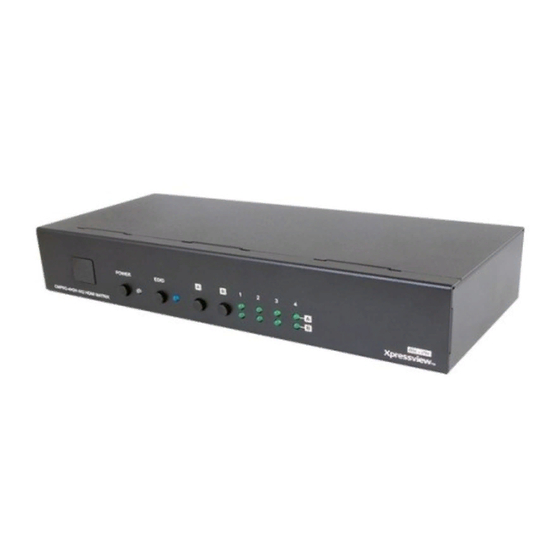

- Page 1 HDMI v1.4 4x2 Matrix 4k2k ID# 15153 Operation Manual...
- Page 2 Introduction The 4 by 2 HDMI Matrix with 4K×2K Support is capable of switching and routing an HDMI signal from any of its four sources to either of two connected HDMI displays allowing any source to be be shown independently on either display. It supports 3D, 'Deep Color' and High Definition lossless audio formats.
- Page 3 Operation Controls and Functions Front Panel IR Window: Accepts the remote control signal of this Matrix only. POWER Button and LED: Press this button to power the Matrix ON/OFF. The LED will light up when the power is ON. EDID Button and LED: When in 'TV' mode, the unit will detect the EDID settings of the display connected to Output A.
- Page 4 Connect to an HDMI TVs/displays or monitors for display of the selected source signal. RS-232: Connect to a PC/laptop or RS-232 control system with a D-sub 9-pin male cable to control the unit with RS-232 commands (see RS232 Commands Section Below). CONTROL: Connect to an active Ethernet link with an RJ45 terminated cable to control the unit with Web GUI (see Web GUI Control Section Below).
- Page 5 RS-232 Commands Command Description A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 Switch Output A B ... to 1~4 at the same AB... 1~AB... 4 time SETIP <IP> <SUBNET> <GW> Setting IP. SubNet. GateWay <Static IP> RSTIP IP configuration was reset to factory default<DHCP>...
- Page 6 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the Matrix's IP address on the web address entry bar (The IP Address can be obtained via RS-232 by using the 'help' command or use the default IP: 192.168.0.1).
- Page 7 Click on the 'Setting' tab allows user to reset the IP configuration. The system will ask for a reboot of the Matrix each time any of the settings are changed. The IP address used to access the Web GUI control will also need to be changed on the web address entry bar.
- Page 8 Connection Diagram...
