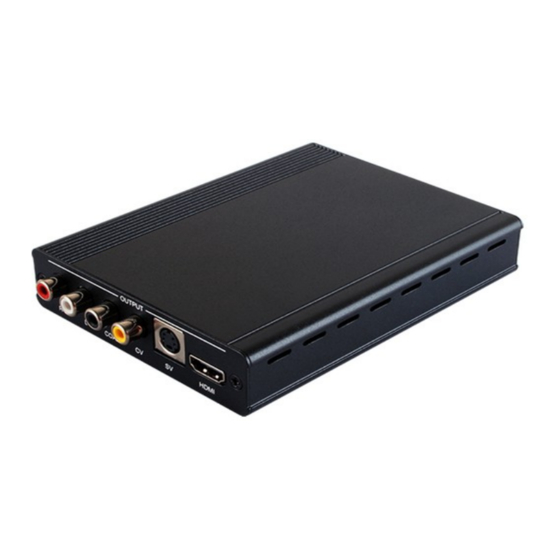

- Page 1 HDMI to CV/SV Scaler with HDMI Bypass (Apple Compatible) - ID# 15340 Operation Manual...
- Page 2 Introduction The HDMI to CV/S-Video Converter is designed to convert the digital signal from HDMI (or DVI) source to analog signal of NTSC or PAL system, with L/R stereo audio. As well as S-Video and Composite video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier.
-
Page 3: Operation Controls And Functions
Operation Controls and Functions Front Panel PAL/NTSC Switch: Select the required format for output display. UnderScan/OverScan Switch: Select the required screen for output display. STD/Apple Switch: Switch to Apple mode when the connected HDMI source equipment is an Apple device (such like Apple TV), otherwise, switch to STD mode. LED: The yellow LED will illuminate when Apple Mode is selected, and the green LED will illuminated for STD mode. -
Page 4: Supported Resolutions
Supported Resolutions HD Resolutions PC Resolutions 480i/p@60 640x4480@60,72,75,85 576i/p@50 720x400@70 720p@50/60 800x600@56,60,72,75,85 1080p@24 1024x768@60,70,75,85 1080i@50/60 1152x864@70,75,85 1080p@50/60 1280x720@60(CVT) 1280x768@60,60(RB) 1280x800@60,60(RB0,75 1280x960@60 1280x1024@60,75 1366x768@60,60(RB) 1400x1050@60,60(RB) 1440x900@60,60(RB),75 1600x900@60(RB) 1600x1200@60 1680x1050@60,60(RB) 1920x1200@60(RB) Note: DVI source input does not support 480i and 576i Supported Audio Audio Output\ AV Source HDMI with Embedded Audio HDMI Bypass... - Page 5 Video and Audio Conversion/Bypass Options INPUT Both video and audio from HDMI source OUTPUT HDMI → Bypass, output original video and audio from HDMI COAXIAL → output digital audio from HDMI CV+R/L Audio → Ouput analog video/ audio converted from HDMI SV+R/L Audio →...
- Page 6 Connection Diagram...
- Page 7 Specifications Input port 1 x HDMI type A, 1 x USB type-B Output Ports 1 x HDMI type A, 1 x Coaxial, 1 x Stereo R/L RAC jack, 1 x Composite-Video RCA jack, 1 x S-Video Power Supply 5V / 2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions 102mm(W) x 146.5mm(D) x 25mm(H)
