- Page 1 HDBaseT HDMI UHD Receiver and Scaler - # 15372 Operation Manual...
- Page 2 Introduction The UHD Scaler is designed to extend and upscale HDMI signal on to two HDMI output displays and one analog audio simultaneously. It supports 4Kx2K, 3D, 36-bit Deep Color, Hi-Def. lossless audio and other features defined by the latest HDMI specifications. Allowing uncompressed video and audio, as well as bi-directional IR control, RS-232 pass through, and LAN serving from a single CAT5e/6/7 cable over 100m of distance.

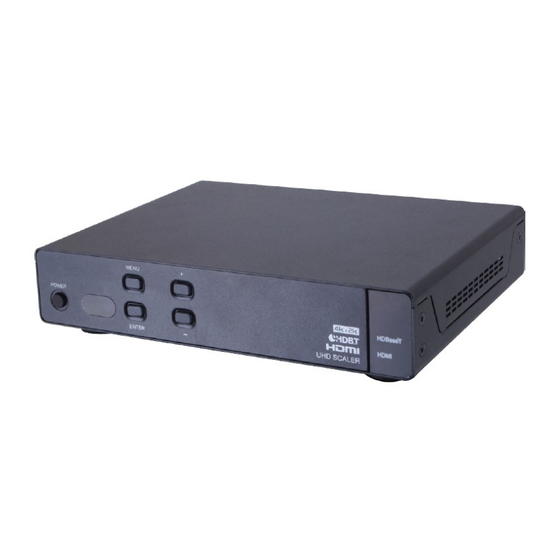

- Page 3 Operation Controls and Front Panel Functions 1. POWER & LED: Press this button to turn ON the device or set the device to standby mode. The LED will illuminate in green when switch to ON. This device contains power last memory and therefore, when the power is connected the device will switch to ON/Standby according to the last status.
- Page 4 Note: Both IR IN and IR OUT signal are sending through CAT5e/6/7 cable and therefore, it does not accept the remote signal included in this package. 5 CAT5e/6/7: Connect to the Transmitter unit with a single CAT5e/6/7 cable for receiving all data signals. 6 AUDIO OUT: Connect to active speaker or audio receiver for audio signal output.
- Page 5 DVI and HDMI Supported Resolutions Input Output 640x480@60 √ √ 640x480@72 √ √ 640x480@75 √ √ 720x480@60 √ √ 720x576p@50 √ √ 800x600@60 √ √ 800x600@72 √ √ 800x600@75 √ √ 1024x768@60 √ √ 1024x768@70 √ √ 1024x768@75 √ √ 1280x720@50 √...
- Page 6 Audio Sampling Rate Up to 192 kHz HDMI input (Up to 192kHz) HDMI output Analog output LPCM 2CH √ LPCM 5.1CH √ LPCM 7.1CH √ Dolby Digital 2~5.1CH/ √ DTS 2~5.1CH Dolby TrueHD/ √ DTS-HD Master Audio Audio Format LPCM 2/5.1/7.1CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio HDMI input HDMI output...
- Page 7 Connection Diagram...
