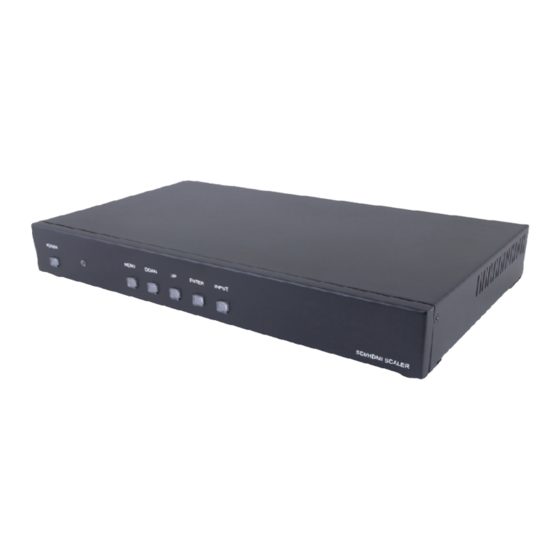

- Page 1 Multi-Sources to SDI/HDMI Scaler Box - ID# 15155 Operation Manual...
- Page 2 Introduction The HDMI/PC/Component/CV to SDI/HDMI Scaler allows you to upscale HDMI/PC/Component/Composite signals to high definition video of HDMI formats (720p@50/60 Hz or 1080p@50/60 Hz) and SDI formats (HD-SDI SMPTE 292M or 3G- SDI 424M/425M), then output to both ports at the same time. Besides scaling features, the device also carries functionalities for it to serve as control center of video wall up to 15×15 total 225 displays showing one single picture together Features...
-
Page 3: Operation Controls And Functions
Operation Controls and Functions Front Panel 1. POWER Press this button to switch on the device(s). All the connected Video wall system control device(s) will be switch to ON. 2. IR Remote Control Sensor 3. MENU Press this button to enter into the OSD menu. 4. -
Page 4: Back Panel
Back Panel 1. SDI/HDMI OUT These slots are where you connect the SDI/HDMI display. Both slots are output simultaneously. 2. HDMI IN Connect the HDMI input port to the HDMI/DVI output ports of your source equipment such as DVD/Blu-ray player or set-top-box. 3. - Page 5 OSD Menu Main Menu Layer MAIN MENU PICTURE MENU*1 STANDARD ON/OFF R OFFSET 0~255 (118) G OFFSET 0~255 (116) B OFFSET 0~255 (118) R GAIN 0~255 (098) G GAIN 0~255 (098) B GAIN 0~255 (098) CONTRAST 0~63 (50) BRIGHTNESS 0~63 (40) SETUP MENU*1 LANGUAGE ENG / T.CHINESE...
-
Page 6: Power Off
Setup TV Option Width: This function is to set the numbers of the TV/ display that is to be on a horizontal line of the TV wall. Setup TV Option Height: This function is to set the numbers of the TV/display that is to be on a vertical line of the TV wall. - Page 7 RS-232 Pin Assignments RS-232 IN RS-232 OUT Assignment Assignment Connect to pin 8 Connect to pin 8 Connect to pin 7 Connect to pin 7 Baud Rate: 19200 bps Data bit: 8-bit Parity: None Stop Bit: 1 Flow Control: None RS-232 Commands Commmand Action...
-
Page 8: Specifications
Specifications SDI Transmission Rates 2.970 Gbps, 2.971/1.001 Gbps, 1.485 Gbps and 1.485/1.001 Gbps Video Bandwidth 148 MHz Input Ports 1×HDMI (Type A connector), 1×PC with Audio, 1×Component with R/L, 1×Composite with R/L Output port 1×SDI (SD/HD/3G-SDI), 1×HDMI SDI Cable Distance 3G/HD/SD up to 100/200/300 meters with BELDEN 1694A cable HDMI Cable Distance... -
Page 9: Connection Diagram
Connection Diagram...
