- Page 1 VGA WUXGA to 1080p HDMI Video Scaler # 15319 Operation Manual...
- Page 2 Introduction The VGA to HDMI Video Scaler is designed to scale an analog video signal from a PC source to a digital HDMI output in a wide-range of HD and PC resolutions (up to 1080p/WUXGA RB). In addition to video scaling, the unit can convert an analog stereo audio input to digital and embed it in the HDMI output as 2-channel LPCM.

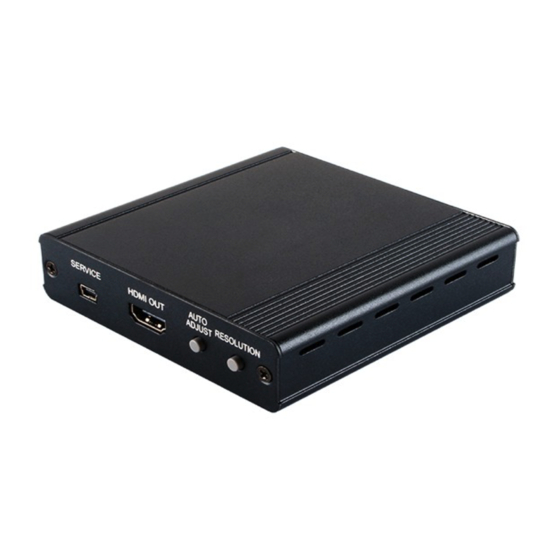

- Page 3 Operation Controls and Functions Front Panel 1. SERVICE: Manufacturer use only. HDMI OUT: Connect the HDMI output to the HDMI input of a display or AV receiver. AUTO ADJUST: Press this button to auto adjust the image position when it does not fit the screen properly. RESOLUTION: Repeatedly press this button to cycle through the resolutions to select the required output (see section on Supported...
- Page 4 Specifications Input Ports 1×VGA (D-sub 15-pin), 1×3.5 mm Mini-jack Output Port 1×HDMI Input Resolution Up to WUXGA (1920×1200@60RB) Output Resolution Up to 1080p & WUXGA (1920×1200@60RB) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions 102mm(W)×111mm(D)×25mm(H) Weight 244g Chassis Material Aluminum Silkscreen Color Black...
- Page 5 Supported Resolution INPUT(PC) OUTPUT(HDMI) VGA (640×480@60/72/75Hz) Native SVGA (800×600@56/60/72/75Hz) 640×480@60Hz XGA (1024×768@60/70/75Hz) 800×600@60Hz XGA+ (1152×864@75Hz) 1024×768@60Hz 1280×720@60Hz 1280×1024@60Hz 1280×768@60/60Hz (RB) 1600×1200@60Hz 1280×800@60/60Hz (RB) 1366×768@60Hz 1280×960@60Hz 1680×1050@60Hz 1280×1024@60/75Hz 1920×1200@60Hz (RB) 1360×768@60Hz 1280×800@60Hz SXGA (1400×1050@60Hz) 1440×900@60Hz WXGA (1440×900@60Hz) 1400×1050@60Hz UXGA (1600×1200@60Hz) 1600×900@60Hz WSXGA (1680×1050@60Hz) 480i@60Hz 1920×1080@60Hz...
- Page 6 Connection Diagram...
