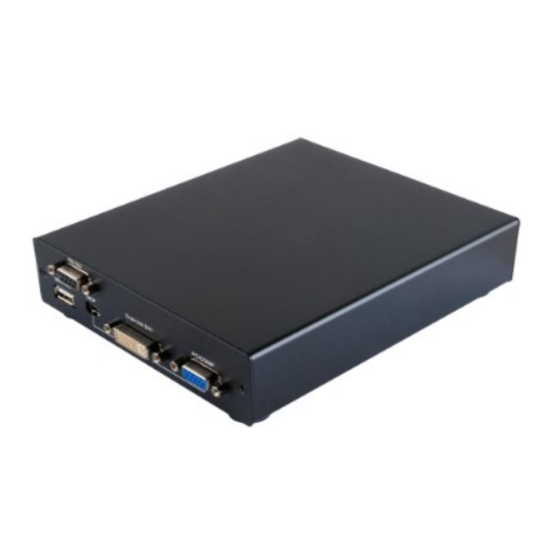

- Page 1 Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler - ID# 15342 Operation Manual...
- Page 2 Introduction This HD High Resolution Scaler can switch and convert Dual-link DVI, Mini DisplayPort and VGA/Component Video inputs to an HDMI output, along with their associated audio signals. With the ability to scale a wide range of resolutions, the operation of all features can be easily handled through on- panel controls, IR remote control, or by RS-232 protocol.
-
Page 3: Optical Out
Operation Controls and Functions Front Panel 1. MENU/ENTER: Press this button to ENTER the On-screen Display (OSD) menu. Press again to confirm the selection. 2. MINUS (-)/IN: When in the OSD menu, press this button repeatedly to move down through the menu. When not in the OSD menu, press this button to quickly select the required input. - Page 4 Back Panel 1. RS232: Connect to a PC or RS-232 control system with a D-sub 9-pin cable for RS- 232 control. 2. SERVICE: Manufacturer use only. 3. MDP IN: Connect to a DisplayPort source device such as a PC/Laptop with a mini- DisplayPort cable.
- Page 5 Press to show the output resolution table. 9. NATIVE: Press to switch to the native resolution. RS-232 Protocols Scaler Remote Control Definition Definition ◄ ► Baud Rate: 19200 bps Data Bit: 8 bits Parity: None Stop Bit: 1 bit Flow Control: None RS-232 Commands Command Description...
- Page 6 INFO ? Info.OSD Status INFO ON Info.OSD On INFO OFF Info.OSD Off INFO DISPLAY Info.OSD On/Of OUTPUT ? Output Status 480P Output in 480P 720P Output in 720P 1080P Output in 1080P Output in VGA (640x480) SVGA Output in SVGA (800x600) Output in XGA (1024x768) SXGA Output in SXGA (1280x1024)
- Page 7 Mute Exit Output Resolution 720×480P 1280×720P 1920×1080P 640×480 800×600 1024×768 1280×1024 1600×1200 1920×1200 1280×800 By Native Exit EDID Mode Internal External Exit Info. OSD Mode Exit About CS-802D FW Ver. Factory Reset System Reset Exit Exit...
- Page 8 Specifications Mini DisplayPort Video 2.7 Gbps & 1.62 Gbps/Lane Bandwidth Input Ports 1×Dual-link DVI, 1×Mini DisplayPort, 1×VGA (D-sub 15-pin), 1×Optical, 1×3.5mm Mini- jack Output Ports 1×HDMI, 1×Optical, 1×3.5mm Mini-jack Power Supply 5 V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
- Page 9 Connection Diagram...
- Page 10 Supported Input Resolutions Input Resolution COMP 640×350@85 √ √ √ 640×400@85 √ √ √ 720×400@85 √ √ √ 640×480 (VGA)@60, 72, 75, 85 √ √ √ 800×600 (SVGA) @56, 60, 72, 75, √ √ √ 85, 120RB 848×480@60 √ √ √...
- Page 11 1080i@50, 60 √ 1080p@24, 30, 50, 60 √ 2048×1080@@50, 60 √ √ √ 2048×1152@@60RB √ √ 2560×1600@60RB √ √ Supported Output Resolutions Output Resolution 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1200@60, 1280×800, 720×480p, 1280×720p (Default), 1920×1080p Note: When the output resolution is set to 'By Native' but it does not match the built-in supported resolution, the output resolution will automatically be set to the default of 1280×720p.
