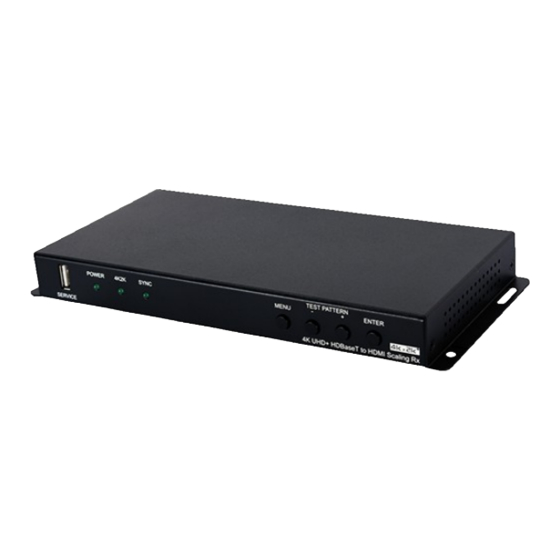

Hdbaset to dual 4k hdmi scaler with audio re-embedding
Hide thumbs

Advertisement

Quick Links

Download this manual
HDBaseT to Dual 4K HDMI Scaler with
Audio Re-embedding - ID# 15462
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 15462 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Converters.TV 15462

Summary of Contents for Converters.TV 15462

  • Page 1 HDBaseT to Dual 4K HDMI Scaler with Audio Re-embedding - ID# 15462 Operation Manual...
  • Page 2 Introduction This HDBaseT to HDMI Scaler can receive uncompressed audio/video along with control, Ethernet, and extra audio data over a single run of Cat.5e/6/7 cable up to 100m. While the HDBaseT input is limited to a maximum of 4K@60Hz (4:2:0), this unit can automatically convert or scale the input to output at 4K@60Hz (4:4:4) depending on the detected capability of the connected display.
  • Page 3 Note: When displaying 4K HDR, or an equivalent signal, an appropriate display is required in order to obtain the best image. The use of “ Premium High Speed HDMI” cables is highly recommended. Applications • Live events needing dual output formats and signal extension •...

  • Page 4: Test Pattern

    TEST PATTERN +/-: Outside of the OSD, press these buttons to select a pattern to instantly display on the outputs. Press and hold both buttons simultaneously to instantly switch the test pattern output timing to 1280x720@60Hz. Within the OSD menu, press to move up and down or adjust selections within menus.

  • Page 5: Audio Out

    (Optical Audio Return) feature. HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. The selected output resolution can be different for each HDMI port. A test pattern can also be displayed. AUDIO OUT: Connect to powered speakers, an audio amplifier, mixer, or DSP for balanced stereo analog output extracted from an HDMI source with LPCM 2.0 audio.
  • Page 6 OSD Menu level level level level OUTPUT OUTPUT A INPUT 4K2K PASS THROUGH DOWN 1080P 4K2K(RGB444) 4K2K(YUV444) AUTO OUTPUT B INPUT 1080P PASS THROUGH UP 4K2K 4K2K(YUV420) INPUT 4K2K PASS THROUGH 4K2K(RGB444) 4K2K(YUV444) 4K2K COLOR AUTO EDID INTERNAL YES/NO 4K(3G-2CH) INTERNAL YES/NO 4K(420-2CH)
  • Page 7 SUPPORT OFF REFER TO SOURCE REFER TO DISPLAY DISPLAY INFO OSD TIME 5 SEC. 10 SEC. 15 SEC. 20 SEC. 25 SEC. 30 SEC. 35 SEC. 40 SEC. TEST PATTERN MODE AUTO PATTERN AUTO TIMING PATTERN WHITE COLOR RED COLOR GREEN COLOR BLUE COLOR MAGENTA...
  • Page 8 720X576P@50 1280X720P@50 1280X720P@60 1920X1080P@50 1920X1080P@60 3840X2160P@24 3840X2160P@25 3840X2160P@30 4096X2160P@24 4096X2160P@25 4096X2160P@30 HDCP DISABLE ENABLE SWITCH TIME 10 SEC 20 SEC 30 SEC 40 SEC 50 SEC 1 MIN. 2 MIN. 3 MIN. 5 MIN. AUTO 720X480P@60 YES/NO TIMING 720X576P@50 YES/NO SELECT 1280X720P@50 YES/NO...
  • Page 9 4096X2160P@25 YES/NO YES/NO 4096X2160P@30 PREVIOUS PAGE TEST PATTERN MODE AUTO PATTERN AUTO TIMING PATTERN WHITE COLOR RED COLOR GREEN COLOR BLUE COLOR MAGENTA COLOR YELLOW COLOR CYAN COLOR COLOR BAR RAMP TOGGLE RESOLUTION 720X480P@60 720X576P@50 1280X720P@50 1280X720P@60 1920X1080P@50 1920X1080P@60 3840X2160P@24 3840X2160P@25 3840X2160P@30 4096X2160P@24...
  • Page 10 3840X2160P@60 4096X2160P@50 4096X2160P@60 HDCP DISABLE ENABLE SWITCH TIME 10 SEC. 20 SEC. 30 SEC. 40 SEC. 50 SEC. 1 MIN 2 MIN 3 MIN 5 MIN AUTO 720X480P@60 YES/NO TIMING 720X576P@50 YES/NO SELECT 1280X720P@50 YES/NO 1280X720P@60 YES/NO 1920X1080P@50 YES/NO 1920X1080P@60 YES/NO NEXT PAGE 3840X2160P@24...
  • Page 11 OUTPUT A OUTPUT B HDCP OUTPUT A DISABLE/ENAB OUTPUT B DISABLE/ENAB FIRMWARE SYSTEM VX.XX VERSION VALENS VX.XX.XX.X VERSION FIRMWARE UPDATE FACTORY SETTING UP 4K2K Input → Output conversion rules 1920x1080p@24Hz → 3840x2160@24Hz 1920x1080p@25Hz → 3840x2160@25Hz 1920x1080p@30Hz → 3840x2160@30Hz 1920x1080p@50Hz → 3840x2160@50Hz 1920x1080p@60Hz →...
  • Page 12 3840x2160@25Hz (RGB, YCbCr 4:4:4, YCbCr 4:2:2) → 3840x2160@25Hz (RGB) 3840x2160@30Hz (RGB, YCbCr 4:4:4, YCbCr 4:2:2) → 3840x2160@30Hz (RGB) 3840x2160@50Hz (RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0) → 3840x2160@50Hz (RGB) 3840x2160@60Hz (RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0) → 3840x2160@60Hz (RGB) 4096x2160@24Hz (RGB, YCbCr 4:4:4, YCbCr 4:2:2) →...
  • Page 13 4096x2160@50Hz (RGB) → 4096x2160@50Hz (RGB) 4096x2160@60Hz (RGB) → 4096x2160@60Hz (RGB) (2) If the input is YUV 4:4:4, and the output can support it, then the output will be YUV 4:4:4. If the input is YUV 4:4:4, and the output can’t support it, then the output will be converted to RGB.
  • Page 14 YCbCr 4:2:0) Default settings are in Italic bold font Note: When input timing is non-VESA compliant the OSD may be disabled. To get into the OSD menu in this case, please press the hot key combination to enter into test pattern mode and operate the OSD menu while the test pattern is displaying.
  • Page 15 Connection Diagram...
  • Page 16 Video Supports Specification DVI and HDMI Supported (Hz) Input Output 720x480i@60 √ √ 640x480p@60 √ √ 720x576i@50 √ √ 720x576p@50 √ √ 800x600@56/60/72/75/85 √ √ 1024x768@60/70/75/85 √ √ 1280x720p@50/60 √ √ 1280x768@60/75 √ √ 1280x800@60/75 √ √ 1280x1024@60/75 √ √ 1366x768@60 √...
  • Page 17 Compatible Transmitter family Device HDBaseT TX Power ID# 15461 (CSC-6012TX ) 24V(PSE) ID# 15179 (CH-513TXL) (CH-507TX) 24V(BD) ID# 15374 (CH-1527TX) 48V(PSE) ID# 15426 (CH-1529TX) 48V(PSE) CAT5eCat.5e/6/7 Cable Specification Cable Range Pixel Clock Video Data Supported Video Type Rate Rate Formats 100m Up to 1080p@60 CAT5e/6/7...
