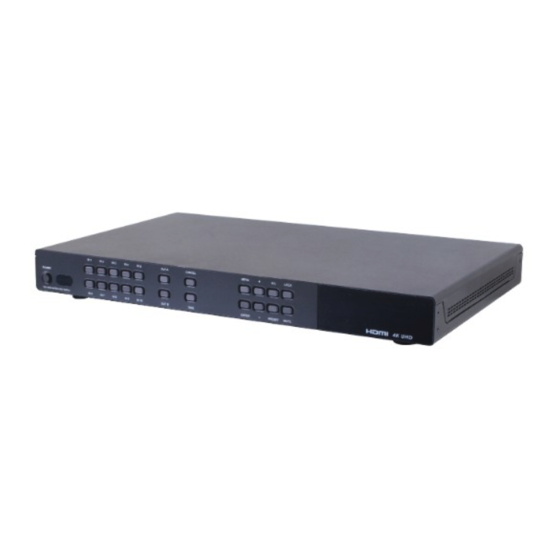

- Page 1 10 input × 2 output HDMI UHD Matrix with Fast Switching - # 15367 Operation Manual...
- Page 2 Introduction This 10 by 2 HDMI UHD Matrix is an advanced solution for switching up to 10 HDMI inputs to two HDMI outputs. It provides high performance pass- through of video/audio and is capable of receiving and transmitting 300MHz/9Gbps bandwidth rate with no data loss. It’s Fast Switching technology can greatly reduce the time required to swap between inputs.
-
Page 3: Power Led
Operation Controls and Front Panel Functions POWER Button Press this button to switch On or set the device to standby mode. POWER LED This LED will illuminate in green when the device is power On and if it is switched to standby mode the LED will turn red. IR Window This IR Receiver receives the remote control signal from the package included remote control only. - Page 4 Preset2 → IN2 → OUTA → IN8 → OUTB → IN7 → ENTER Press this button to select all outputs to display with an input source. e.g. To select all output with input source 3. ALL → IN3 MUTE Press this button to mute video and audio on OUT A or B or on all output.
- Page 5 Remote Control POWER Press this button to switch On or set the device to standby mode. MUTE Press this button to mute video and audio on OUT A or B or on all output. e.g. To mute output A OUTA → MUTE OUT A/B Press these buttons once a time along with an IN buttons to select...
- Page 6 Press this button to select all outputs to display with an input source. e.g. To select all output with input source 3. ALL → IN3 OSD Menu Main Menu Sub Menu Description Default EDID Mode All Input port is using same EDID. In menu “EDID All”, can select suitable EDID.
- Page 7 color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, AC3/4K2K Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, Y420 Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, AC3/Y420 Content: deep color/2D3D/audio/ native resolution Exit EDID IN1 Same EDID All Select Input 1’s EDID Same EDID All EDID IN2 Same EDID All Select Input 2’s EDID Same EDID All EDID IN3...
- Page 8 Exit To reset the Preset setting, select a Preset from 1~10 then press OUTA and select an input from 1~10 then press OUTB and select an input from 1~10 again and press ENTER to confirm the selection. HDCP Input IN1 Standard/ Set IN1 in Apple/ Standard Apple...
- Page 9 Get IP Mask Get Netmask Gate Get Gateway System MAC Address - Exit Source IN1 On/Off , IN1, IN2 detect Detection IN2 On/Off source with/without (Detect the signal Source’s IN3 On/Off , IN3, IN4 detect 5V-pin only IN4 On/Off source with/without the signal IN5 On/Off , IN5, IN6 detect...
- Page 10 number and FW version Update FW Update Exit Factory Do Reset Do system Reset Reset Exit Exit RS-232 Protocols Switch Remote Control Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 IR Pin Definitions...
- Page 11 IP Searching Software Application and Installation Please download the software from www.c onverters.tv with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the Control System with PC/Laptop through the Ethernet port through an active network system and open the CDPS V2.000 application.
- Page 12 Telnet & RS-232 Commands Command Name Description Description of Parameter Power Off (Standby) NONE Power On NONE Set Output A Source N=1-10 Set Output B Source N=1-10 Set All Outputs N=1-10 Source IPGONFIG Display The NONE Current IP Configure SIPADDR XXX.XXX. Set Ethernet IP XXX=0~255 XXX.XXX...
- Page 13 HDCPIN N1 N2 Set Input N1 HDCP N1=1-10 N2=0(OFF), On/Off 1(ON) Show All Preset PRESET NONE Configure PRESET N1 Set Preset N1 N1=1-10 Source to Outputs PRESET N1 N2 Set Preset N1 N1=1-10 N2=AXBX Configure (X=01-10,0M) SOURCEDET Show All Input NONE Signal SOURCEDET N1...
- Page 14 Telnet Control To access the telnet control in Windows 7, click on ‘Start’ menu and type “cmd” in the Search field then press enter. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “ cmd” and press enter. Under Mac OS X, go to Go →...
- Page 15 Type HELP or ? to bring out all the commands. Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly. Web Gui Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (available inside the OSD menu) on the web address...
- Page 16 Click on Status for input and output and Preset selection. Click on IO Status to view connection status and output EDID information and to rename input and output ports...
- Page 17 Click on Matrix Control to set the EDID mode for each and all inputs. Click on Settings to set each input’s HDCP Control and Preset Configuration.
- Page 18 Click on Network Configuration to set the device’s IP configuration. Once the changes are saved the system will reset the IP address on device automatically and user will need to re-enter the IP address to continue the WebGUI function Specifications Video Bandwidth 300MHz / 9Gbps Input Ports...
- Page 19 DVI and HDMI Supported Resolutions Input Output 640x480@60/72/75 √ √ 720x480@60 √ √ 720x576p@50 √ √ 800x600@60/72/75 √ √ 1024x768@60/70/75 √ √ 1280x720@50/60 √ √ 1280x720p@60 √ √ 1280x768@60 √ √ 1280x800@60 √ √ 1280x1024@60 √ √ 1360x768@60 √ √ 1600x1200@60 √...
- Page 20 Connection Diagram...
