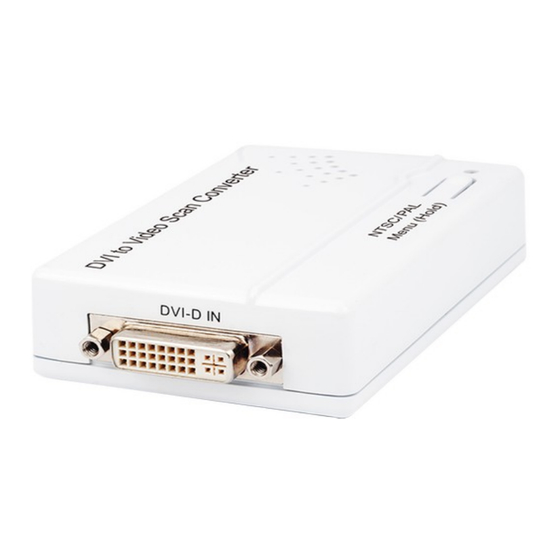

- Page 1 DVI-D to PAL NTSC Composite Video Scan Converter - ID# 15343 Operation Manual...
- Page 2 Introduction The DVI to Video Scan Converter is designed to convert the digital video signal from DVI-D sources to analog composite (CVBS) signal (NTSC or PAL). It is HDMI and DVI compliant and has many great features such like 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more.
- Page 3 Operation Controls and Functions Top Panel 1. NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL or from PAL to NTSC.
- Page 4 Back Panel 1. CV OUT: Connect to the output display TV or monitor with RCA cable for display of the converted composite (CVBS) signal. 2. DV5V: Plug the 5V DC power supply included in the package into the unit and connect the adaptor to an AC wall outlet OSD Menu Press the Menu button once to bring up the OSD and display the input (IN) and Output (OUT) information.
- Page 5 Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9. Full Screen: To allow the image to fill the screen of the TV. Letterbox: To fit a 16:9 formatted video signal on a 4:3 display. Horizontal Black bars will be displayed above and below the image Pan &...
- Page 6 Supported Input Timing HD Timing 480p 576p 720p 50/60 1080i 50/60 1080p 50/60 PC Timing 640x480 60/72/75/85 720×400 800×600 56/60/72/75/85 1024×768 60/70/75/85 1152×864 70/75/85 1280×720 1280×768 60/60 (RB) 1280×800 60/60 (RB) 1280×960 1280×1024 1366×768 60/60 (RB) 1400×1050 60/60 (RB) 1440×900 60/60 (RB) 1600×1200 1680×1050...
- Page 7 Specifications Input Port 1×DVI-D Output Ports 1×CVBS Output Video NTSC/PAL ESD Protection Human body model: ±8kV (air-gap discharge) ±6kV (contact discharge) Power Supply 5V DC/1A linear power adaptor (US/EU standards, CE/FCC/UL certified) Dimensions 64 mm (W)×104 mm (D)×26 mm (H) Weight 120 g Chassis Material...
