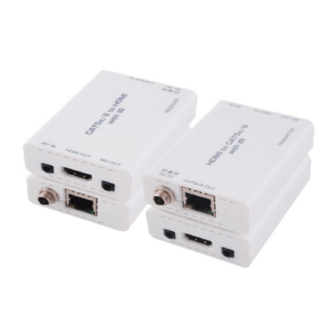

- Page 1 HDBaseT-Lite HDMI over CAT5e/6/7 Transmitter and Receiver with IR and high - # 15353 Bandwidth Operation Manual...
- Page 2 Introduction The HDMI Extender over single CAT5e/6 incorporating IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) and supports High Definition Audio and 3D signals. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6 cable.
-
Page 3: Operation Controls And Functions
Operation Transmitter Front and Rear Panels Controls and Functions IR1 OUT/Blaster Connect to the supplied IR Blaster for IR signal transmission to the source equipment from IR1 IN's IR signal. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. - Page 4 Receiver Front and Rear Panels DC 5V Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. CAT5e/6 IN Connect to theTransmitter unit with a single CAT5e/6 cable for transmission of all data signals. The yellow LED will illuminate when both Transmitter and Receiver are connected together with power supply.
- Page 5 IR Pin Assignment Specifications Video Bandwidth 340 MHz/10.2 Gbps Transmitter Inputs 1×HDMI, 1×IR Extender Outputs 1×RJ45, 1×IR Blaster Receiver Inputs 1×RJ45, 1×IR Extender Outputs 1×HDMI, 1×IR Blaster ESD Protection Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply 2×5 V/2.6 A DC (US/EU standards, CE/ FCC/UL certified) Dimensions...
- Page 6 Connections...
