EVAL-CN-304-SDZ Evaluation Board User Guide
EVALUATION BOARD SOFTWARE
INSTALLING THE SOFTWARE
The
EVAL-CN-304-SDZ
evaluation kit includes the software and
drivers on a CD. The software is compatible with Windows® XP,
Windows Vista, and Windows 7.
To install the software, follow these steps:
1.
Install the software before connecting the
board to the USB port of the PC.
2.
Start the Windows operating system and install the
software from the
EVAL-CN-0304-SDZ
EVAL-SDP-CB1Z
evaluation kit CD.

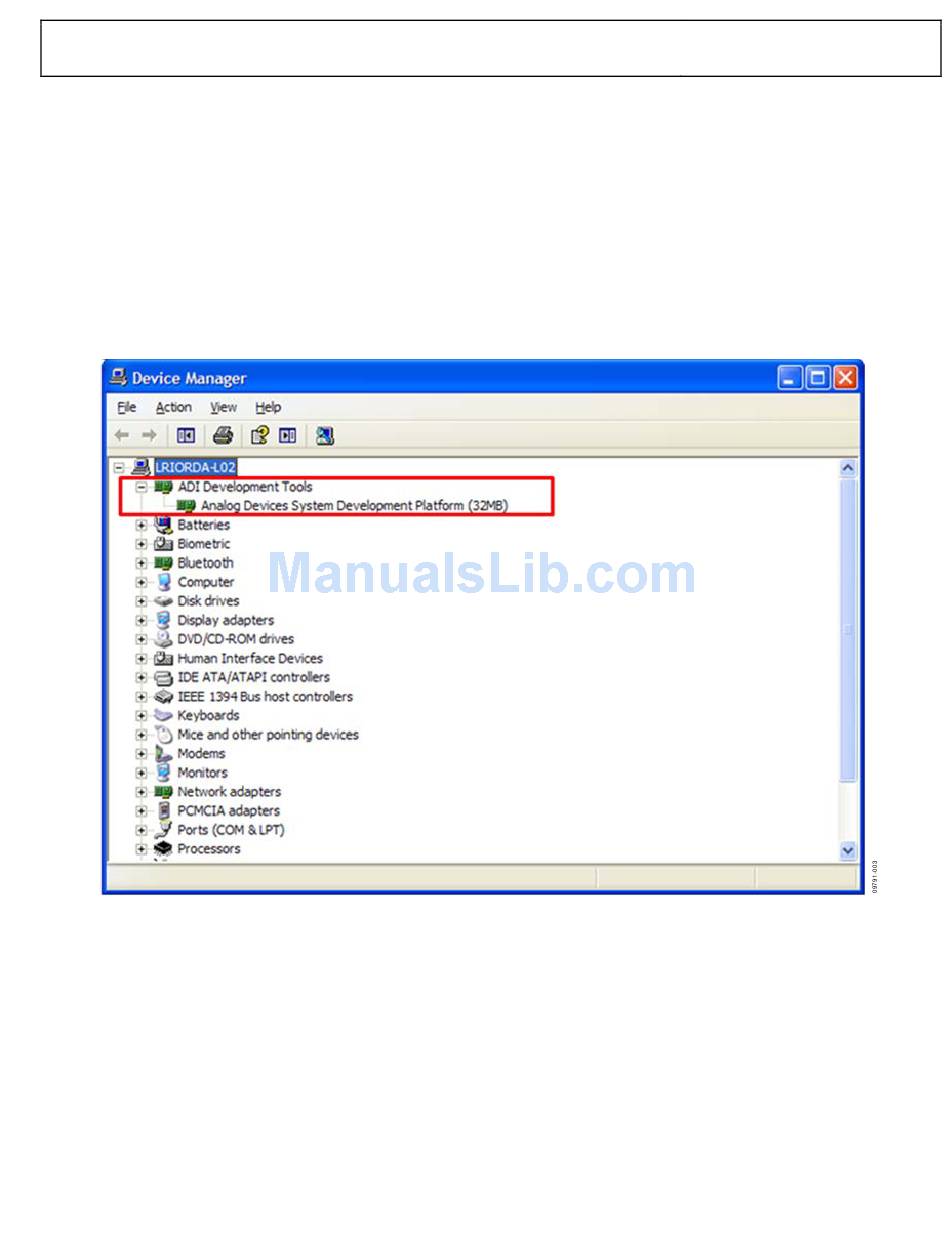

Figure 2. Hardware Device Manager Window with the
3.
After installation of the software and drivers is complete,
plug the
EVAL-CN-304-SDZ
board, and then plug the
PC using the USB cable included in the box.
4.
When the software detects the evaluation board, proceed
through any dialog boxes that appear to finalize the
installation (Found New Hardware Wizard/Install the
Software Automatically and so on).
EVAL-SDP-CB1Z
Rev. B | Page 3 of 12
into the
EVAL-SDP-CB1Z
EVAL-SDP-CB1Z
Board Plugged In
UG-266
board into the
