5.8

TIG welding

5.8.1

Preparing the TIG welding torch

The TIG welding torch is to be equipped to suit the relevant welding task!
•
Fit suitable tungsten electrodes and
•
an appropriate shielding gas nozzle.
•
Observe the operating instructions for the TIG welding torch!
5.8.2

Welding torch and workpiece line connection

Item Symbol
1
2
3
4
5
•
Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
•
Insert the polarity selection plug into the "-" welding current connection socket and lock in place by
turning to the right.
•
Insert the plug of the workpiece lead into the "+" welding current connection socket and lock in place
by turning to the right.
099-005114-EW501
12.03.2015
Description 0
Welding torch
Welding torch connection (Euro torch connector)
Welding current, shielding gas and torch trigger integrated
Workpiece
Connection socket, "+" welding current
•
TIG welding:
Polarity selector plug, welding current cable
Internal welding current cable for central connection/welding torch.
• Connection socket for "-" welding current
Design and function

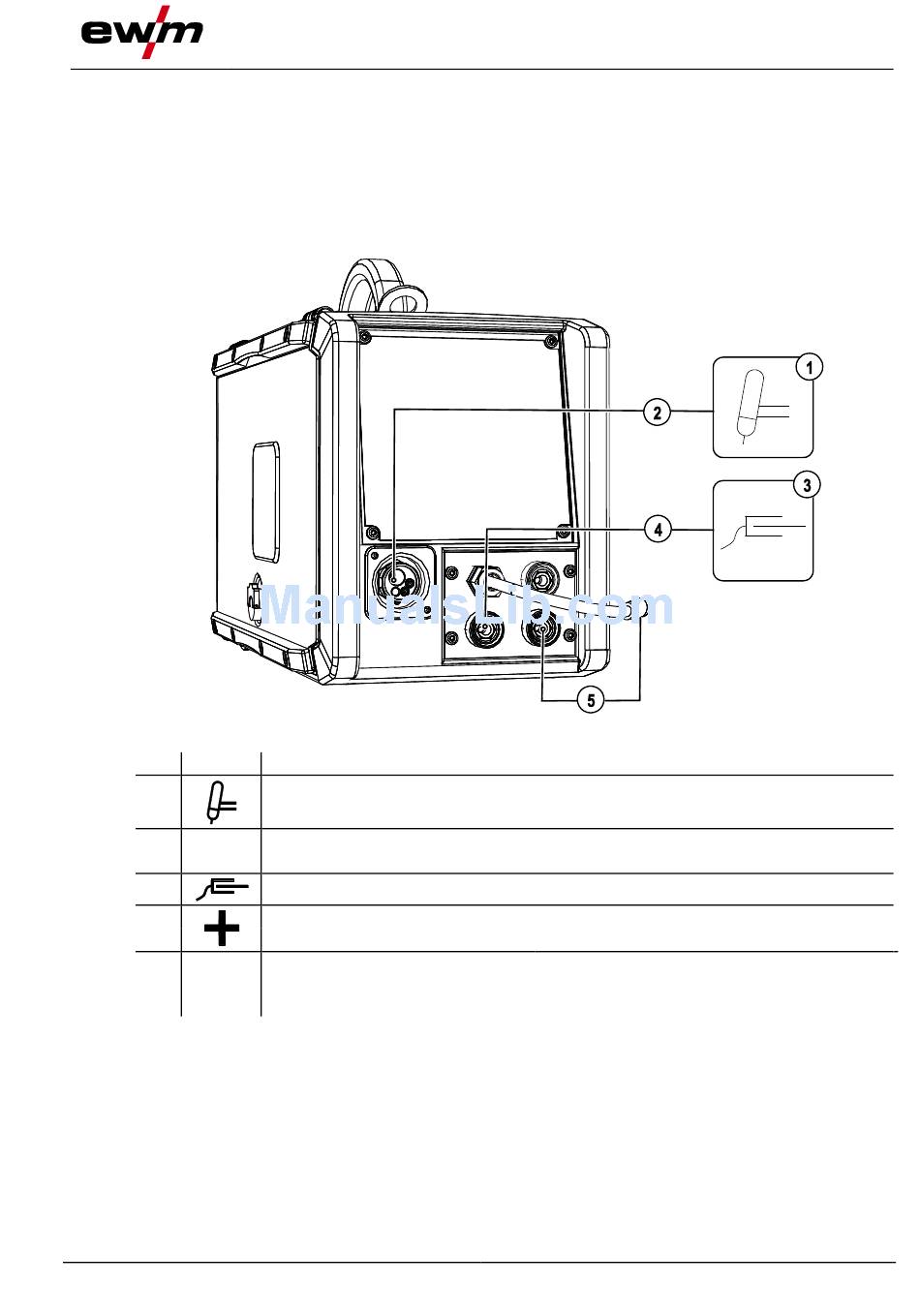

Figure 5-20
Workpiece connection
TIG welding
51
