  • Page 1 » Kontron Configuration Guide « CG2300 Carrier Grade Server Document Revision 1.01 www.kontron.com...
  • Page 2: Revision History

    Customer Comments If you have any difficulties using this user's guide, discover an error, or just want to provide some feedback, please send a message to Kontron. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user's guide on our website. Thank you.
  • Page 3 Restriction of Hazardous Substances Serial Attached SCSI (Small Computer System Interface) SATA Serial Advanced Technology Attachment Secure Digidal Stock keeping unit Solid State Drive Software THOL Tested Hardware and Operating System List Table of Content UDIMM Unregistered Dual In-Line Memory Module www.kontron.com...
  • Page 4: Table Of Contents

    Table 2: CG2300 Base System SKU ...................................... 8 Table 3: CG2300 Base System Components ..................................9 Table 4: Power Supply Options ......................................10 Table 5: Intel® Xeon® Processors Supported by the CG2300 .............................12 Table 6: PCIe Riser Options .........................................14 Table 7: CG2300 Raid Options......................................15 Table 8: Battery Backup Bracket Option for Intel RS3DC080 Card............................15...
  • Page 5: Electrostatic Discharge

    In no event will Kontron be liable for direct, indirect or consequential damages resulting from the use of our hardware or software products, or documentation, even if Kontron were advised of the possibility of such claims prior to the purchase of the product or during any period since the date of its purchase.
  • Page 6: Introduction

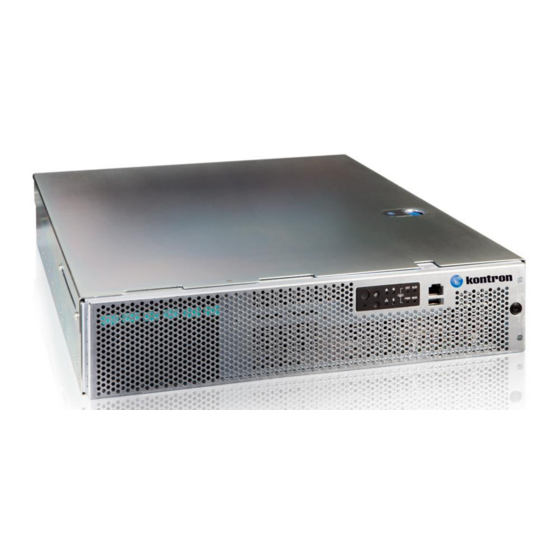

    The CG2300 is designed to meet NEBS-3 and ETSI certification which is suited for a host of applications in the telecom Central Office and industrial environment.
  • Page 7: General Flow For Configuring A Cg2300 System

    General Flow for Configuring a CG2300 System Table 1: Configuration Flow Step Implication NOTE or Reference info A. Start with Base System NOTE: No PSU included B. Select quantity of power supply and Redundant (2) or non-redundant (1) NOTE: If non-redundant, add a PSU...
  • Page 8: Ordering Cg2300 Systems

    (PSU not included) The CG2300 system SKU is ordered using the Product Code as the order number. The above SKU is “Base System” SKU—meaning it does not include PSUs, processors, memory, hard drives, power cord, operating system, or plug-in adapters. Those components should be ordered separately as Accessories from Kontron or from third party vendors listed in the Tested Hardware and Operating System List (THOL).
  • Page 9 See the CG2300 Base System table below for a list of components included. Notice that there are a number of optional accessory items which must be ordered separately. Table 3: CG2300 Base System Components AC Configuration DC Configuration Component Description...
  • Page 10: Select The Quantity And Type Of Power Supply

    B. Select the Quantity and Type of Power Supply The CG2300 System accommodates up to two power supply units. Order one (non-redundant) or two (redundant) PSUs. If a single PSU is used per system, you must order a PSU Filler panel (to respect forced airflow principle).
  • Page 11 K00837-001 0 (1 if non- CG2300, PSU Filler Panel redundant CG2200 system) 1-340000-0 AC Power Cord* 1 (AC system Should be ordered by North America All CRMS servers only) customers. International customers should procure their specific power cords directly. * Power cords are not included with the system. For AC Power cords, order the above North American power cable using the provided product code. This power cable is RoHS-compliant.
  • Page 12: Select Quantity And Type Of Cpus

    CM8064401609800 Notes:  The above processors in the Embedded family are on Intel’s long life roadmap and are recommended with the CG2300 for highest performance and long availability and support.  More specifically, the E5-2628L v3, E5-2648L v3 and E5-2658 v3 where successfully tested against NEBS Operating Temperature.
  • Page 13: Heat Sink

    The CG2300 Base System is delivered with two CPU heatsinks. This heatsink design was done by Kontron for specific use in the CG2300 system. In order to obtain best CPU and DIMM thermal performance, Kontron does not recommend using any other heatsink model.
  • Page 14 Right side Single slot PCI-e x16 Gen 3 passive riser CG2200-RISER1SX16L Left side Single slot PCI-e X16 Gen3 passive riser Choose one Left CG2200-RISER2SX8L Side Left side Dual slot PCI-e x8 Gen 3 passive riser None of the above risers are included in the Base System. www.kontron.com...
  • Page 15: Select Raid

    F. Select RAID The CG2300 Base System supports software RAID 0/1/10 for 6 SAS hard drives or SATA SSD’s. If additional level of SW or HW RAID is required, please refer to the options detailed in Table 7. Table 7: CG2300 Raid Options...
  • Page 16: Select Storage

    SAS HDD / SATA SSD The CG2300 Base System supports for up to 6 SAS hard drives or SATA SSD’s. SATA rotating hard drives are not recommended for use in this system. Please refer to the Tested Hardware and Operating System List (THOL) for complete listing of HDD’s that have been validated for the CG2300. The THOL is a customer-driven document.
  • Page 17: Select System Mounting

    J. Select System Mounting There are many choices for mounting of the CG2300 within rack enclosures. Depending on the application, the following rack mount kits are available. Rack mounting kits for 2-post or 4-post, 19-inch or 23-inch racks are offered for this product. These include TMLCMOUNT21, TMLPMOUNT41, TMLPMOUNT51, TMLPMOUNT52, and TMLPSLIDE01.
  • Page 18 The Accuride 22-inch Model 305A-LR slide rails would use TMLPSLIDE01. Each kit contains two Universal Front Mounting Brackets that secure the server to the front of the rack. Note: Using slide rails could result in non-compliance with Seismic Zone 4 requirements of NEBS-3 certification. www.kontron.com...
  • Page 19: Ordering Cg2300 Serviceable Items

    3. Ordering CG2300 Serviceable Items The table below lists all of the Serviceable Spares items that may be ordered for the CG2300 system. Generally these are items that could potentially fail or need replacement over the life of the product. These items are made available so that customers might stock their service depots and repair centers. Please read the following notes regarding this parts list.
  • Page 20 CG2200-FANSET Fan Assembly (6 fans) CG2300, Contents: 6 x 80m assembly fans. Includes plastic CG2200 parts (finger guard). www.kontron.com...
  • Page 21: Table 12: 2-Post Rack Mounting Kit Options

    TMLPMOUNT41 √ √ TMLPMOUNT51 √ √ √ TMLPMOUNT52 √ √ √ √ TMLPSLIDE01 √ 22.5 28 or 34 √ † †† The TMLPSLIDE01 kit contains server securing brackets. † 34-inch span requires the optional Accuride "Long Bracket" kit. †† www.kontron.com...
  • Page 22: Table 14: Tmlpmount4X/5X Feature Comparison

    This component (2U Nut Bar) enables installation of a rail kit into a 1U rack slot when there is already equipment installed both above and below that open slot.  The sides of the server must be accessible when using TMLPMOUNT41 in 2-post racks. www.kontron.com...
  • Page 23: Figure 2: Tmlcmount21

    The TMLCMOUNT21 kit mounts Communication Rack Mount Servers to a 2-post, central office type, 19-inch wide rack. This kit consists of L-shaped brackets that fasten to the sides of the server and to the rack. Figure 2: TMLCMOUNT21 www.kontron.com...
  • Page 24: Figure 3: Slide-In Rail-Type System

    Figure 3: Slide-in Rail-Type System The diagrams above summarize the components and “slide-in rail-type” system. It can be adapted for a 2-post or 4-post installation. www.kontron.com...
  • Page 25 Beijing 100070, P.R.China Tel.: + 49 (0) 821 4086-0 Tel.: + 1 888 294 4558 Tel.: + 86 10 63751188 Fax: + 49 (0) 821 4086 111 Fax: + 1 858 677 0898 Fax: + 86 10 83682438 info@kontron.com info@us.kontron.com info@kontron.cn www.kontron.com...
