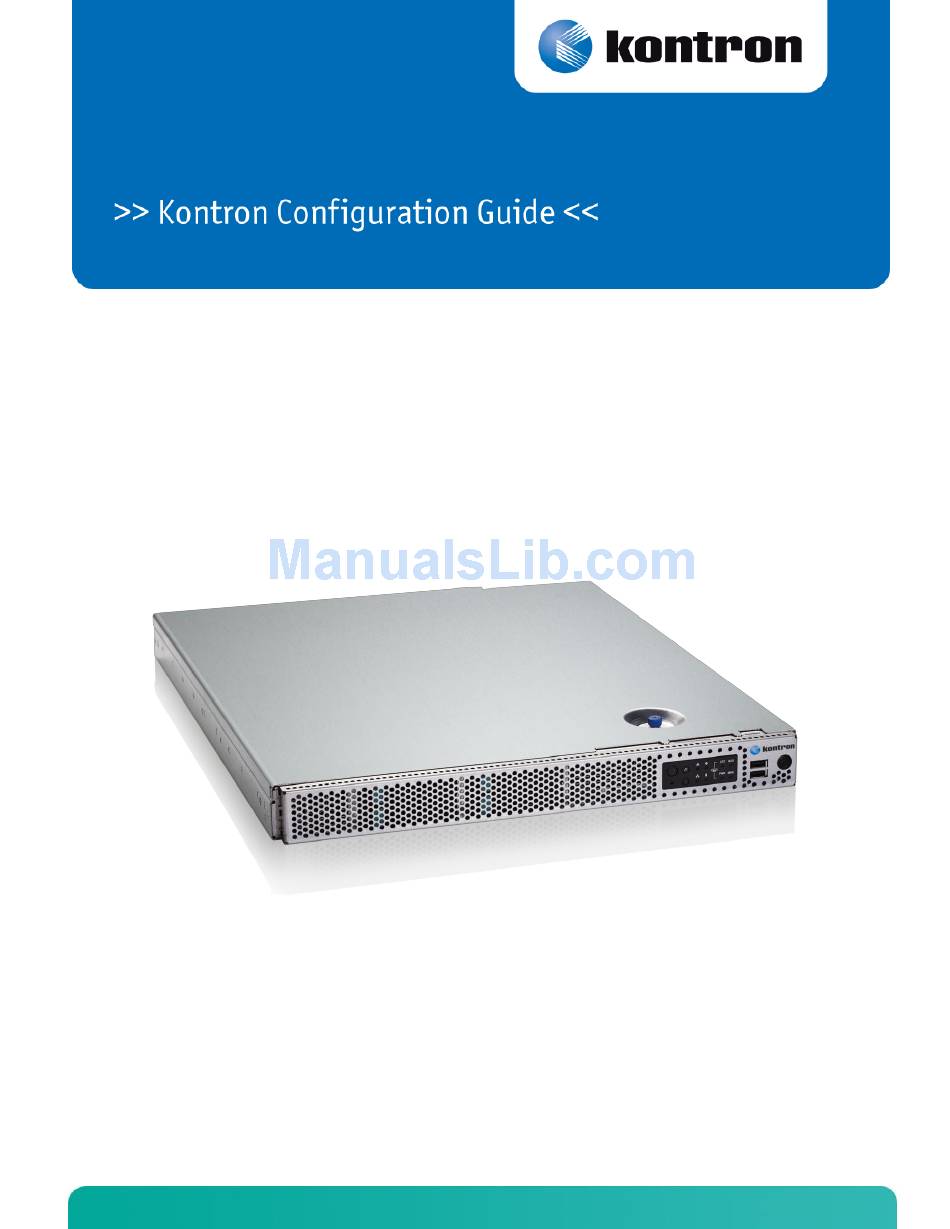

- Page 1 CG1200 Carrier Grade Server Document Revision 1.1...
-
Page 2: Revision History
Revision History Revision Date Comments 12/13/2012 Initial Release Adding Intel® Xeon® processor E5-2400 v2 product 01/13/2014 family Copyright © 2014, Kontron... - Page 3 Table of Contents INTRODUCTION ..................... 4 ORDERING CG1200 SYSTEMS ................6 III. ORDERING CG1200 SERVICEABLE ITEMS............18 APPENDIX A. RACK MOUNTING OPTIONS FOR 1U AND 2U COMMUNICATIONS RACK MOUNT SERVERS .................... 21 www.kontron.com...
-
Page 4: Introduction

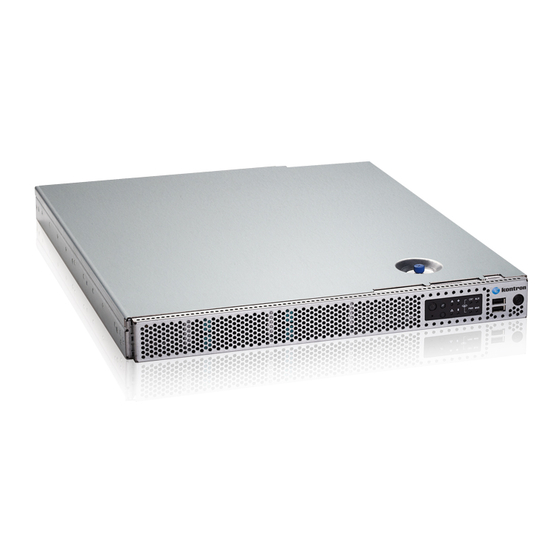

The CG1200 is a NEBS-3 and ETSI compliant product which is suited for a host of applications in the telecom Central Office and industrial environment. The server is... - Page 5 General Flow for Configuring a CG1200 System Step Implication Reference info A. Select Base System AC or DC base System B. Select Redundant Redundant or non-redundant Non-redundant as shipped power supply C. Select Number and Impacts Performance Technical Product Specification Type of CPUs ...
-
Page 6: Ordering Cg1200 Systems
Base Model 0 with DC Power Supply The CG1200 system SKUs are ordered using the Product Code as the order number. The CG1200 is offered as either an AC or DC version—as indicated by the 7 digit of the product code (“A” for AC or “D” for DC). - Page 7 See the CG1200 Base Model 0 Configuration table below for a list of components included in each base model 0 SKU. Notice that there are a number of optional accessory items which must be ordered separately. AC Model 0 DC Model 0...
- Page 8 B. Select the Redundant Power supply The CG1200 System accommodates a 2 power supply which enables redundancy. Order the 2 power supply to agree with either AC or DC base system. Order AC power cords to agree with the number of power supplies in the final system. Example: One CG1200A-00 base system + the 2 power supply require 2 AC Power Cords.
- Page 9 C. Select Number and Type of CPUs ® ® The CG1200 is designed to support the following processor SKUs from the Intel Xeon processor E5-2400 and E5-2400 v2 series. The Base Model 0 CG1200 includes Zero CPUs. Customer must separately purchase CPU 1 and 2.
- Page 10 www.kontron.com...
- Page 11 E. Select RAID As shipped the CG1200 Model 0 systems supports SAS Hard Drives, and RAID 0, 1, 10 only. Below are other choices for RAID which are made available by purchase of additional items. Bandwidth RAID Level Additional item to purchase...
- Page 12 F. Select Hard Drives As shipped with the CG1200 Model 0 systems, there is hard drive support for up to 4 SAS hard drives or SATA SSD’s. SATA rotating hard drives are not recommended and not qualified for use in this system. See the Tested Hardware and Operating System List (THOL) for complete listing of HDD’s that have been validated to work in this...
- Page 13 Select Remote Management Module Option There is 1 choice recommended for remote management of the CG1200. This is an optional accessory. Included in Min. Products Product Code Description Base Model Order Supported (Y/N) AXXRMM4 Intel® Remote Management Module 4 kit...
- Page 14 H. Personality Modules The CG1200 physically supports one personality module. These personality modules are available from Intel. Personality Module AXX10GBTWLIOM Dual RJ-45 10GBASE-T IO Module based on Intel® Ethernet controller X540 AXX4P1GBPWLIOM Quad port 1GbE IO Module bades on Intel® Ethernet controller I350 Please note that use of a personality module will mechanically conflict with the dedicated remote management NIC, a part of AXXRMM4.
- Page 15 List” in section III. If AXXBASRAIL13 or AXXHERAIL2 (from Intel) will be used, then a Rail Enabling Kit (TMLREK01) must be purchased from Kontron to enable support of these Intel rail kits. Rack Mount Kits (refer to Appendix A for additional details) Included in Min.
- Page 16 NOTE: To be used with AXXHERAIL2 only (orderable from Intel only – MM# 901084) Each kit includes: Rail Enabling Kit rackmount ears (2) (order in TMLREK01 Enables AXXBASRAIL13 rackmount shoulder multiples and AXXHERAIL2 on screws (4) of 10) CG2200 screws (2) www.kontron.com...
- Page 17 Additional Notes on the CG1200 Configuration & Options Please review the following important notes regarding certain accessories and configuration options for the CG1200. Flash Drives o A single front accessible SD memory slot is provided. This SD memory is bootable, and may be used for software update or logging purposes.
-
Page 18: Ordering Cg1200 Serviceable Items
III. Ordering CG1200 Serviceable Items The table below lists all of the Serviceable Spares items that may be ordered for the CG2100 system. Generally these are items that could potentially fail or need replacement over the life of the product. These items are made available so that customers might stock their service depots and repair centers. - Page 19 Included in Min. Products Product Code Description Base Model Order Supported (Y/N) BBS2400EP4KT Intel Server Board S2400EP (Eagle Pass) CG1200 Available from Intel NSNLEDSWITCHBDQ CG1200, CG2200, LED / Switch Board CG2100, NSN2U CG1200-PWRDISBD Power Distribution Board CG1200 CG1200-FPIOBD Front Panel IO board...
- Page 20 Contents: Includes all Every Unit item cables. CG1200-SASBKPLN CG1200 SAS Backplane CG1200 CG1200, CG2100-TAMMODULE TAM Module for multiple CG2200, systems CG2100 CG1200 Chassis Parts kit Various items that often CG1200-CHASSISKIT get lost CG1200 Replacement screws, ties, and other loose items. www.kontron.com...
-
Page 21: Appendix A. Rack Mounting Options For 1U And 2U Communications Rack Mount Servers
√ TMLPMOUNT41 √ √ √ TMLPMOUNT51 √ √ √ √ TMLPMOUNT52 (obsolete) † †† √ √ TMLPSLIDE01 22.5 28 or 34 † The TMLPSLIDE01 kit contains server securing brackets. †† 34-inch span requires the optional Accuride "Long Bracket" kit. www.kontron.com... - Page 22 TMLCMOUNT21 The TMLCMOUNT21 kit mounts Communication Rack Mount Servers to a 2-post, central office type, 19- inch wide rack. This kit consists of L-shaped brackets that fasten to the sides of the server and to the rack. TMLCMOUNT21 www.kontron.com...
- Page 23 This component (2U Nut Bar) enables installation of a rail kit into a 1U rack slot when there is already equipment installed both above and below that open slot. The sides of the server must be accessible when using TMLPMOUNT41 in 2-post racks. www.kontron.com...
- Page 24 The diagrams above summarize the components and “slide-in rail-type” system of the TMLPMOUNT41. It can be adapted for a 2-post or 4-post installation. www.kontron.com...
- Page 25 TMLPMOUNT41 series uses a screw to lock the server in place using the Universal Mounting Bracket, whilst the TMLPMOUNT51/52 series has an additional Slide Pull-Out Locking feature. Universal Front Mounting Bracket on the TMLPMOUNT41 Slide Pull-Out Locking feature on the TMLPMOUNT51/52 www.kontron.com...
- Page 26 305A-LR slide rails are designed to mount a server for “in-rack service.” This example would also use an Accuride mounting bracket kit and the TMLPSLIDE01. Universal Front Mounting Bracket with securing tab Note: Using slide rails could result in non-compliance with Seismic Zone 4 requirements of NEBS-3 certification. www.kontron.com...
