- Page 1 » Kontron Configuration Guide « CG2300 Carrier Grade Server Document Revision 1.05 www.kontron.com...
-
Page 2: Revision History
SAS cables and PDB added as Spare Parts 1.02 16/06/2015 Details added concerning no CG2300 RAID Cable Kit vs CG2200 Notes for DDR4 – RDIMM/LRDIMM – No UDIMM support Precisions added about Remote Management Module Adding DC connector kit as Spare part 1.03... - Page 3 Customer Comments If you have any difficulties using this user's guide, discover an error, or just want to provide some feedback, please send a message to Kontron. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user's guide on our website. Thank you.
-
Page 4: Table Of Contents
Table 2: CG2300 Base System SKU ...................................... 8 Table 3: CG2300 Base System Components ..................................9 Table 4: Power Supply Options ......................................10 Table 5: Intel® Xeon® Processors Supported by the CG2300 .............................12 Table 6: PCIe Riser Options .........................................14 Table 7: CG2300 RAID Options ......................................15 Table 8: Battery Backup Bracket Option for Intel RS3DC080 Card............................15... -
Page 5: Electrostatic Discharge
In no event will Kontron be liable for direct, indirect or consequential damages resulting from the use of our hardware or software products, or documentation, even if Kontron were advised of the possibility of such claims prior to the purchase of the product or during any period since the date of its purchase. -
Page 6: Introduction

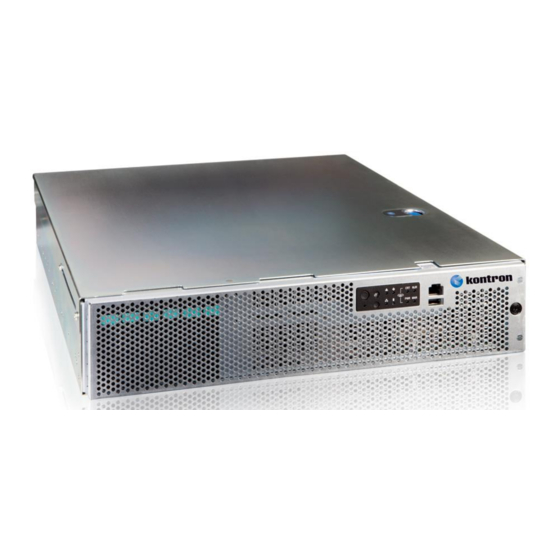

The CG2300 is designed to meet NEBS-3 and ETSI certification which is suited for a host of applications in the telecom Central Office and industrial environment. The server is targeted to OSS (Operations System and Support), Billing, Provisioning, Softswitch, Media Server, Wireless and Unified Messaging, Call Center and many other applications. -
Page 7: General Flow For Configuring A Cg2300 System
C. General Flow for Configuring a CG2300 System Table 1: Configuration Flow Step Implication NOTE or Reference info A. Start with Base System NOTE: No PSU included B. Select quantity of power supply and Redundant (2) or non-redundant (1) NOTE:... -
Page 8: Ordering Cg2300 Systems
(PSU not included) The CG2300 system SKU is ordered using the Product Code as the order number. The above SKU is “Base System” SKU—meaning it does not include PSUs, processors, memory, hard drives, power cord, operating system, or plug-in adapters. Those components should be ordered separately as Accessories from Kontron or from third party vendors listed in the Tested Hardware and Operating System List (THOL). - Page 9 See the CG2300 Base System table below for a list of components included. Notice that there are a number of optional accessory items which must be ordered separately. Table 3: CG2300 Base System Components AC Configuration DC Configuration Component Description...
-
Page 10: Select The Quantity And Type Of Power Supply
E. Select the Quantity and Type of Power Supply The CG2300 System accommodates up to two power supply units. Order one (non-redundant) or two (redundant) PSUs. If a single PSU is used per system, you must order a PSU Filler panel (to respect forced airflow principle). - Page 11 K00837-001 (order one if CG2300, PSU Filler Panel non- CG2200 redundant system) 1-340000-0 AC Power Cord* 1 (AC system Should be ordered by North America All CRMS servers only) customers. International customers should procure their specific power cords directly. * Power cords are not included with the system. For AC Power cords, order the above North American power cable using the provided product code. This power cable is RoHS-compliant.
-
Page 12: Select Quantity And Type Of Cpus
CM8066002024000 Notes: The above processors in the Embedded family are on Intel’s long life roadmap and are recommended with the CG2300 for highest performance and long availability and support. More specifically, the E5-2628L v3, E5-2648L v3 and E5-2658 v3 where successfully tested against NEBS Operating Temperature. -
Page 13: Heat Sink
If a heatsink requires replacement, please use product code found in the Serviceable Items section below. H. Select PCIe Risers This diagram shows the PCI riser physical arrangement. The CG2300 Base System comes with no risers, but can support the addition of two (2) risers, a right- side and a left-side riser. - Page 14 Right side Single slot PCI-e x16 Gen 3 passive riser CG2200-RISER1SX16L Left side Single slot PCI-e X16 Gen3 passive riser Choose one Left CG2200-RISER2SX8L Side Left side Dual slot PCI-e x8 Gen 3 passive riser None of the above risers are included in the Base System. www.kontron.com...
-
Page 15: Select Raid
I. Select RAID The CG2300 Base System supports RAID 0/1/10 for 6 SAS hard drives or SATA SSD’s, done through the on-board SAS controller. If additional level of RAID is required, please refer to the options detailed in Table 7. -
Page 16: Select Storage
SAS HDD / SATA SSD The CG2300 Base System supports for up to 6 SAS hard drives or SATA SSD’s. SATA rotating hard drives are not recommended for use in this system. Please refer to the Tested Hardware and Operating System List (THOL) for complete listing of HDD’s that have been validated for the CG2300. The THOL is a customer-driven document. -
Page 17: Select Remote Management Module Option
The Dedicated Management Port (DMN) is active with or without the RMM4LITE key installed. On the CG2300, as for the CG2200, Basic features such as IPMI 2.0, Diagnostic Beep Code and Power State Retention are available, even without the AXXRMM4LITE Activation key. Details of Basic features are available in the Baseboard Technical Product Specification found on Kontron’s web site. -
Page 18: Select System Mounting
M. Select System Mounting There are many choices for mounting of the CG2300 within rack enclosures. Depending on the application, the following rack mount kits are available. Rack mounting kits for 2-post or 4-post, 19-inch or 23-inch racks are offered for this product. These include TMLCMOUNT21, TMLPMOUNT41, TMLPMOUNT51, TMLPMOUNT52, and TMLPSLIDE01. - Page 19 This component (2U Nut Bar) enables installation of a rail kit into a 1U rack slot when there is already equipment installed both above and below that open slot. The sides of the server must be accessible when using TMLPMOUNT41 in 2-post racks. The TMLPSLIDE01 kit contains server securing brackets. www.kontron.com...
-
Page 20: Ordering Cg2300 Serviceable Items
3. Ordering CG2300 Serviceable Items The table below lists all of the Serviceable Spares items that may be ordered for the CG2300 system. Generally these are items that could potentially fail or need replacement over the life of the product. These items are made available so that customers might stock their service depots and repair centers. Please read the following notes regarding this parts list. - Page 21 CG2200-FANSET Fan Assembly (6 fans) CG2300, Contents: 6 x 80m assembly fans. Includes plastic CG2200 parts (finger guard). 1057-5299 SAS cable (SFF-8087 to SFF-8643)** CG2300 ** Two (2) included in Base system, but as (2 included) serviceable part, does not come in pair 1060-3344 Power Distribution Board –...
-
Page 22: Figure 2: Tmlcmount21
Below are examples for various Rail Mounting Kit, as well as Extender kit, intended for rack depth above 24 inches. The TMLCMOUNT21 kit mounts Communication Rack Mount Servers to a 2-post, central office type, 19-inch wide rack. This kit consists of L-shaped brackets that fasten to the sides of the server and to the rack. Figure 2: TMLCMOUNT21 www.kontron.com... -
Page 23: Figure 3: Slide-In Rail-Type System
Figure 3: Slide-in Rail-Type System The diagrams above summarize the components and “slide-in rail-type” system. It can be adapted for a 2-post or 4-post installation. TMLPMOUNT52, for 23-inch rack, has the same mounting topology. www.kontron.com... -
Page 24: Figure 4: Tmlpmount41 Extender Kit
Figure 4: TMLPMOUNT41 Extender Kit www.kontron.com... -
Page 25: Figure 5: Tmlpmount51 Extender Kit
Figure 5: TMLPMOUNT51 Extender Kit www.kontron.com... -
Page 26: Figure 6: Two-Post Mid-Mount In 23-Inch Rack
Figure 6: Two-post mid-mount in 23-inch rack www.kontron.com... -
Page 27: Figure 7: Tmlpmount41/51 - 2-Post
Figure 7: TMLPMOUNT41/51 - 2-post Figure 8: TMLPMOUNT52 - 4-post (23 inch rack shown) www.kontron.com... - Page 28 Beijing 100070, P.R.China Tel.: + 49 (0) 821 4086-0 Tel.: + 1 888 294 4558 Tel.: + 86 10 63751188 Fax: + 49 (0) 821 4086 111 Fax: + 1 858 677 0898 Fax: + 86 10 83682438 info@kontron.com info@us.kontron.com info@kontron.cn www.kontron.com...
