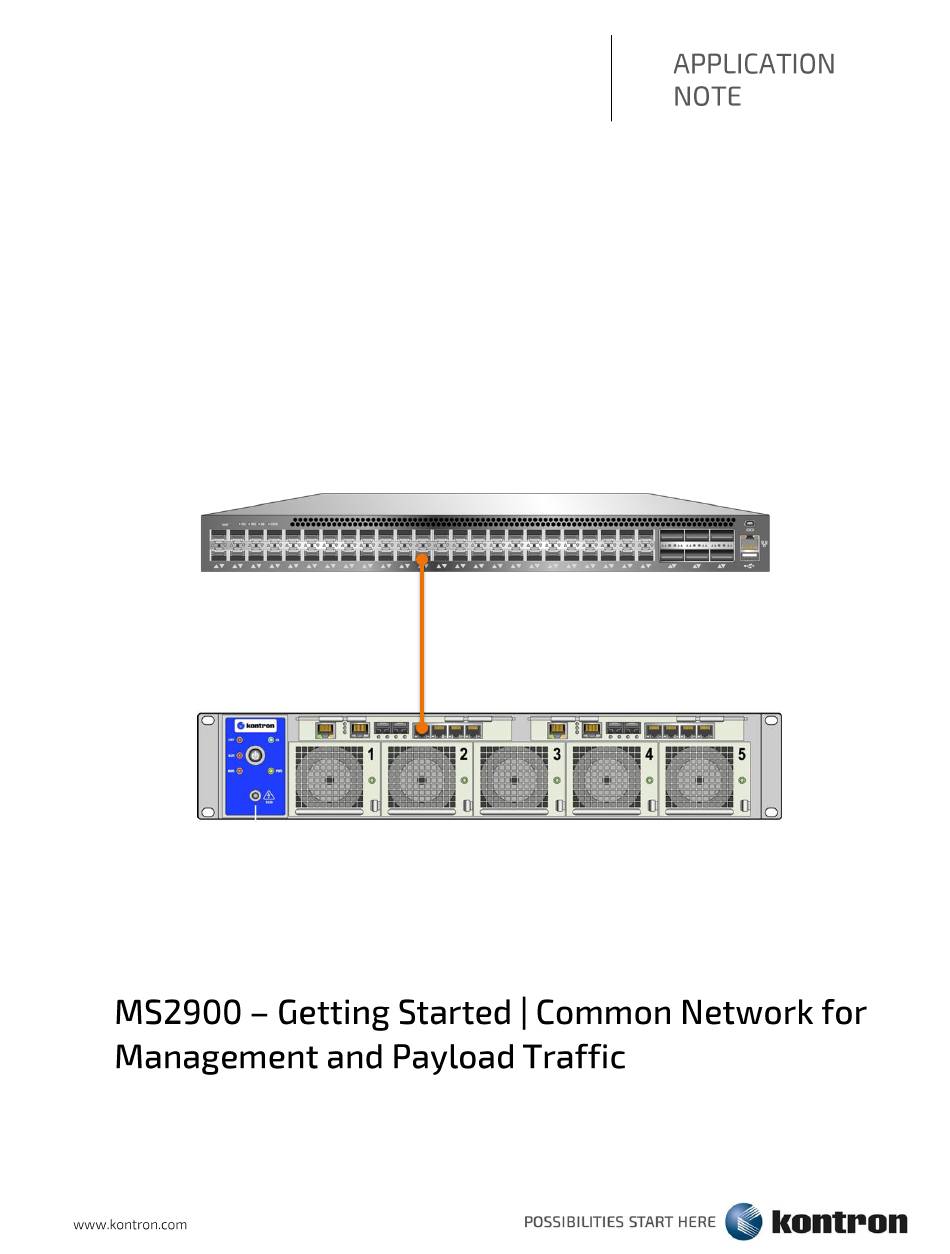

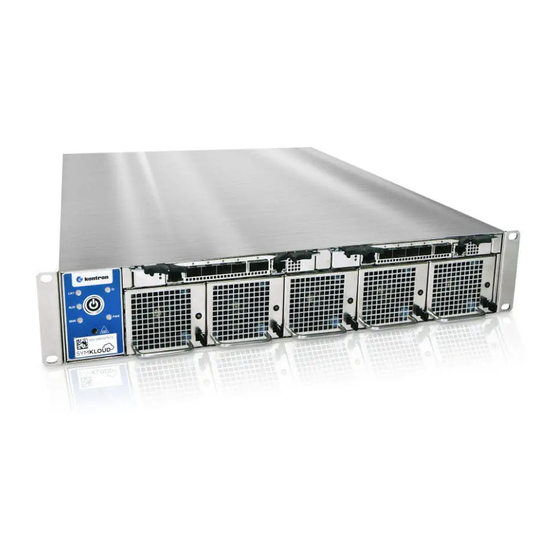

Kontron MS2900 Getting Started

Common network for management and payload traffic
Hide thumbs Also See for MS2900:

Advertisement

Quick Links

Download this manual See also: User Manual


Advertisement

loading
Need help?

Need help?

Do you have a question about the MS2900 and is the answer not in the manual?

Questions and answers

Related Manuals for Kontron MS2900

Summary of Contents for Kontron MS2900

  • Page 1 ...
  • Page 4   ...
  • Page 6          ...
  • Page 8 ...
  • Page 9 ...
  • Page 11 switch# switch#configure terminal From privileged EXEC mode, enter global configuration mode. switch(config)#spanning-tree mode pvst Configure spanning-tree mode to PVST. switch(config)#spanning-tree extend system- Enable extend system-id. switch(config)#interface vlan 10 Enter interface VLAN configuration mode. switch(config-if)# ip address Define VLAN 10 IP address and subnet. 192.168.101.254 255.255.255.0 switch(config-if)#exit Exit interface configuration mode.
  • Page 12 MSH8900 Login: Ctrl+g - Use HOTKEY to redirect serial console multiplexer to Username:admin the switch CLI. Password:admin...
  • Page 13 # configure terminal Enter configuration mode (config)# vlan 4093 Enter VLAN 4093 (default management) database entry (config-vlan)# no name Remove the name (config-vlan)# exit Exit VLAN 4093 database entry (config)# vlan 10 Create VLAN 10 in the VLAN database (config-vlan)# name managementanddata Enter a name for VLAN 10 (config-vlan)# end Exit configuration mode...
  • Page 14 (config)# interface Ethernet 1-2/26 Enter 1/26 and 2/26 ShMC interfaces configuration mode. (config-if)# switchport hybrid allowed vlan add Add VLAN 10 to the allowed hybrid mode VLAN list (config-if)# end Exit configuration mode # configure terminal Enter configuration mode (config)# spanning-tree mst name SYMKLOUD Enter the region name and revision revision 0 (config)# spanning-tree mst 1 vlan 10...
  • Page 15 #show interface vlan 10 Display configuration settings VLAN1 associated with the switch's network LINK: 00-a0-a5-a6-8c-fa Mtu:1500 <UP BROADCAST RUNNING interface. MULTICAST> IPv6: fe80::2a0:a5ff:fea6:8cfa/64 <ANYCAST TENTATIVE AUTOCONF> IPv4: 192.168.101.10/24 192.168.101.255 # ping ip 192.168.101.254 Ping external network using the PING server 192.168.101.254, 56 bytes of data. management IP of the ToR switch.
  • Page 18 Ctrl+g 0 Use HOTKEY to redirect serial console MSH8900 Login: admin multiplexer to the ShMC CLI. Password: admin ipmitool>...
  • Page 19 ipmitool> lan set 1 vlan id 10 Assign VLAN 10 on the ShMC. ipmitool> mc reset cold Reboot the ShMC ipmitool> lan set 1 ipsrc static Configure IP source to static. ipmitool> lan set 1 ipaddr 192.168.101.1 Define static IP address. ipmitool>...
  • Page 20 Enter the default credential to access the standby MSH8900 Login: admin ShMC. Password:admin ipmitool> Set remote target address of the standby ShMC. ipmitool> set targetaddr 0x10 The following command will be redirected to the targeted address. ipmitool> lan set 1 vlan id 10 Assign VLAN 10 on the ShMC.
  • Page 21 ipmitool> lan set 1 ipsrc dhcp Configure IP source to DHCP. ipmitool> lan print Display the current network configuration. Access Mode : Enable IP Address Source : Static IP Address : 192.168.101.2 Subnet Mask : 255.255.255.0 MAC Address : 00:a0:a5:96:e9:ea IP Header : TTL=0x40 Flags=0x40 Precedence=0x00 TOS=0x10 Default Gateway IP : 192.168.101.254...
  • Page 22 ipmitool> Ctrl+g 1 Use HOTKEY to redirect serial console CentOS Linux 7 (Core) multiplexer to the MSP node 1 components. Kernel 3.10.0-229.el7.x86_64 on an x86_64 Use HOTKEY to redirect serial console sk9013075860 login: Ctrl+gg 0 multiplexer to the BMC of MSP node 1. MSP80XX login: admin Password: ipmitool>...
  • Page 23 ipmitool> lan set 1 ipsrc dhcp Configure IP source to DHCP. ipmitool> lan print Display the current network configuration. Access Mode : Enable IP Address Source : Static IP Address : 192.168.101.11 Subnet Mask : 255.255.255.0 MAC Address : 00:a0:a5:90:ac:d0 IP Header : TTL=0x40 Flags=0x40 Precedence=0x00 TOS=0x10 Default Gateway IP : 192.168.101.254...
  • Page 24 set targetaddr 0x82 Target BMC of MSP node 1. lan set 1 ipsrc static Configure IP source to static. lan set 1 vlan id 10 Assign VLAN 10 on the BMC. lan set 1 ipaddr 192.168.101.11 Define static IP address. lan set 1 netmask 255.255.255.0 Define netmask.
  • Page 25 lan set 1 vlan id 10 Assign VLAN 10 on the BMC. lan set 1 ipaddr 192.168.101.18 Define static IP address. lan set 1 netmask 255.255.255.0 Define netmask. lan set 1 defgw ipaddr 192.168.101.254 Define default gateway IP address. mc reset cold Reboot the BMC set targetaddr 0x92 Target BMC of MSP node 9.
  • Page 27 set targetaddr 0x82 Confirm configuration of the BMC of MSP node 1. lan print set targetaddr 0x84 Confirm configuration of the BMC of MSP node 2. lan print set targetaddr 0x86 Confirm configuration of the BMC of MSP node 3. lan print set targetaddr 0x88 Confirm configuration of the BMC of MSP node 4.
  • Page 28             ...
