Quick Start Guide — DVI 201xi Tx, cont'd
Procedure C: To use DDC pass-through routed to the local monitor:
a. Configure the DDC switches as shown in the figure
at right and described on page 3-4.
b. Connect a source device to the transmitter.
c. Connect a display device to the receiver and, if
required, a local monitor to the transmitter.
d. Connect the transmitter and receiver.
e. Power on the transmitter, receiver, and local
monitor.
f. Power on the source device.
g. Power on the display device.
Procedure D: To use DDC pass-through routed to the remote
display:
a. Configure the DDC switches as shown in the figure
at right and described on page 3-5.
b. Connect a source device to the transmitter.
c. Connect a display device to the receiver and, if
required, a local monitor to the transmitter.
d. Connect the transmitter and receiver.
e. Power on the transmitter, receiver, and display
devices.
f. Power on the source device.

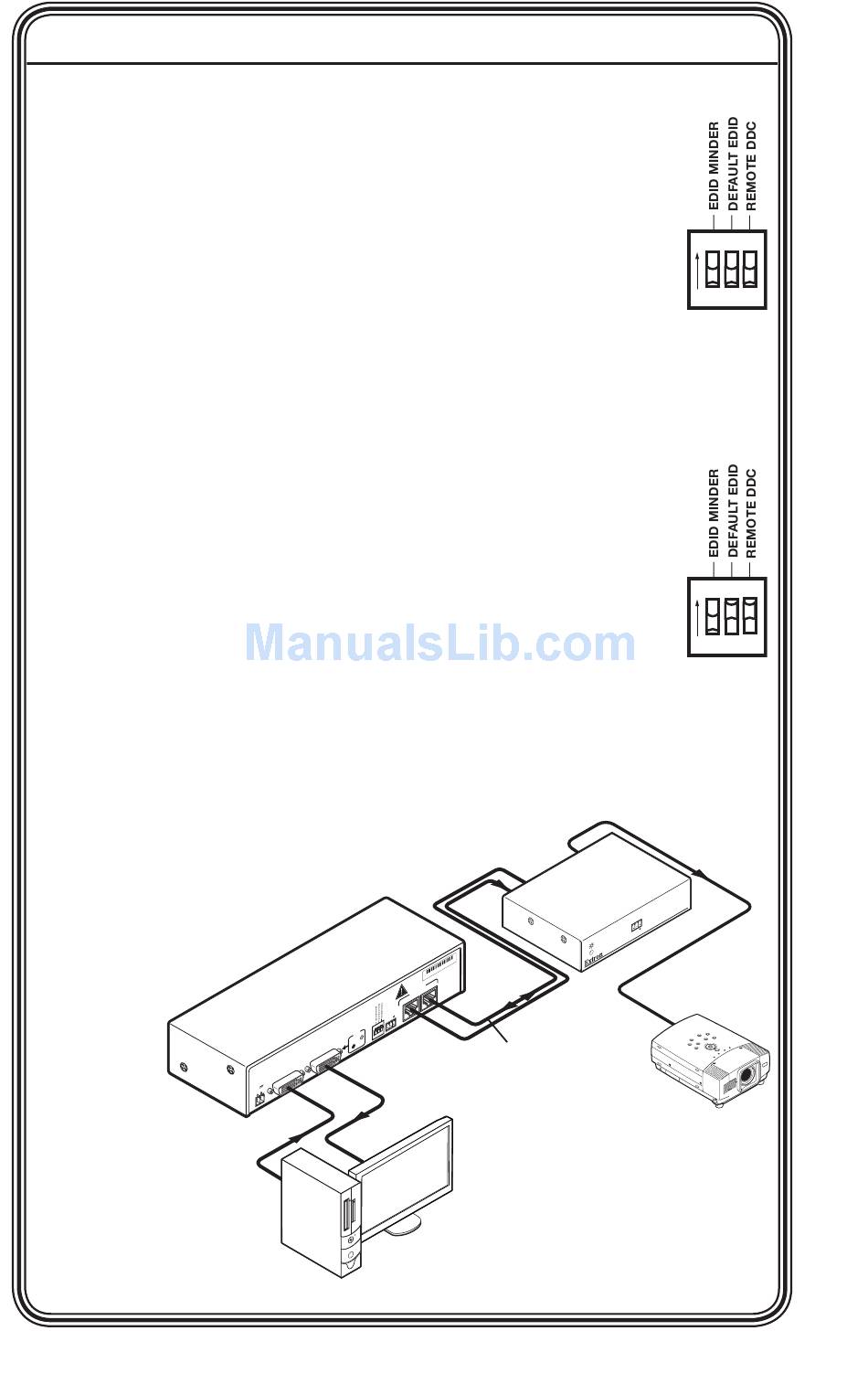

Step 4
The DVI 201xi Tx transmits single link DVI-D
(1024x768 or 720p @ 60 Hz up to 200';
1920x1200 or 1080p @ 60 Hz up to
100') over two CAT 5/5e/6/7
twisted pair cables.
Extron
DVI 201xi Tx
DVI Transmitter
DVI 201xi Tx • Quick Start Guide
QS-2
