Quick Start Guide — DVI 201xi Tx
Install, connect, and operate the DVI 201xi Tx as follows:
Step 1
Turn off all equipment or disconnect from power sources. Mount the
transmitter and receiver as required (see page 2-2).
Step 2
Choose a receiver that is compatible with the DVI 201xi Tx (see page
2-11).
Step 3
Determine how the source device will obtain the EDID information
and select one of the following procedures:
Procedure A: To capture the EDID of a desired display and store it
in the EDID Minder for future use:
a. Connect the display to the local monitor output of the
transmitter.
b. Power on the transmitter and the local monitor.

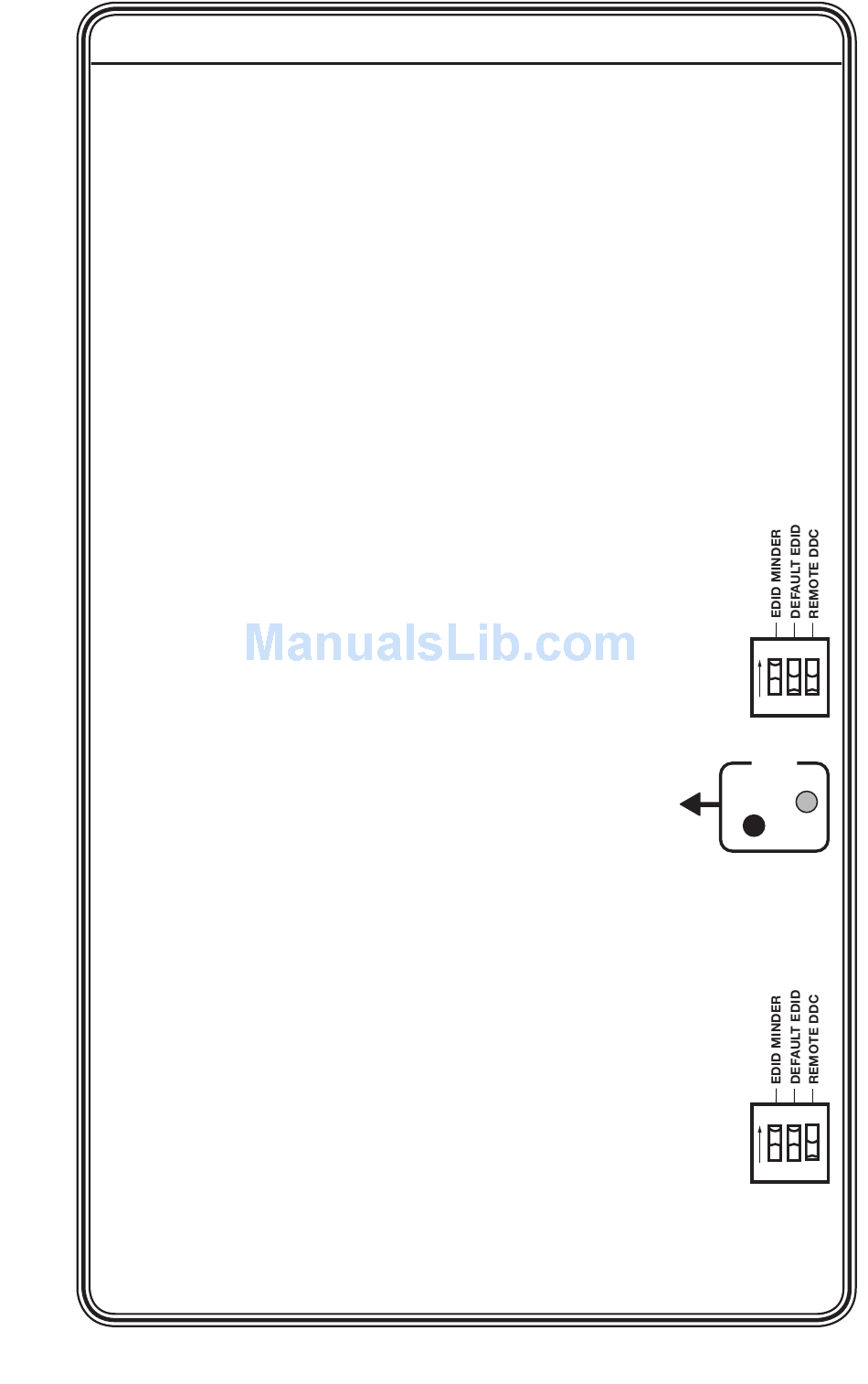

c. Configure the DDC switches as shown in the figure
at right and described on page 3-2.
Press and release the EDID "Store" button (see the
d.
figure at right). The rear panel LED turns amber
while the EDID information is read and stored from
the local monitor. Afterwards, the LED turns green.
e. Power off and disconnect the display from the transmitter.
f. Connect the transmitter to the receiver.
g. Connect a source device to the transmitter.
h. Connect a display device to the receiver and, if
required, a local monitor to the transmitter.
i. Power on the display device(s), the transmitter,
and the receiver.
j. Power on the source device.
Procedure B: To use the default EDID:
a. Configure the DDC switches as shown in the figure
at right and described on page 3-3.
b. Connect a source device to the transmitter.
c. Connect a display device to the receiver and, if
required, a local monitor to the transmitter.
Connect the transmitter and receiver.
d. Power on the transmitter, receiver, and display
devices.
e. Power on the source device.
DVI 201xi Tx • Quick Start Guide
ON
ON
1 2 3
OFF
EDID
STORE
ON
ON
1 2 3
OFF
QS-1
