DVI Twisted Pair
Transmitter
DVi 201xi Tx
DVI 201xi Tx
Transmitter

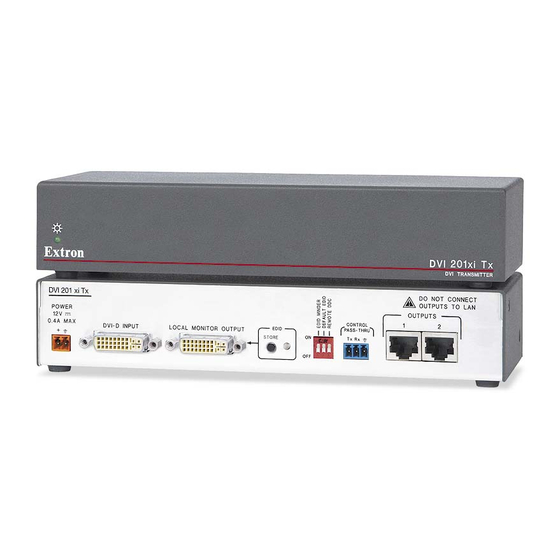

The Extron DVI 201xi Tx is a twisted pair transmitter that works together with a
DVI 201 twisted pair receiver to send DVI or HDMI signals over distances of 200
feet or more using two standard CAT 5-type cables. The DVI 201xi Tx is ideal for
professional and residential applications that utilize fully digital, long distance
transmission of DVI or HDMI signals.
DVI & HDMI
Transmits single link DVI/HDMI and
n
RS-232 over two CAT 5-type cables
Sends 720p, 1080i, and XGA signals
n
over 200 ft (60 m), 1080p/60 and
1920x1200 over 100 ft (30 m)
EDID Minder
n
DVI input loop-through
n
Supports DDC and HDCP
n
Automatic input equalization
n
Remote powering of receiver
n
Bi-directional RS-232/IR
n
pass-through
Rack Mountable
n
www.extron.com
Advertisement
Related Manuals for Extron electronics DVI Twisted Pair Transmitter DVI 201xi Tx
Summary of Contents for Extron electronics DVI Twisted Pair Transmitter DVI 201xi Tx

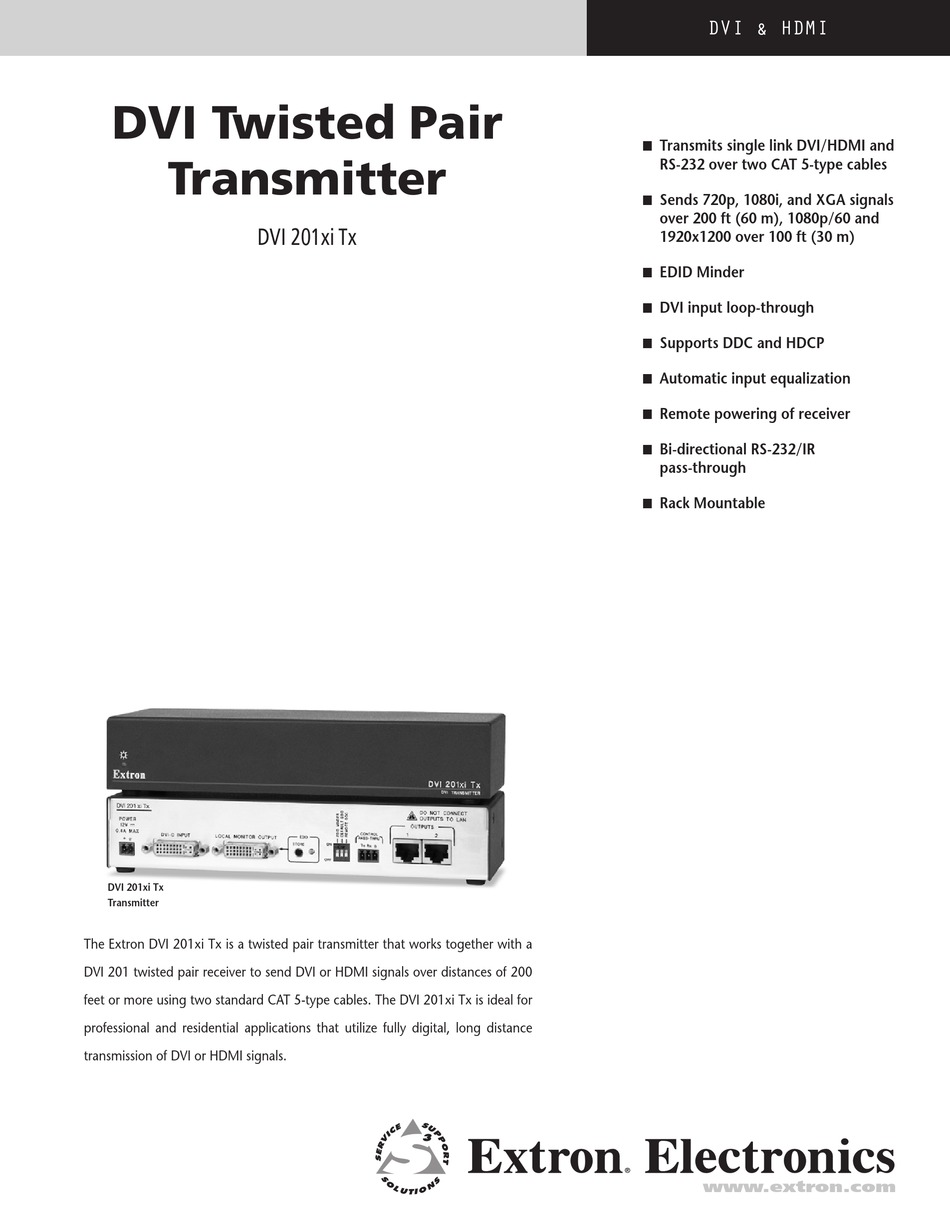

- Page 1 DVI Twisted Pair Transmitter DVi 201xi Tx DVI 201xi Tx Transmitter The Extron DVI 201xi Tx is a twisted pair transmitter that works together with a DVI 201 twisted pair receiver to send DVI or HDMI signals over distances of 200 feet or more using two standard CAT 5-type cables.
- Page 2 DesCrIPtION The Extron DVI 201xi Tx is a twisted pair transmitter that enables DVI or HDMI signals to be carried over distances significantly greater than the specified 5 meter (15 foot) limitation for standard DVI cables. Linked together using two economical and integration friendly CAT 5, CAT 5e, CAT 6, or CAT 7 cables, the DVI 201xi Tx transmitter and a DVI 201 or DVI 201 A D Twisted Pair Receiver work together to send single link DVI-D or HDMI signals over 200 feet (60 meters) for...
-
Page 3: Specifications
DIgItal sIgNal CONDItIONINg Although DVI signals are digital in nature, they are subject to loss when transmitted on standard DVI cables, due to the inherent properties of the cable and the connectors. The proper “shape” of the three TMDS channels – also known as the “eye” pattern, as well as their timing to the clock channel, are critical in ensuring proper DVI image display. -
Page 4: Application Diagram
aPPlICatION DIagram IT O I- D 0 .4 Extron DVI 201xi Tx DVI Transmitter PaNel DrawINgs DVI 201xi Tx Front DVI 201xi Tx SN XXXXXXXX E XXXXX DVI DL TX POWER 0.4A MAX DVI 201xi Tx Back Extron USA - West Extron USA - East Headquarters +800.633.9876...
