UG-442
EVALUATION BOARD SOFTWARE
SOFTWARE INSTALLATION
The
AD5422
evaluation kit includes self-installing software on a
CD. The software is compatible with Windows 2000/NT/XP. If
the setup file does not run automatically, run the setup.exe file
from the CD.
To install the evaluation software, do the following:
1.
Install the evaluation software before connecting the
evaluation board to the USB port of the PC to ensure that
the evaluation board is correctly recognized when connected
to the PC.
2.
After installation from the CD is complete, power up the
AD5422
evaluation board as described in the Power Supplies
section.
3.
Connect the board to the USB port of the PC using the
supplied cable.
4.
When the evaluation board is detected, proceed through
any dialog boxes that appear. This finishes the installation.
SOFTWARE OPERATION
To launch the software, complete the following steps:
1.
From the Start menu, select Analog Devices – AD5422/
AD5422
software then displays (see Figure 3).
2.
If the evaluation board is not connected to the USB port when
the software is launched, a connectivity error is displayed
(see Figure 2). Simply connect the evaluation board to the
USB port of the PC and click Retry.

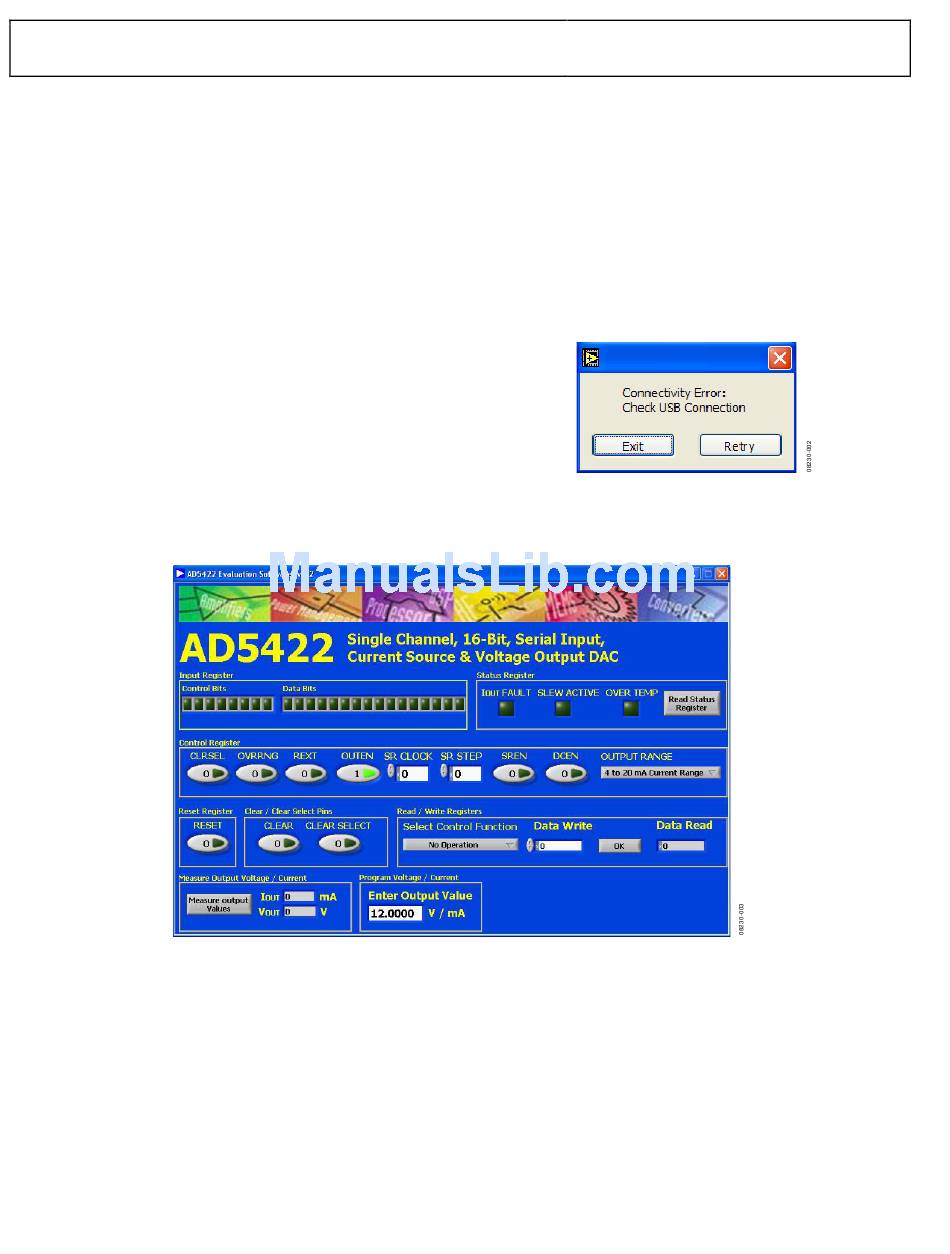

Figure 3. Main Window
Rev. C | Page 6 of 16
Evaluation Board User Guide
Evaluation Software. The main window of the
Figure 2. Connectivity Error Alert
