One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for Dual High Speed Operational Amplifiers
(16-Lead, 4 mm × 4 mm LFCSP with Dedicated Feedback Pin)
FEATURES
Enables quick breadboarding/prototyping
User-defined circuit configuration
Edge-mounted SMA connector provisions
Easy connection to test equipment and other circuits
Two independent circuits enhance flexibility
GENERAL DESCRIPTION
The EB-O16CP44-2Z is designed to aid in the evaluation of dual
high speed operational amplifiers. The EB-O16CP44-2Z is a bare
board (that is, there are no components soldered to the board) that
enables users to quickly prototype a variety of operational amplifier
circuits, which minimizes risk and reduces time to market. The
EB-O16CP44-2Z evaluation board supports any of the Analog
Devices, Inc., dual high speed operational amplifiers in 16-lead,
4 mm × 4 mm lead frame chip scale packages (LFCSP) with
dedicated feedback pins.
EVALUATION BOARD COMPONENT AND CIRCUIT SIDE DIAGRAMS
NOTES
1. THE EVALUATION BOARD SILKSCREEN PART NUMBER LABELING
ON YOUR BOARD MAY BE DIFFERENT FROM WHAT IS SHOWN HERE.

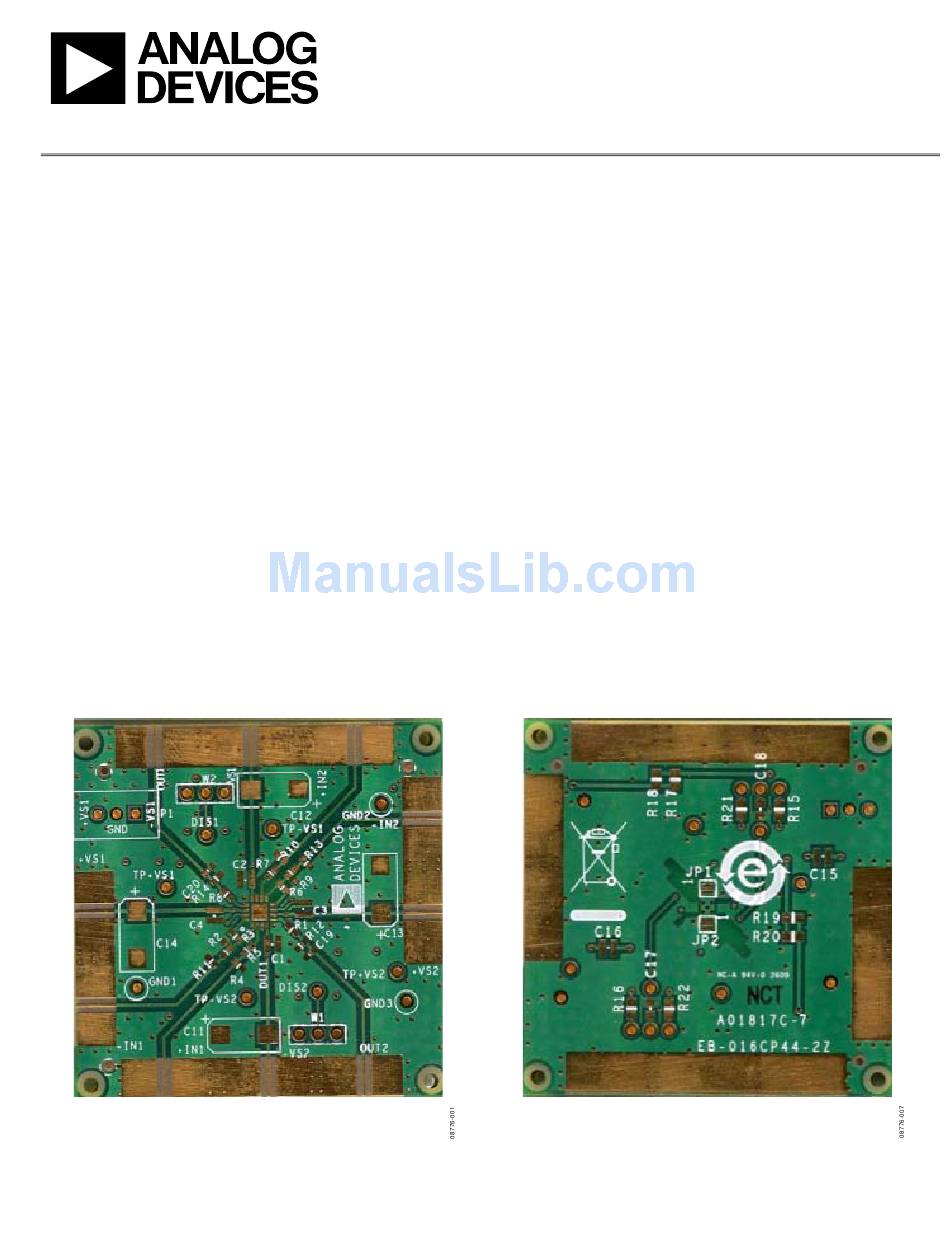

Figure 1. EB-O16CP44-2Z Component Side of PCB
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluation Board User Guide
Figure 1 and Figure 2 show the component side and the circuit
side of the evaluation board, respectively. Figure 3 shows the
evaluation board schematic.
The 4-layer evaluation board accepts edge-mounted SMA con-
nectors on both inputs and outputs, which allows efficient and
quick connection to test equipment or other circuitry.
The board ground plane, component placement, and power
supply bypassing are optimized for maximum circuit flexibility
and performance. The evaluation board uses a variety of SMT
component case sizes: 0402, 0508, 0603, and 7343.
Figure 4 and Figure 6 show the evaluation board assembly
drawings. The metal layout pattern for connecting the board to
the op amp and to the supporting circuitry is shown in Figure 5
and Figure 7.
NOTES
1. THE EVALUATION BOARD SILKSCREEN PART NUMBER LABELING
ON YOUR BOARD MAY BE DIFFERENT FROM WHAT IS SHOWN HERE.
Figure 2. EB-O16CP44-2Z Circuit Side of PCB
Rev. A | Page 1 of 8
UG-082
Advertisement
Table of Contents
Related Manuals for Analog Devices UG-082
Summary of Contents for Analog Devices UG-082
-
Page 1: Features
Evaluation Board User Guide UG-082 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluation Board for Dual High Speed Operational Amplifiers (16-Lead, 4 mm × 4 mm LFCSP with Dedicated Feedback Pin) -
Page 2: Table Of Contents
UG-082 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Schematic ............3 General Description ................. 1 Assembly Drawing and Board Layout ..........4 Evaluation Board Component and Circuit Side Diagrams ..1 Ordering Information ...............5 Revision History ................2 Bill of Materials ................5... -
Page 3: Evaluation Board Schematic
Evaluation Board User Guide UG-082 EVALUATION BOARD SCHEMATIC Figure 3. Universal Evaluation Board Schematic Rev. A | Page 3 of 8... -
Page 4: Assembly Drawing And Board Layout
UG-082 Evaluation Board User Guide ASSEMBLY DRAWING AND BOARD LAYOUT Figure 4. Board Assembly Drawing, Component Side Figure 6. Board Assembly Drawing, Circuit Side Figure 5. Board Layout Pattern, Component Side Figure 7. Board Layout Pattern, Circuit Side Rev. A | Page 4 of 8... -
Page 5: Added Table 1
Evaluation Board User Guide UG-082 ORDERING INFORMATION BILL OF MATERIALS Table 1. Quantity Reference Designator Description Package +IN1, +IN2, −IN1, −IN2, OUT1, OUT2 SMA/SMT SMA/SMT C1, C2, C3, C4, C15, C16 0.1 µF capacitor C0508 C17, C18 User-defined capacitor C0603... - Page 6 UG-082 Evaluation Board User Guide NOTES Rev. A | Page 6 of 8...
- Page 7 Evaluation Board User Guide UG-082 NOTES Rev. A | Page 7 of 8...
- Page 8 UG-082 Evaluation Board User Guide NOTES ESD Caution ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
