Evaluation board for a 20-bit, serial input, voltage output dac

Advertisement

Quick Links

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for a 20-Bit, Serial Input, Voltage Output DAC

FEATURES

Full-featured evaluation board for the AD5791
Link options
PC control in conjunction with Analog Devices, Inc., system
development platform
PC software for control

GENERAL DESCRIPTION

The EVAL-AD5791 is a full-featured evaluation board, designed
to allow the user to easily evaluate all features of the
voltage output, 20-bit DAC. The AD5791 pins are accessible at
on-board connectors for external connection. The board can be
controlled by two means, via the on-board connector (J6) or
via the system development platform connector (J3). The SDP
board allows the evaluation board to be controlled through
the USB port of a Windows® XP (SP2 or later) or Vista (32-bit)
based PC using the AD5791 evaluation software.
SYSTEM DEVELOPMENT
PLATFORM BOARD
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5791

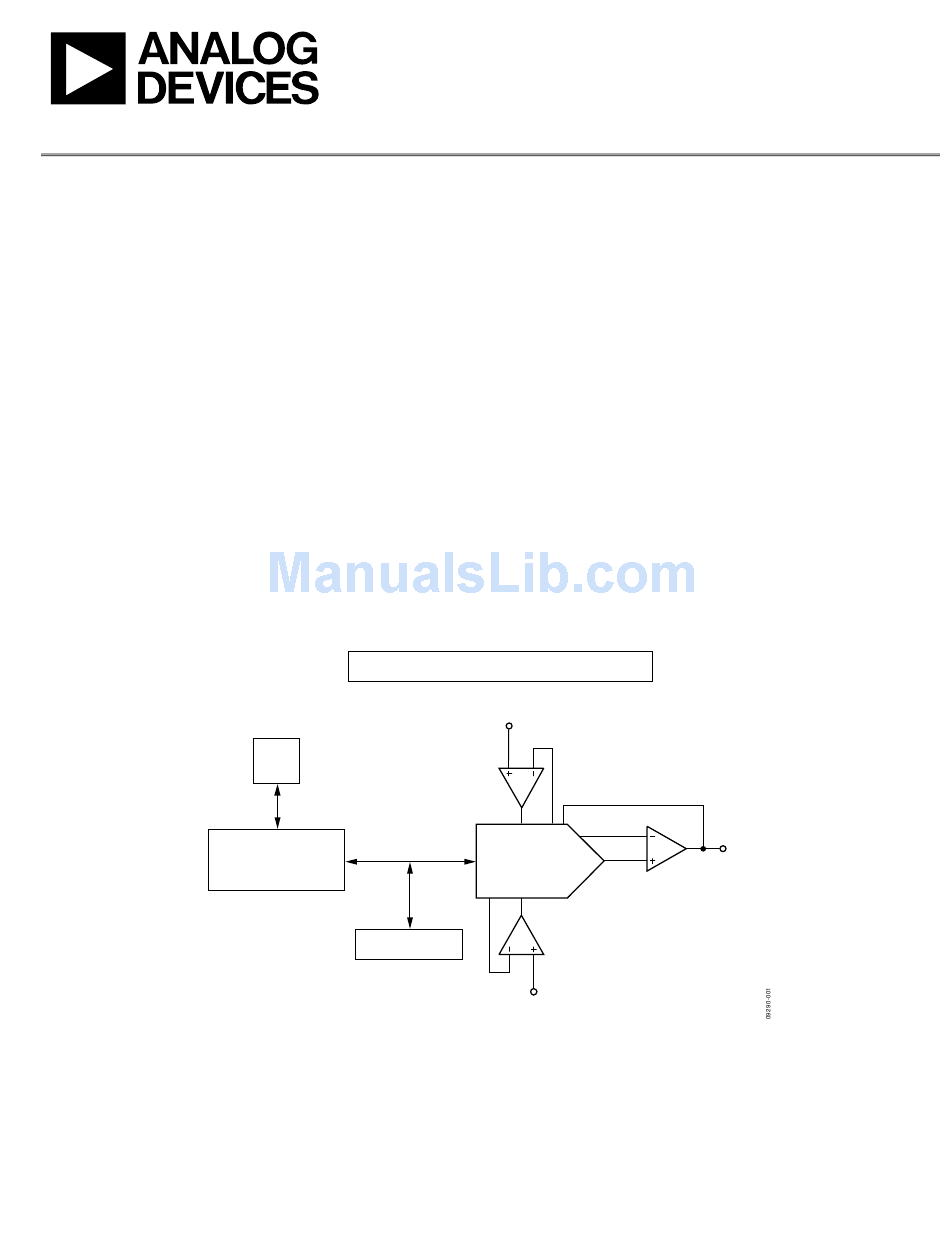

EVALUATION BOARD CONNECTION DIAGRAM

POWER SUPPLY INPUTS
PC
USB
PORT
PIN HEADER (J6)
Rev. 0 | Page 1 of 16

Evaluation Board User Guide

DEVICE DESCRIPTION

The AD5791 is a high precision, 20-bit digital-to-analog
converter (DAC), designed to meet the requirements of
precision control applications. The output range of the AD5791
is configured by two reference voltage inputs. The device is
specified to operate with a dual power supply of up to 33 V.
Complete specifications for the AD5791 are available in the
AD5791 data sheet available from Analog Devices and should
be consulted in conjunction with this user guide when using
the evaluation board.
POSITIVE
REFERENCE
AD5791
NEGATIVE
REFERENCE
Figure 1.
UG-185
V
OUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG-185 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices UG-185

  • Page 1: Features

    Full-featured evaluation board for the AD5791 Link options converter (DAC), designed to meet the requirements of PC control in conjunction with Analog Devices, Inc., system precision control applications. The output range of the AD5791 development platform is configured by two reference voltage inputs. The device is PC software for control specified to operate with a dual power supply of up to 33 V.
  • Page 2: Table Of Contents

    UG-185 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Software ...............5 General Description ................. 1 Software Installation ..............5 Device Description ................1 Software Operation ...............5 Evaluation Board Connection Diagram ........1 Main Window ................6 Revision History ................2 Evaluation Board Performance ............8...
  • Page 3: Evaluation Board Hardware

    Evaluation Board User Guide UG-185 EVALUATION BOARD HARDWARE Connector J6 Pin Descriptions POWER SUPPLIES The following external supplies must be provided: Table 2. Connector J6 Pin Configuration • 5 V between the V and DGND inputs for the digital supply of the AD5791. Alternatively, place Link 1 in Position A to power the digital circuitry from the USB Table 3.
  • Page 4 UG-185 Evaluation Board User Guide Table 5. Link Options Link No. Description This link selects the source of the digital power supply. Position A selects the source from the SDP board. Position B selects the source from Connector J2. This link selects the voltage source for the IOV pin.
  • Page 5: Evaluation Board Software

    CD. The software is compatible with Windows XP (SP2) and From the Start menu, select Analog Devices – AD5791 > Vista (32-bit). If the setup file does not run automatically, you AD5791 Evaluation Software. The main window of the can run setup.exe from the CD.
  • Page 6: Main Window

    UG-185 Evaluation Board User Guide MAIN WINDOW To begin the measurement, click the START button. The measurement can be halted at anytime by clicking the STOP The main window is divided into three tabs: Configure, button. When the measurement is completed, a dialog box Program Voltage, and Measure DAC Output.
  • Page 7 Evaluation Board User Guide UG-185 Figure 6. Measure DAC Output Window Rev. 0 | Page 7 of 16...
  • Page 8: Evaluation Board Performance

    UG-185 Evaluation Board User Guide EVALUATION BOARD PERFORMANCE The following data demonstrates the measured linearity performance of the AD5791 evaluation board circuit. The board is powered from = +15 V, V = −15 V, and V = +5 V. –0.2 –0.4...
  • Page 9: Evaluation Board Schematics And Artwork

    Evaluation Board User Guide UG-185 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 9. Schematic of the AD5791 Circuitry Rev. 0 | Page 9 of 16...
  • Page 10 UG-185 Evaluation Board User Guide Figure 10. Schematic of the Voltage Reference Scaling Circuitry Rev. 0 | Page 10 of 16...
  • Page 11 Evaluation Board User Guide UG-185 Figure 11. Schematic of the SDP Board Connector Rev. 0 | Page 11 of 16...
  • Page 12 UG-185 Evaluation Board User Guide Figure 12. Component Placement Schematic Figure 13. Top PCB Layer Schematic Rev. 0 | Page 12 of 16...
  • Page 13 Evaluation Board User Guide UG-185 Figure 14. Inner First PCB Layer Schematic Figure 15. Inner Second PCB Layer Schematic Rev. 0 | Page 13 of 16...
  • Page 14 UG-185 Evaluation Board User Guide Figure 16. Bottom PCB Layer Schematic Rev. 0 | Page 14 of 16...
  • Page 15: Ordering Information

    Evaluation Board User Guide UG-185 ORDERING INFORMATION BILL OF MATERIALS Table 6. Reference Designator Part Description Part Number Stock Code C1, C2, C9, C11, C12, Capacitor, 10 μF, 16 V, 10%, Case B TAJB106K016R FEC 498737 C16, C17, C20, C41, C42,...
  • Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
