Removing modules

The MAC III Profile is modular in design. A
full procedure for removing and servicing
effect modules is included in the Martin™
service package available for the MAC III
Profile.
Important! The zoom/focus car and animation wheel
must be moved to the positions described
below before modules can be removed.

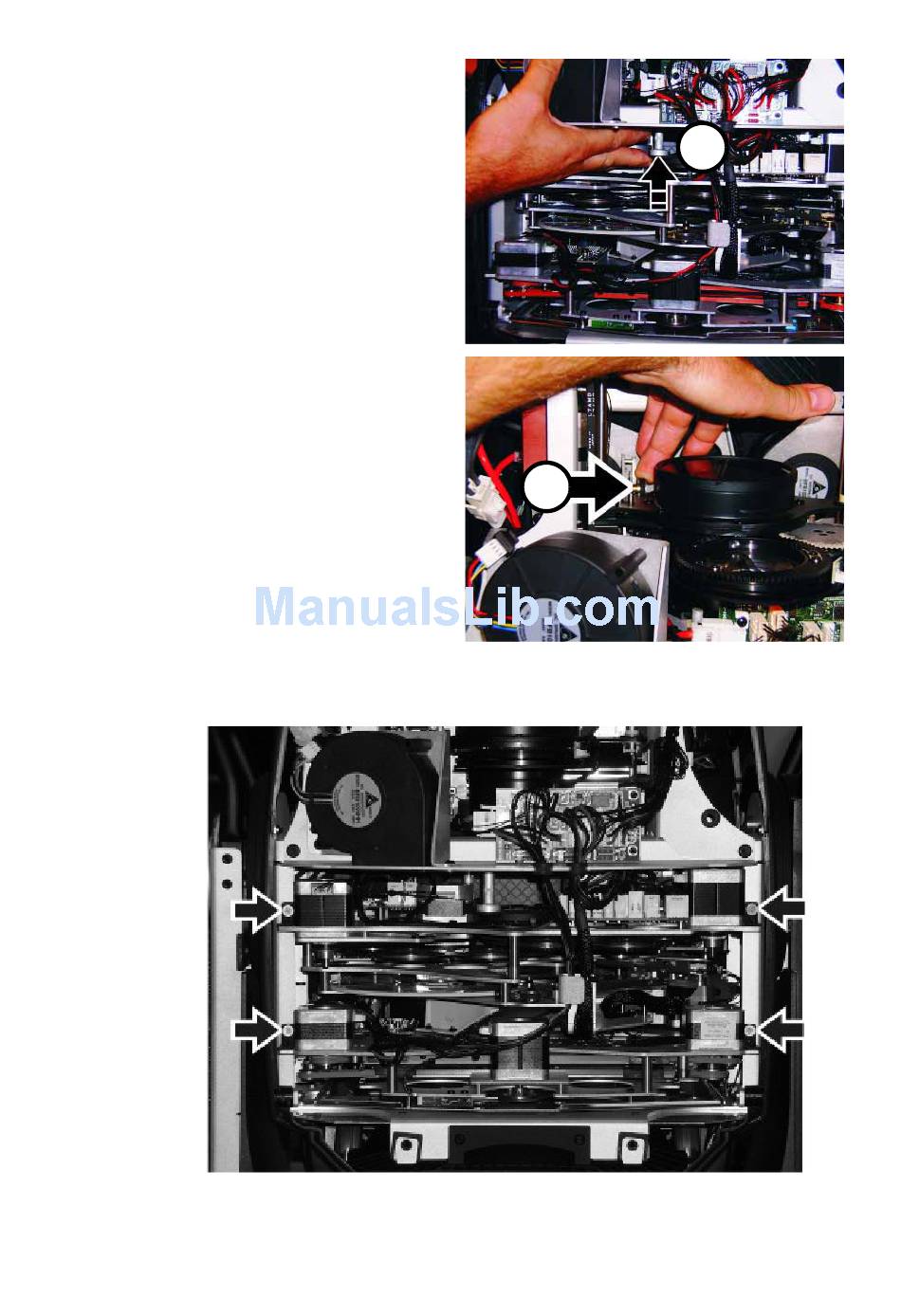

1. See Figure 26. Move the zoom/focus car
as far as possible towards the front lens
by first pushing on one of its sliders (A),
then holding it in the fully forward position
by pressing on one of its drive belt pulleys
(B).
2. Move the gobo animation wheel as far as
possible up towards the top of the head
by pulling on its drive car as shown in
Figure 24 on page 44. The animation
wheel is glass. Do not apply pressure to
it, or you may cause damage that is not
covered by the product warranty.
3. Modules are released for removal by
disconnecting their multi-connectors and
removing their retaining screws (arrowed
in Figure 27). Take great care not to
damage wiring during module removal or
re-installation.
B
Figure 26: Moving the zoom/focus car fully forward
Figure 27: Module retaining screws
Service and maintenance
A
