Gobos - Martin MAC III Profile User Manual

Gobos

The two gobo wheels in the MAC III Profile each provide 5 rotating gobos plus an open position. The
standard gobos are shown in the correct order in Figure 15 on page 27.
All gobos are interchangeable, but replacement gobos must match the dimensions, construction and quality
of the gobos supplied as standard (see under "Specifications" on page 63).
Handling, installing and storing the gobos in the MAC III Profile requires special care. See "Gobos in the
MAC III Profile" on page 41 for details.
Rotating gobo wheel 1
1
Rotating gobo wheel 2
1
Gobo wheel 1
1. 4-D cone .......................... P/N 43042039
2. 5 circles in line ................. P/N 43042040
3. Snow storm...................... P/N 43042050
4. Spikes .............................. P/N 43042042
5. Pin wheel ......................... P/N 43042043
2 3
2 3

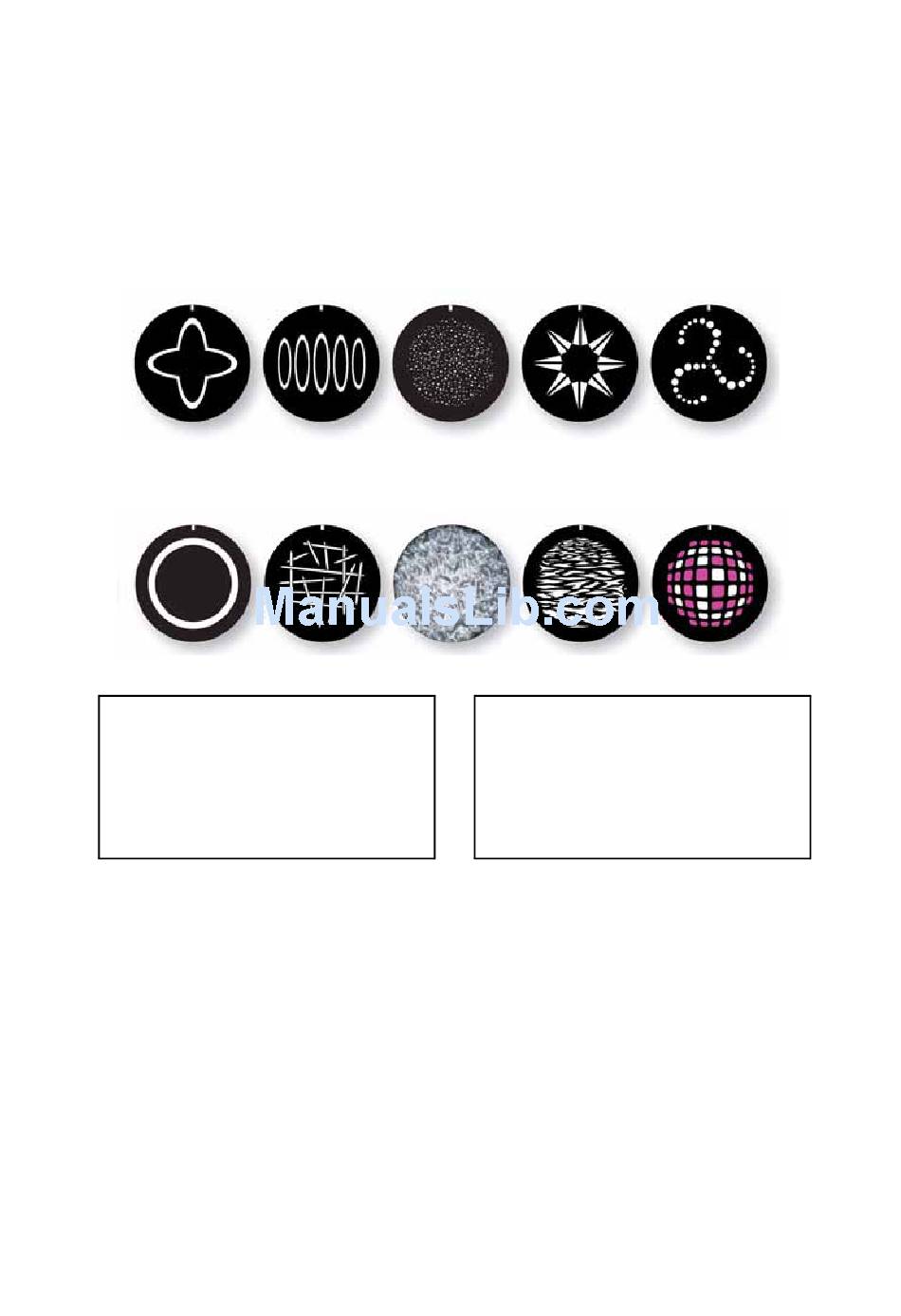

Figure 15: Rotating gobos in gobo wheels 1 and 2
Optical configuration
4
4
Gobo wheel 2
1. Lasercone single.............. P/N 43042053
2. Mikado ............................. P/N 43042045
3. Limbo/Crystal (in holder).. P/N 62325128
4. Cloud flames.................... P/N 43042046
5. Gridlock (in holder) .......... P/N 62325145
5
5
