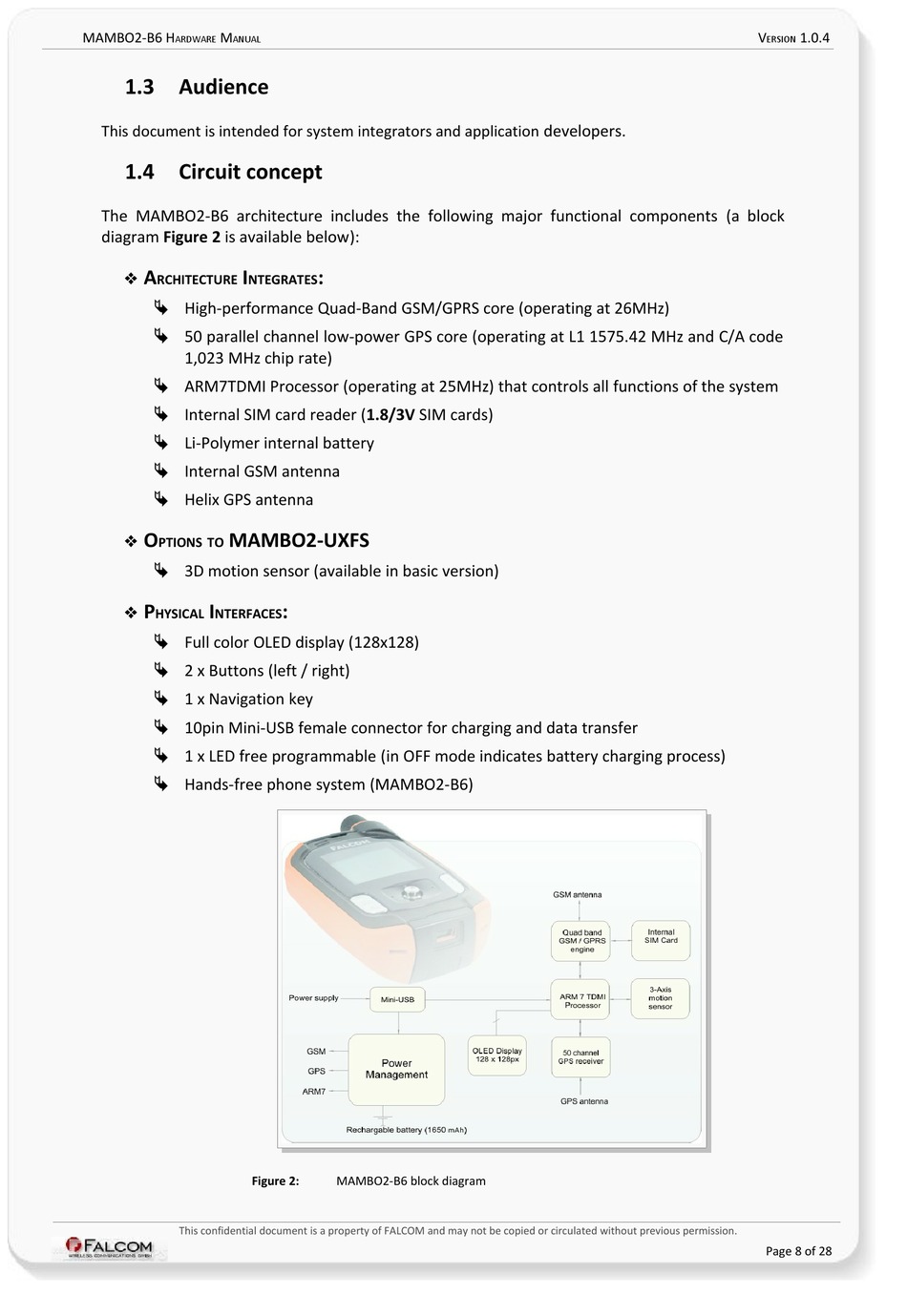

MAMBO2-B6 H
M
ARDWARE
ANUAL
1.3
Audience
This document is intended for system integrators and application developers.
1.4
Circuit concept
The MAMBO2-B6 architecture includes the following major functional components (a block
diagram Figure 2 is available below):
A
I
RCHITECTURE
NTEGRATES
High-performance Quad-Band GSM/GPRS core (operating at 26MHz)
50 parallel channel low-power GPS core (operating at L1 1575.42 MHz and C/A code
1,023 MHz chip rate)
ARM7TDMI Processor (operating at 25MHz) that controls all functions of the system
Internal SIM card reader (1.8/3V SIM cards)
Li-Polymer internal battery
Internal GSM antenna
Helix GPS antenna
O
MAMBO2-UXFS
PTIONS TO
3D motion sensor (available in basic version)
P
I
HYSICAL
NTERFACES
Full color OLED display (128x128)
2 x Buttons (left / right)
1 x Navigation key
10pin Mini-USB female connector for charging and data transfer
1 x LED free programmable (in OFF mode indicates battery charging process)
Hands-free phone system (MAMBO2-B6)
Figure 2:
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
:
:
MAMBO2-B6 block diagram
V
1.0.4
ERSION
Page 8 of 28
