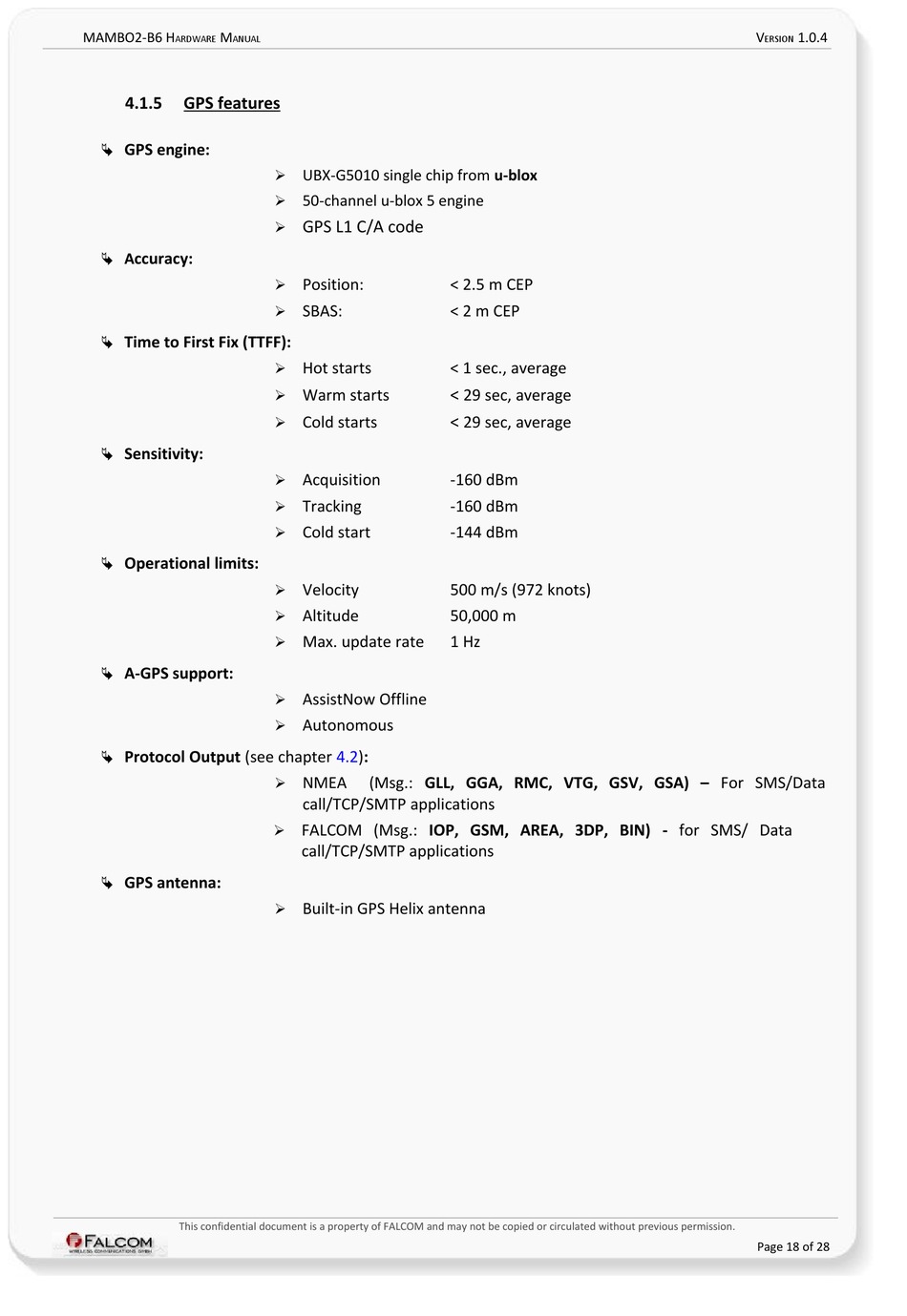

4.1.5

GPS features

GPS engine:

A ccuracy:

Time to First Fix (TTFF):

Sensitivity:

Operational limits:

A-GPS support:

Protocol Output (see chapter 4.2):

GPS antenna:

This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
UBX-G5010 single chip from u-blox
➢
50-channel u-blox 5 engine
➢
GPS L1 C/A code
➢
Position:
➢
SBAS:
➢
Hot starts
➢
Warm starts
➢
Cold starts
➢
Acquisition
➢
Tracking
➢
Cold start
➢
Velocity
➢
Altitude
➢
Max. update rate
➢
AssistNow Offline
➢
Autonomous
➢
NMEA (Msg.: GLL, GGA, RMC, VTG, GSV, GSA) – For SMS/Data
➢
call/TCP/SMTP applications
FALCOM (Msg.: IOP, GSM, AREA, 3DP, BIN) - for SMS/ Data
➢
call/TCP/SMTP applications
Built-in GPS Helix antenna
➢
< 2.5 m CEP
< 2 m CEP
< 1 sec., average
< 29 sec, average
< 29 sec, average
-160 dBm
-160 dBm
-144 dBm
500 m/s (972 knots)
50,000 m
1 Hz
