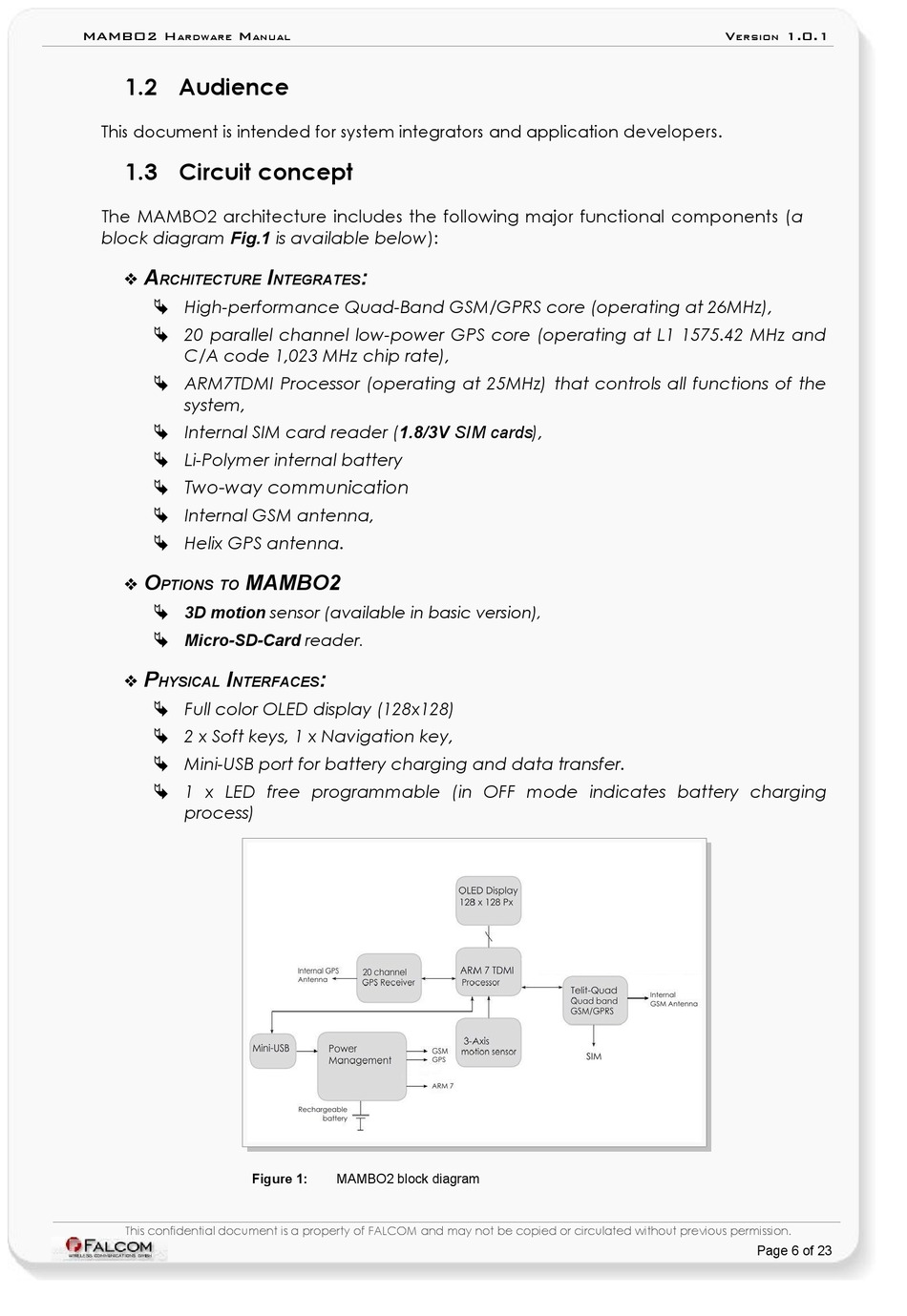

1.2 Audience

This document is intended for system integrators and application developers.

1.3 Circuit concept

The MAMBO2 architecture includes the following major functional components (a
block diagram Fig.1 is available below):
 A
RCHITECTURE
 High-performance Quad-Band GSM/GPRS core (operating at 26MHz),
 20 parallel channel low-power GPS core (operating at L1 1575.42 MHz and
C/A code 1,023 MHz chip rate),
 ARM7TDMI Processor (operating at 25MHz) that controls all functions of the
system,
 Internal SIM card reader (1.8/3V SIM cards),
 Li-Polymer internal battery
 Two-way communication
 Internal GSM antenna,
 Helix GPS antenna.
 O MAMBO2
PTIONS TO
3D motion sensor (available in basic version),

Micro-SD-Card reader.

 P I
HYSICAL NTERFACES
 Full color OLED display (128x128)
 2 x Soft keys, 1 x Navigation key,
 Mini-USB port for battery charging and data transfer.
 1 x LED free programmable (in OFF mode indicates battery charging
process)
Figure 1:
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
I :
NTEGRATES
:
MAMBO2 block diagram
