Default Class

QCL #

Tag Priority

Queuing Mode
 Queue Weighted
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.

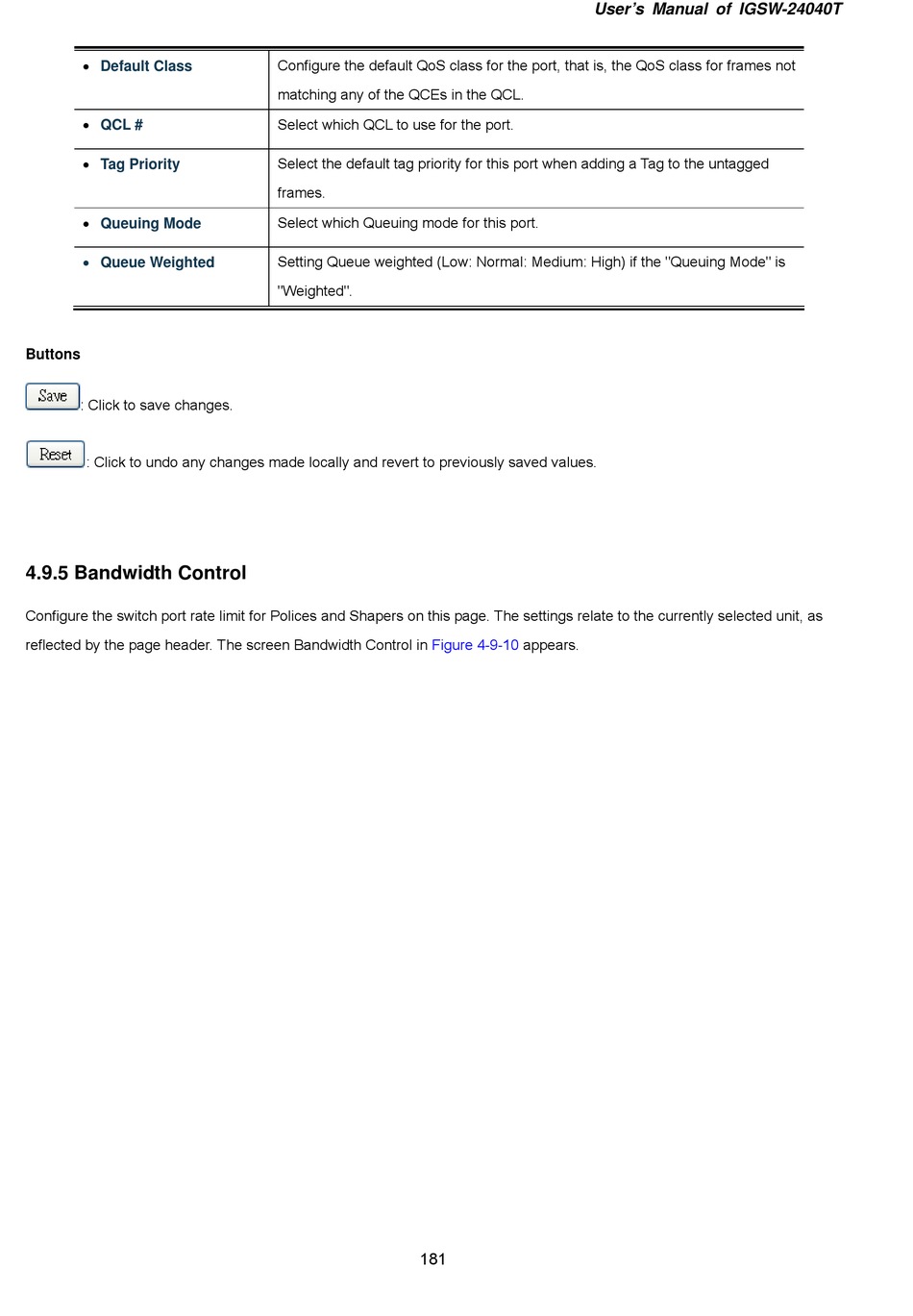

4.9.5 Bandwidth Control

Configure the switch port rate limit for Polices and Shapers on this page. The settings relate to the currently selected unit, as
reflected by the page header. The screen Bandwidth Control in
Configure the default QoS class for the port, that is, the QoS class for frames not
matching any of the QCEs in the QCL.
Select which QCL to use for the port.
Select the default tag priority for this port when adding a Tag to the untagged
frames.
Select which Queuing mode for this port.
Setting Queue weighted (Low: Normal: Medium: High) if the "Queuing Mode" is
"Weighted".
Figure 4-9-10
181
User's Manual of IGSW-24040T
appears.
