LOCAL BUS INTERFACE
Bus States:
ALWAYS
READY# ASSERTED·
REQUEST PENDING
Tl-first clock of a non-pipe lined bus cycle (80386 drives new address and asserts ADS")
T2-subsequent clocks of a bus cycle when NA" has not been sampled asserted in the current bus cycle
Ti- idle state
The fastest bus cycle consists of two states: Tl and T2.
READY# NEGATED.
NA# NEGATED
231630-17

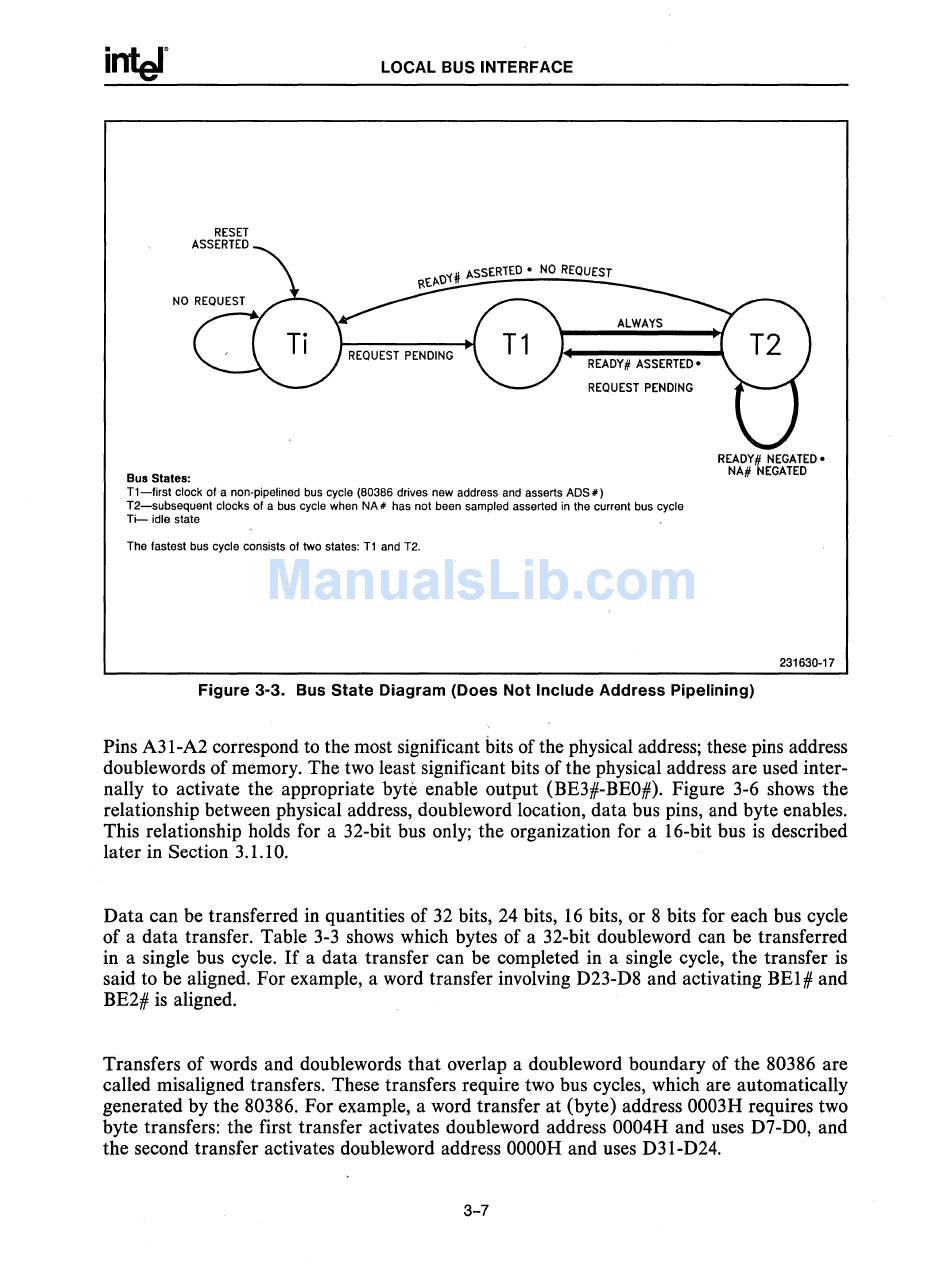

Figure 3-3. Bus State Diagram (Does Not Include Address Pipelining)
Pins A31-A2 correspond to the most significant bits of the physical address; these pins address
doublewords of memory. The two least significant bits of the physical address are used inter-
nally to activate the appropriate byte enable output (BE3#-BEO#). Figure 3-6 shows the
relationship between physical address, doubleword location, data bus pins, and byte enables.
This relationship holds for a 32-bit bus only; the organization for a 16-bit bus is described
later in Section 3.1.1 O.
Data can be transferred in quantities of 32 bits, 24 bits, 16 bits, or 8 bits for each bus cycle
of a data transfer. Table 3-3 shows which bytes of a 32-bit doubleword can be transferred
in a single bus cycle. If a data transfer can be completed in a single cycle, the transfer is
said to be aligned. For example, a word transfer involving D23-D8 and activating BE1# and
BE2# is aligned.
Transfers of words and doublewords that overlap a doubleword boundary of the 80386 are
called misaligned transfers. These transfers require two bus cycles, which are automatically
generated by the 80386. For example, a word transfer at (byte) address 0003H requires two
byte transfers: the first transfer activates doubleword address 0004H and uses D7-DO, and
the second transfer activates doubleword address OOOOH and uses D31-D24.
3-7
