ADTRAN BLUESOCKET 2135 Quick Start Manual page 6

•
•
•
•
•

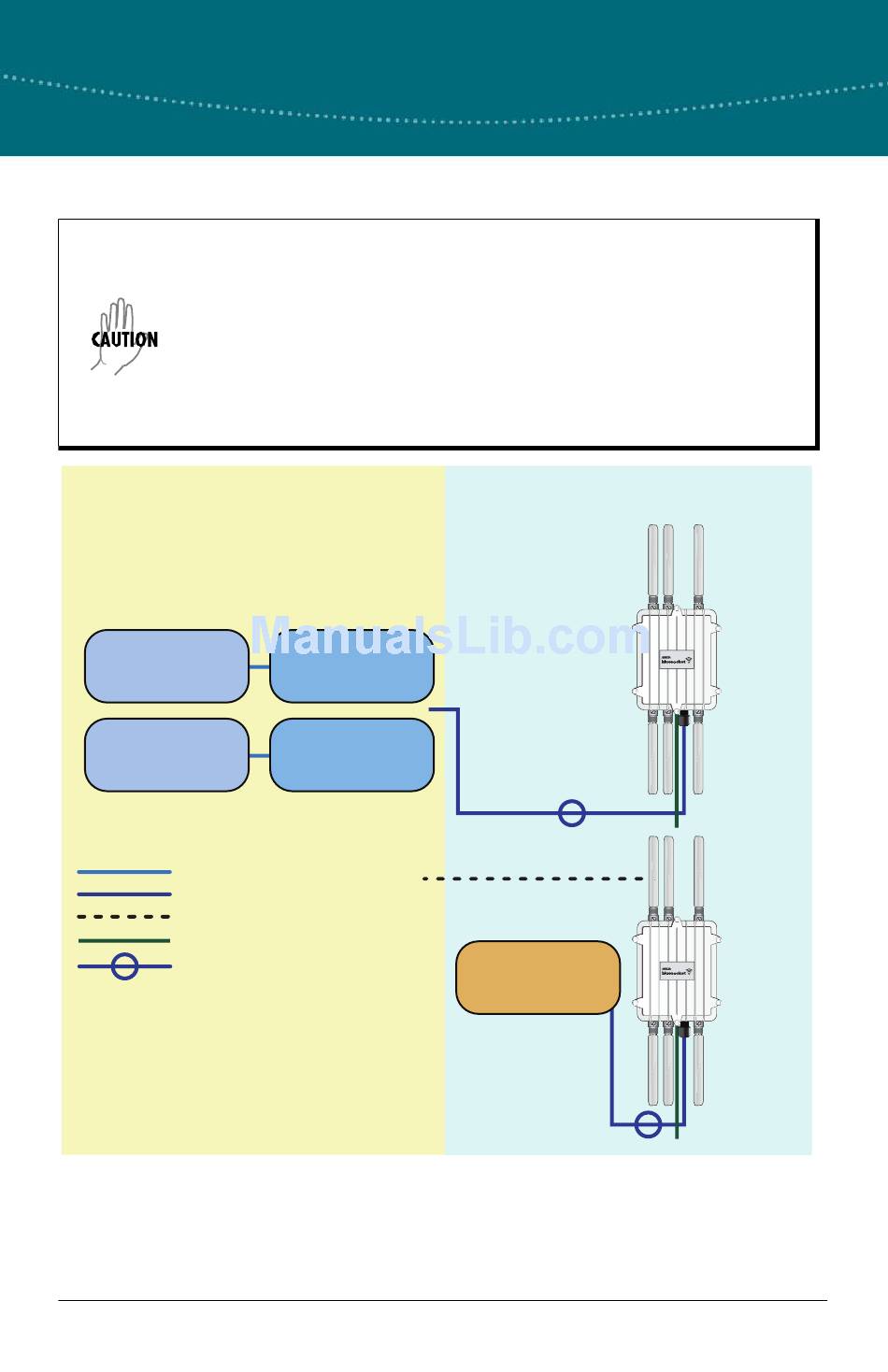

INDOORS
PoE Switch
Non-PoE Switch
Ethernet Cable
Outdoor Shielded Ethernet Cable
Mesh Link
Ground Cable
Drip Loop
ADTRAN recommends forming a 3 to 5-inch drip loop
on outdoor cables where water could run along the
cable and enter the BSAP 2135, PoE injector, or
building. If the cables are oriented so that water
cannot possibly enter, drip loops are not necessary.
6
In all cases the BSAP 2135 should be connected to Earth Ground.
In all cases 802.3at PoE injectors with GR-1089-Core Criteria B surge
protection should be used.
For outdoor applications, use only shielded or outdoor-rated Ethernet
cable run inside conduit to protect it from damage from extreme
weather conditions and temperatures.
Consult a certified electrician to ensure that all grounding and cabling
is installed in compliance with local electrical code.
Any damage or malfunction resulting from exposure of this unit to
lightning or transient voltage events will void the user's warranty.
NetVanta PoE
Protector/Injector
(1702595F15)
OR
NetVanta PoE
Protector/Injector
(1702595F15)
with Optional AC Power
Adapter (1700501F1)
OUTDOORS
PowerDsine PD-9001GO
Outdoor 802.3at PoE Injector
or Equivalent with
GR-1089-Core Criteria B
Surge Protection
Support - Phone: 888-423-8726
BSAP 2135
with Built-in
Ethernet and
Antenna Surge
Protection
To Earth Ground
BSAP 2135
with Built-in
Ethernet and
Antenna Surge
Protection
To Earth Ground
